Features:
Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 316 Stainless Steel
Seat EPDM
Pressure Range 0.25 to 16 BAR
Media Potable Water

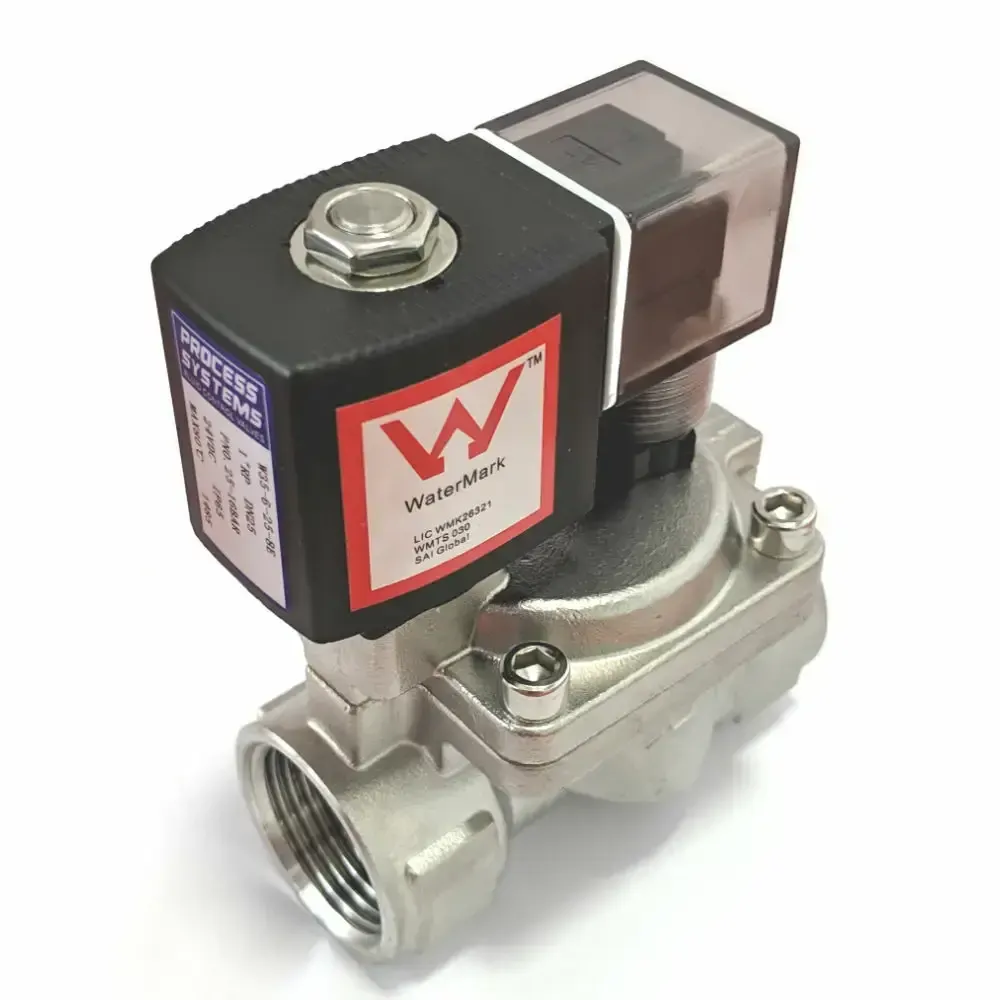

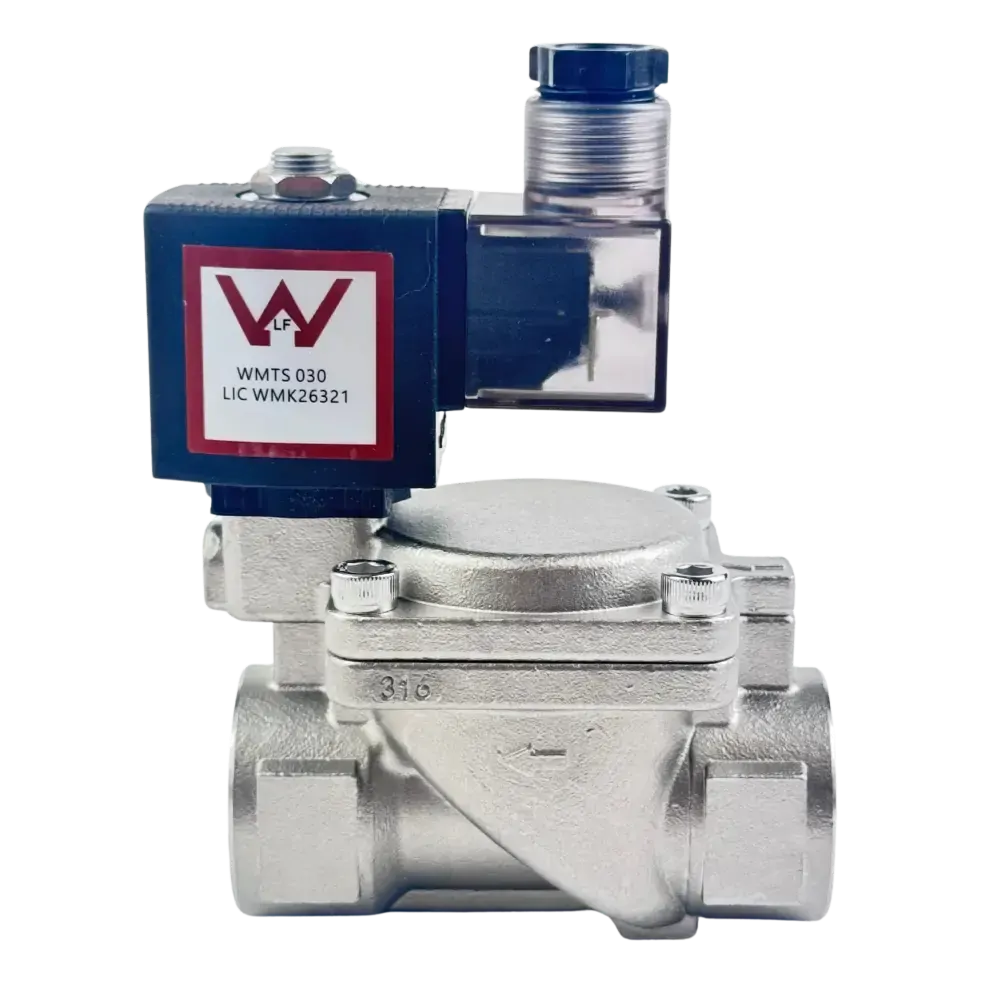

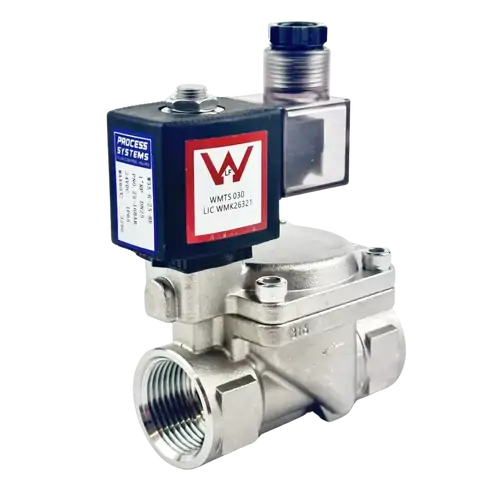

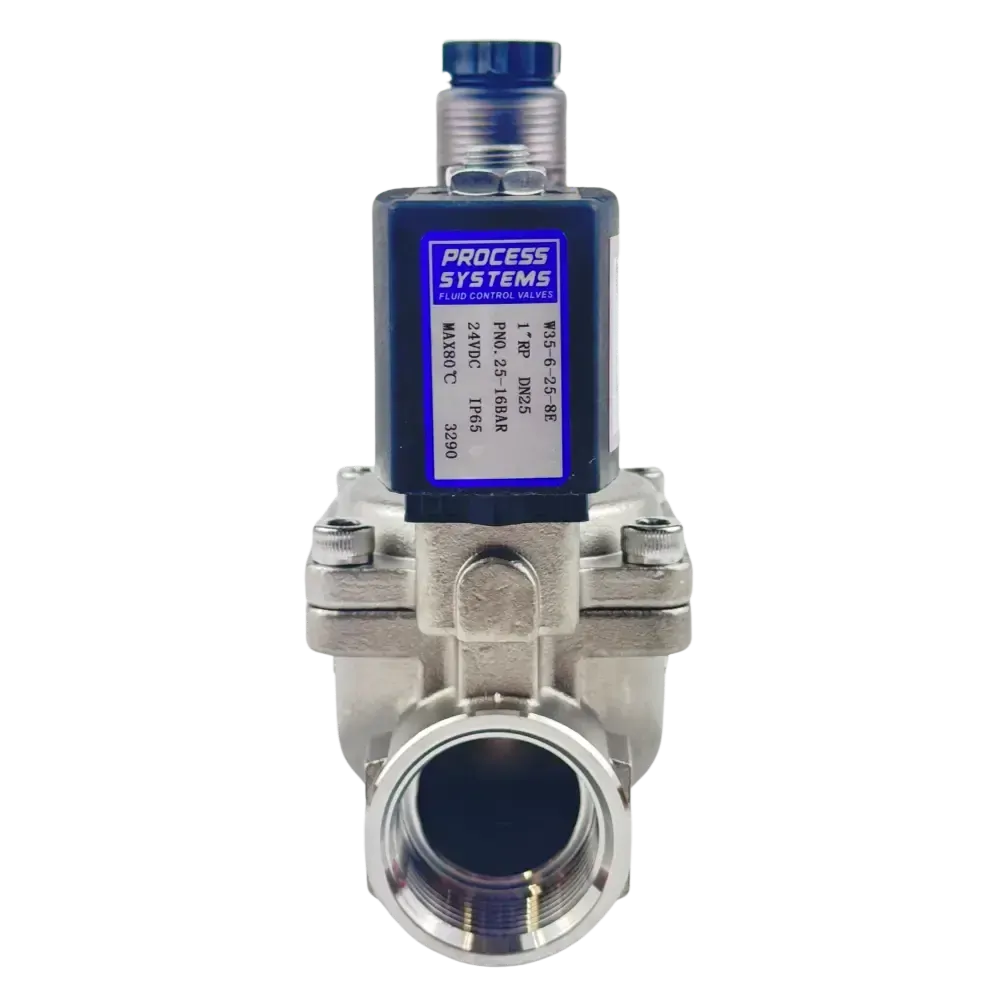

A 316 Stainless Steel Normally Closed (power to open) Watermark approved solenoid valve. Great for potable water or any application where watermark approval is required (mains water in Australia). Comes with IP65 weather proof LED illuminated din plug and coil. Has a low pressure differential required making it suitable for applications such as rain water switch over and has a soft close design. Watermark Approval Licence Number WMK 26321 approved to WMTS 030:2016 - Solenoid Valves.
Model | Port Size (BSP) | Orifice ømm | CV | Pressure (BAR) | Media Temp | Repair Kit | Coil Specifications |
---|---|---|---|---|---|---|---|
W35-4-14-*E | 1/2 | 14 | 5 | 0.25 to 16 BAR | -10°C to 80°C | RK-W35-4-E | SC-N14 16 Watts 27 Volta Amps Class H Insulation 100% Ed |
W35-5-20-*E | 3/4 | 20 | 10 | 0.25 to 16 BAR | -10°C to 80°C | RK-W35-6-E | |
W35-6-25-*E | 1 | 25 | 11 | 0.25 to 16 BAR | -10°C to 80°C | RK-W35-6-E | |
W35-7-40-*E | 1 ¼ | 40 | 28 | 0.7 to 16 BAR | -10°C to 80°C | RK-W35-8-E | SC-N14.5 18 Watts 25 Volt Amps Class H Insulation 100% Ed |
W35-8-40-*E | 1 ½ | 40 | 34 | 0.7 to 16 BAR | -10°C to 80°C | RK-W35-8-E | |
W35-9-50-*E | 2 | 50 | 50 | 0.7 to 16 BAR | -10°C to 80°C | RK-W35-9-E |
*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC
For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

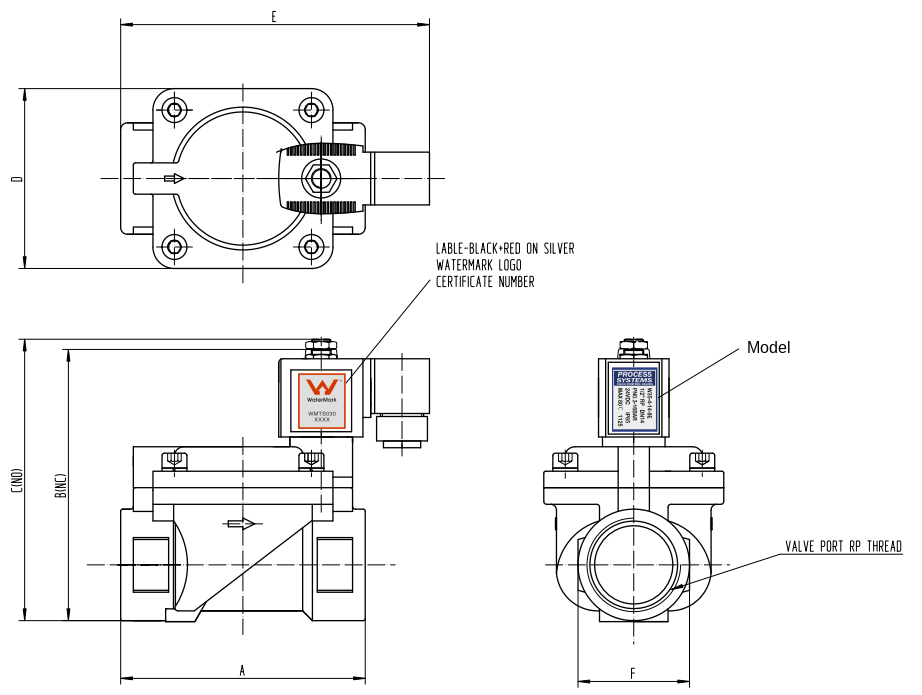

Moddel | Port Size (Rp) | Orrifice | A | B | D | E | F |
---|---|---|---|---|---|---|---|
W35-4-14-*E | 1/2" | 14 | 65 | 102.5 | 40 | 104 | 27 |
W35-5-20-*E | 3/4" | 20 | 92 | 120 | 60 | 129 | 40 |
W35-6-25-*E | 1" | 25 | 92 | 120 | 60 | 129 | 40 |
W35-7-40-*E | 1 ¼" | 40 | 125 | 142.5 | 92 | 158 | 57 |
W35-8-40-*E | 1 ½" | 40 | 125 | 142.5 | 92 | 158 | 57 |
W35-9-50-*E | 2" | 50 | 150 | 160 | 108.5 | 179 | 70 |
All dimensions in mm unless shown otherwise.

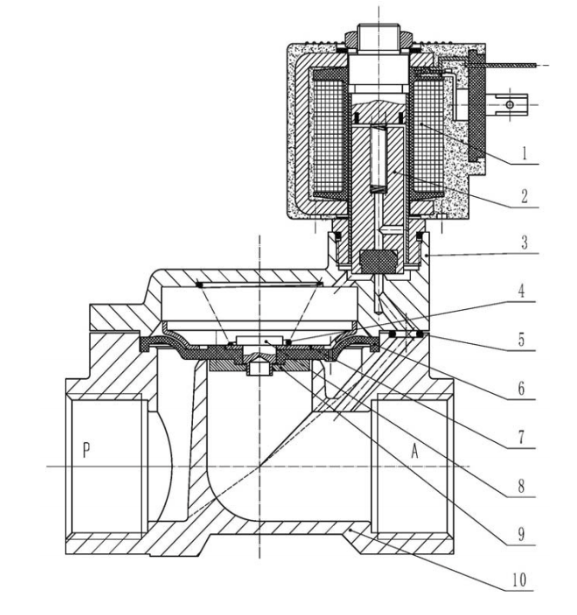

Number | Item | Material |
---|---|---|
1 | Coil | Epoxy |
2 | Armature | Martensitic stainless steel |
3 | Valve Cover | 316 Stainless Steel |
4 | Spring | 304 Stainless STeel |
5 | 0-Ring | EPDM |
6 | Diaphragm | EPDM |
7,8,9 | Diaphragm Support | Stainless Steel |
10 | Valve Body | 316 Stainless Steel |
