Features:
Sheet Size 1000mm x 1000mm
Thickness 1.5mm & 3.0mm
Temperature Limit -50°C ~ 200°C
Maximum Pressure 50 Bar
pH Range 2 - 14

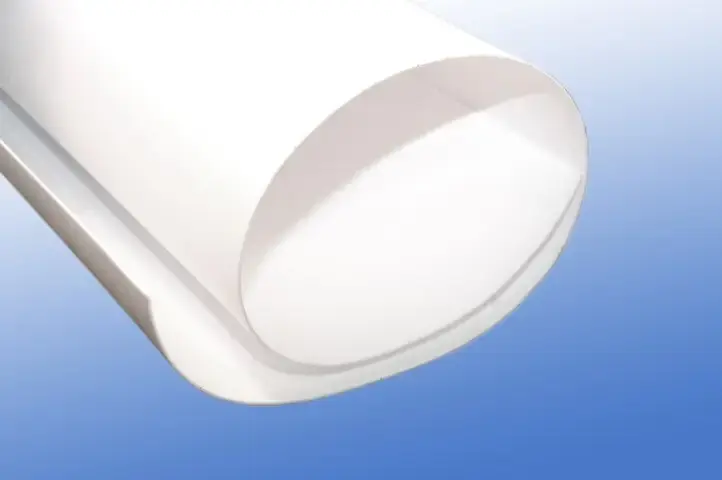

Virgin PTFE (Teflon) skived sheeting made from 100% virgin PTFE resin. This is a great all round material as it has excellent chemical corrosion resistance, low coefficient of friction and great isulation. Usually used to make gaskets, liners and seals.
Item | Test Method | Value |
---|---|---|
Density | ASTM D792 | 2.14~2.30 g/cm³ |
Melt Point | 327°C | |
Linear Expansion Coefficient | ASTM D696/23~60°C | 10 x 10^-5 |
Tensile Strength | ASTM D638/23°C | 14~34 MPa |
Elongation at Break | ASTM D638/23°C | 200~400% |
Friction Factor | 0.1 | |
Water Absorption | ASTM D570 | 0.001~0.005% |
Volume Resistivity | ASTM D257 (50% RH23°C) | >10^18 Ω-cm |
Dielectric Constant | ASTM D150/10-10⁶Hz | 2.1 Ωxcm |
Flame Resistivity | UL-94 | V-0 |
Oxygen Index | ASTM D2863 | >95 |
