SKU: BLPE

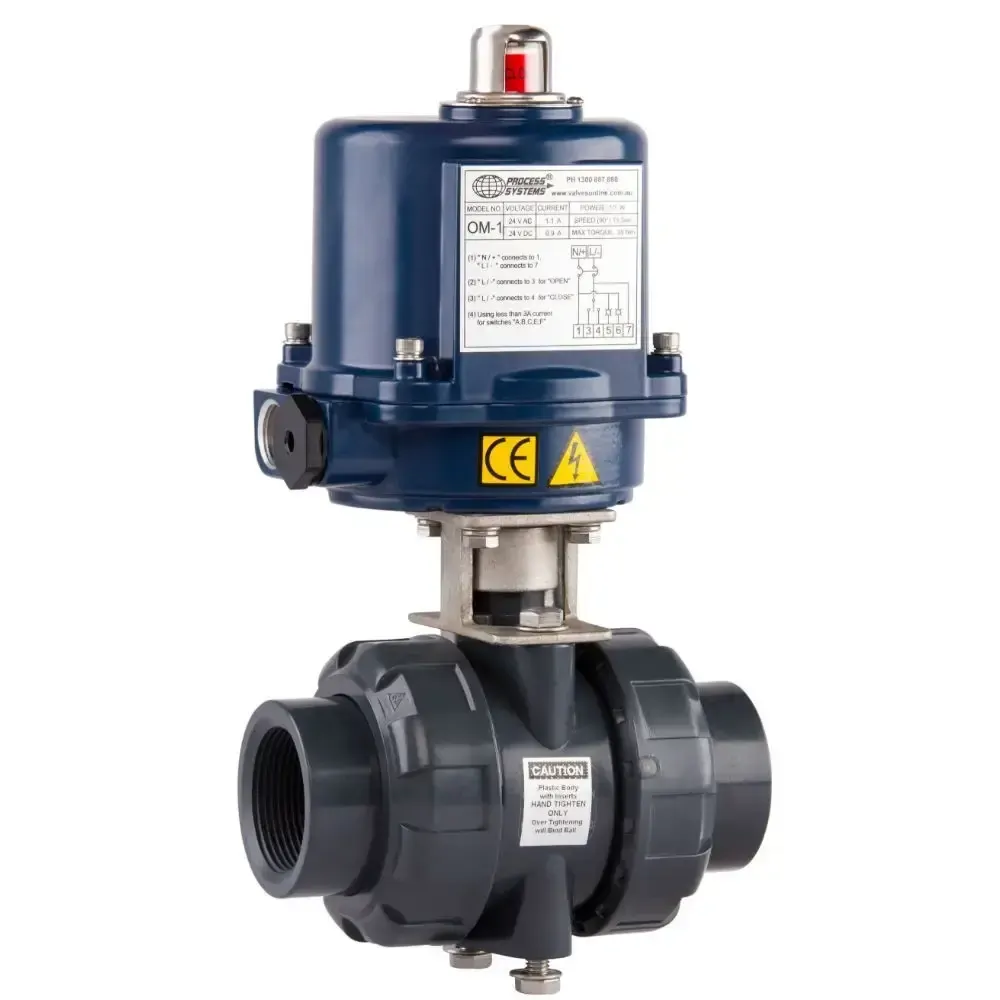

UV Stabalised PVC Electric Ball Valve

From $319.00

Inc GST
Sold Out
Make an Enquiry

2 way UV stabilised PVC ball valve with an electric actuator (drive open, drive close). Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. IP67 electric actuator with visual indicator and extra limit switches. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration. Available with BSP threaded (Threads conform to ISO 7.1 Sealing Threads.) or Solvent Weld connections (ANSI Standard designed to fit Schdule 40 & 80 pipe).

Model Size DN(mm) Actuator Media Pressure Media Temperature
BLP4B-E*-E 1/2 15 0M-1 -1 to 10 Bar 0°C to 60°C
BLP5B-E*-E 3/4 20 0M-1 -1 to 10 Bar 0°C to 60°C
BLP6B-E*-E 1 25 0M-1 -1 to 10 Bar 0°C to 60°C
BLP7B-E*-E 1 ¼ 32 0M-1 -1 to 10 Bar 0°C to 60°C
BLP8B-E*-E 1 ½ 40 0M-1 -1 to 10 Bar 0°C to 60°C
BLP9B-E*-E 2 50 0M-1 -1 to 10 Bar 0°C to 60°C
BLP10B-E*-E 2 ½ 65 0M-A -1 to 10 Bar 0°C to 60°C
BLP11B-E*-E 3 80 0M-A -1 to 10 Bar 0°C to 60°C
BLP12B-E*-E 4 100 0M-A -1 to 10 Bar 0°C to 60°C

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For Solvent Weld Ends change the 'B' to an 'S'.

Electrically Actuated PVC Ball Valve

Model DN L H A
BLP4B-E*-E 15 110 238 108
BLP5B-E*-E 20 115 247 108
BLP6B-E*-E 25 130 258 108
BLP7B-E*-E 32 142 280 108
BLP8B-E*-E 40 160 293 108
BLP9B-E*-E 50 173 325 108
BLP10B-E*-E 65 250 400 108
BLP11B-E*-E 80 270 420 108
BLP12B-E*-E 100 310 480 108

Electrically Actuated PVC Ball Valve

Number Item Material
1 Shaft UPVC
2 Ball UPVC
3 Body UPVC
4 Connection UPVC
5 Union UPVC
6 Seat PTFE
7 Double Stem Oring EPDM or Viton
8 Oring EPDM or Viton
9 Oring EPDM or Viton
10 Retainer UPVC
11 Mount UPVC
13 Mounting Bracket 316 Stainless Steel
15 Electric Actuator Powder Coated Aluminium

Size 1/2" to 4" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Electric

BLPE

UV Stabalised PVC Electric Ball Valve

Features:

Size 1/2" to 4" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Electric

Description:

2 way UV stabilised PVC ball valve with an electric actuator (drive open, drive close). Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. IP67 electric actuator with visual indicator and extra limit switches. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration. Available with BSP threaded (Threads conform to ISO 7.1 Sealing Threads.) or Solvent Weld connections (ANSI Standard designed to fit Schdule 40 & 80 pipe).

Model Size DN(mm) Actuator Media Pressure Media Temperature
BLP4B-E*-E 1/2 15 0M-1 -1 to 10 Bar 0°C to 60°C
BLP5B-E*-E 3/4 20 0M-1 -1 to 10 Bar 0°C to 60°C
BLP6B-E*-E 1 25 0M-1 -1 to 10 Bar 0°C to 60°C
BLP7B-E*-E 1 ¼ 32 0M-1 -1 to 10 Bar 0°C to 60°C
BLP8B-E*-E 1 ½ 40 0M-1 -1 to 10 Bar 0°C to 60°C
BLP9B-E*-E 2 50 0M-1 -1 to 10 Bar 0°C to 60°C
BLP10B-E*-E 2 ½ 65 0M-A -1 to 10 Bar 0°C to 60°C
BLP11B-E*-E 3 80 0M-A -1 to 10 Bar 0°C to 60°C
BLP12B-E*-E 4 100 0M-A -1 to 10 Bar 0°C to 60°C

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For Solvent Weld Ends change the 'B' to an 'S'.

.

UV Stabalised PVC Electric Ball Valve

BLPE

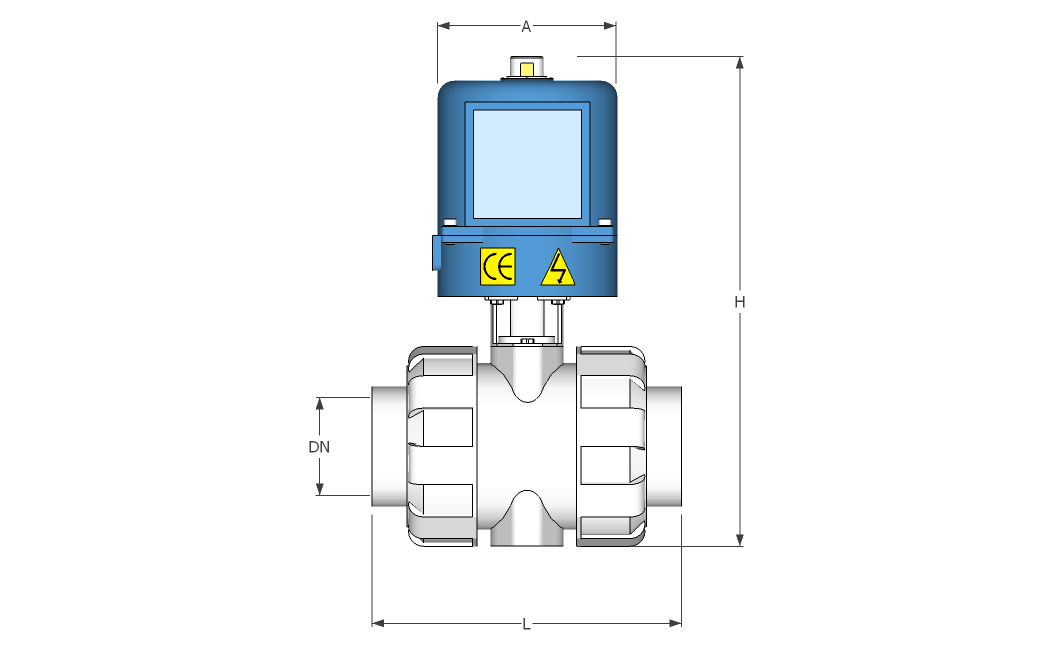

Dimensions:

Electrically Actuated PVC Ball Valve

Model DN L H A
BLP4B-E*-E 15 110 238 108
BLP5B-E*-E 20 115 247 108
BLP6B-E*-E 25 130 258 108
BLP7B-E*-E 32 142 280 108
BLP8B-E*-E 40 160 293 108
BLP9B-E*-E 50 173 325 108
BLP10B-E*-E 65 250 400 108
BLP11B-E*-E 80 270 420 108
BLP12B-E*-E 100 310 480 108
.

UV Stabalised PVC Electric Ball Valve

BLPE

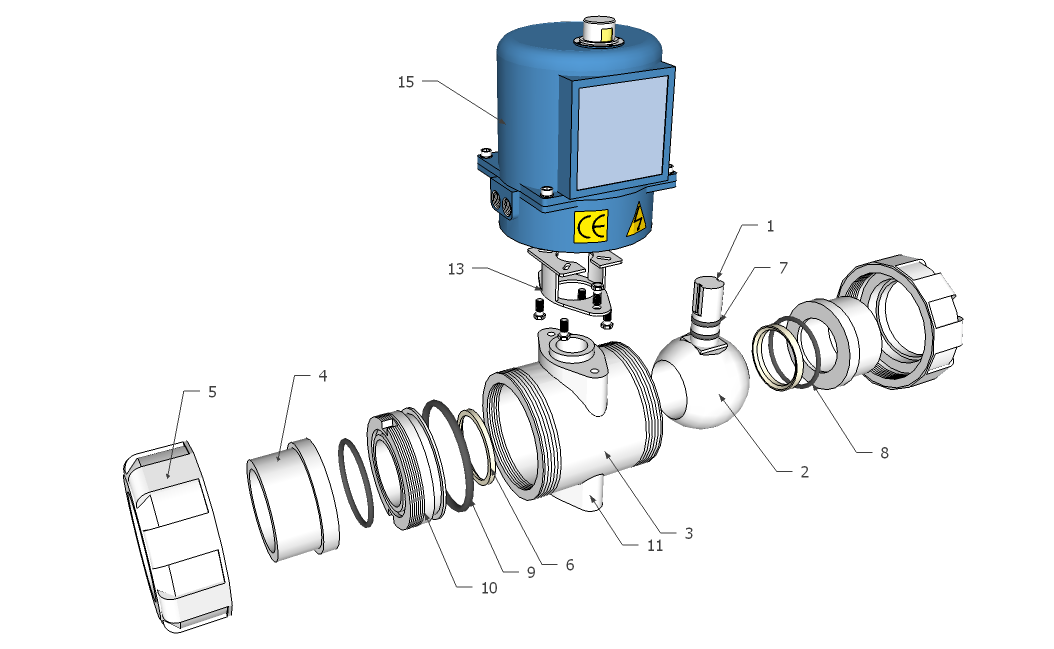

Construction:

Electrically Actuated PVC Ball Valve

Number Item Material
1 Shaft UPVC
2 Ball UPVC
3 Body UPVC
4 Connection UPVC
5 Union UPVC
6 Seat PTFE
7 Double Stem Oring EPDM or Viton
8 Oring EPDM or Viton
9 Oring EPDM or Viton
10 Retainer UPVC
11 Mount UPVC
13 Mounting Bracket 316 Stainless Steel
15 Electric Actuator Powder Coated Aluminium
