SKU: BLP3DA

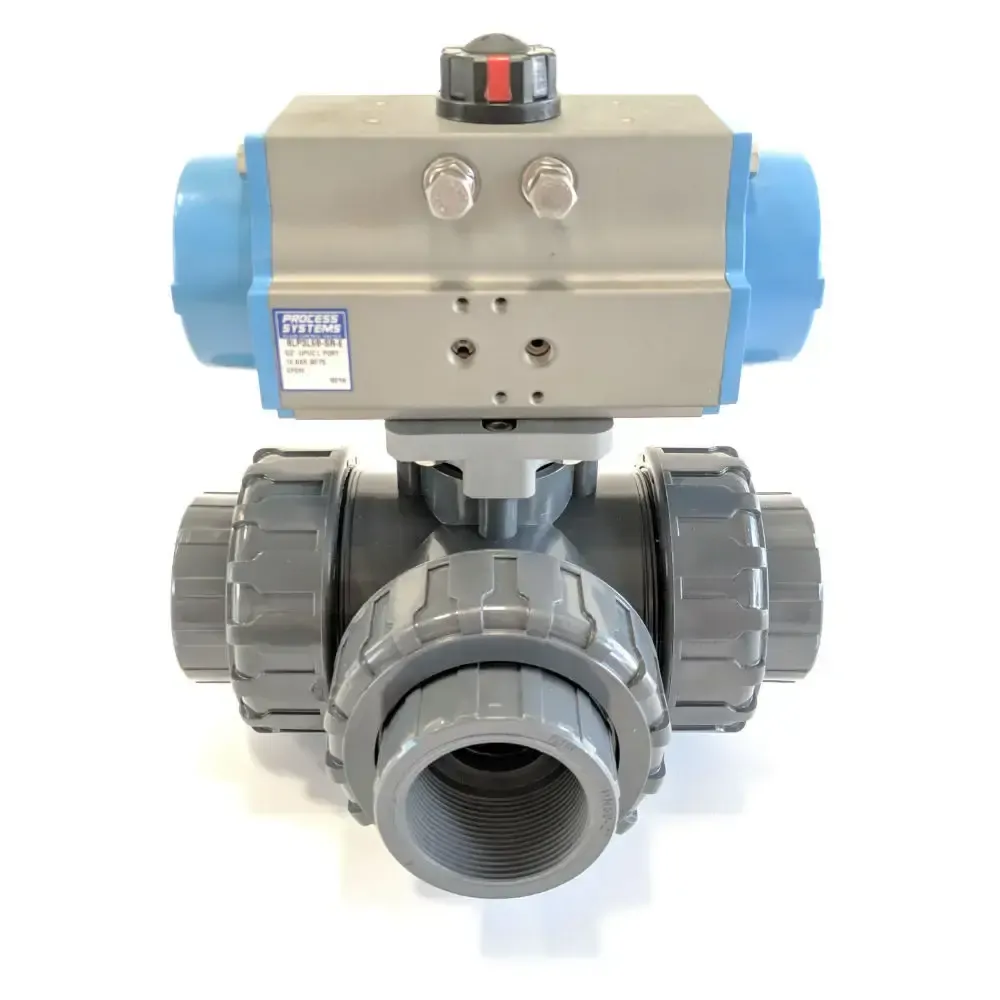

UV Stabalised 3 Way Double Acting PVC Ball Valve

From $275.00

Inc GST
In Stock
Make an Enquiry

3 way UV stabilised Double Acting Pneumatic PVC true union ball valve available in both L port and T port configurations. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Also features a chem lock insert In the end so the true union can be removed for service work and the ball will not leak when in the closed position. Great PVC ball valve for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration. Choose between Solvent Weld (ANSI Standard designed to fit Schedule 40 & 80 pipe) and BSP threaded ends (Threads conform to ISO 7.1 Sealing Threads.).

Model Size DN(mm) Actuator Media Pressure Media Temperature Actuator Port Size
BLP3L4B-DA-E 1/2 15 DA50 -1 to 10 Bar Ambient 1/8"
BLP3L5B-DA-E 3/4 20 DA50 -1 to 10 Bar Ambient 1/8"
BLP3L6B-DA-E 1 25 DA50 -1 to 10 Bar Ambient 1/8"
BLP3L7B-DA-E 1 ¼ 32 DA50 -1 to 10 Bar Ambient 1/8"
BLP3L8B-DA-E 1 ½ 40 DA63 -1 to 10 Bar Ambient 1/8"
BLP3L9B-DA-E 2 50 DA63 -1 to 10 Bar Ambient 1/8"

Change the 'B' to an 'S' for solvent weld. Change the 'L" to a 'T' for T port. Change the 'E' to a 'V' for FKM.

L Port T Port

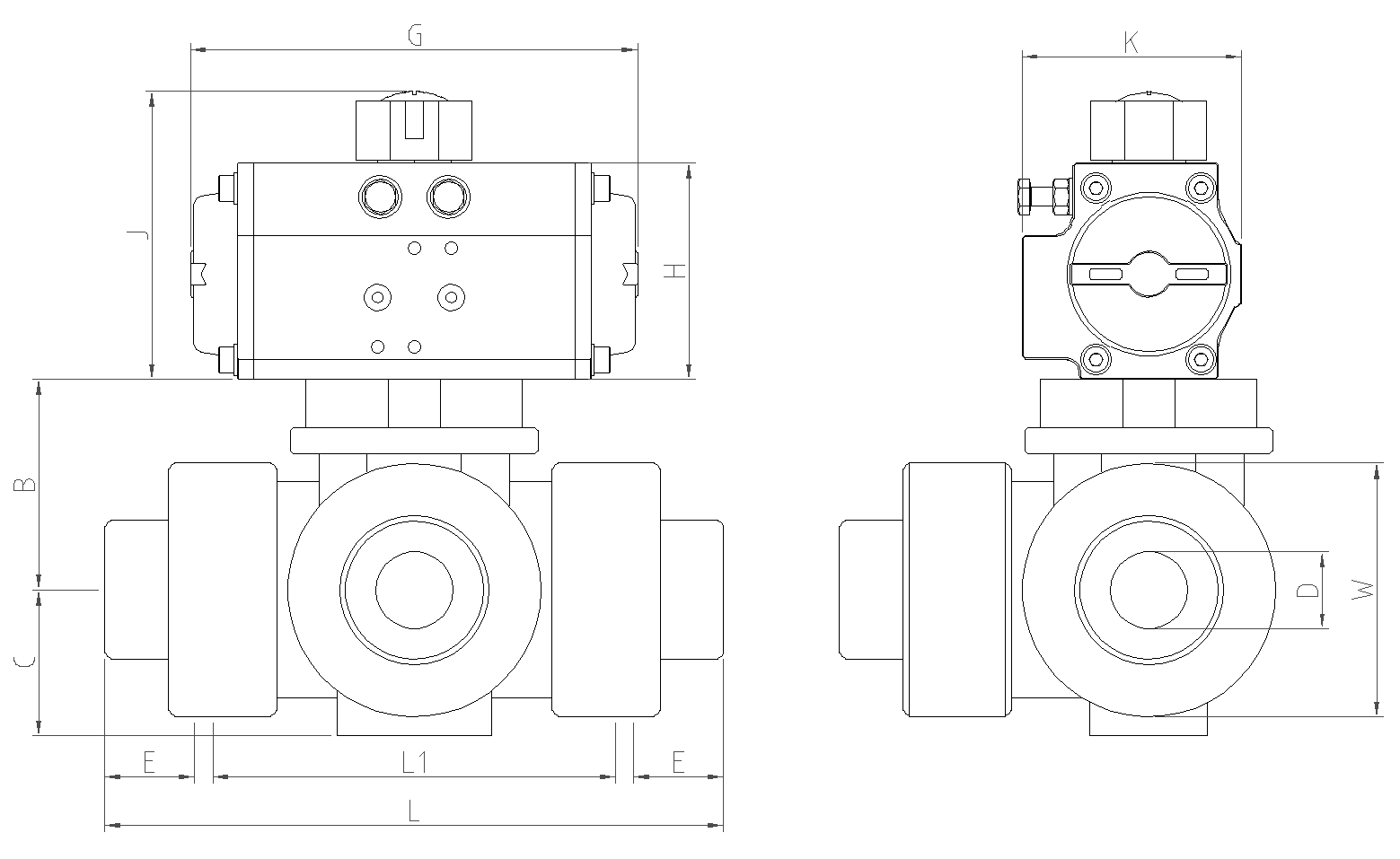

Model Actuator B C D E W L L1 G H J K
BLP3L4B-L-E DA50 55 30 14 23 53 138 83 138 70 90 71
BLP3L5B-L-E DA50 65 38 20 25 69 173 110 138 70 90 71
BLP3L6B-L-E DA50 68 48 25 28 82 200 130 138 70 90 71
BLP3L7B-L-E DA50 68 48 25 32 82 208 130 138 70 90 71
BLP3L8B-L-E DA63 92 65 38 35 117 240 154 162 80 100 80.5
BLP3L9B-L-E DA63 92 65 38 38 117 249 154 162 80 100 80.5

Size 1/2" to 2" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Double Acting Pneumatic

Others Also Bought

BLP3DA

UV Stabalised 3 Way Double Acting PVC Ball Valve

Features:

Size 1/2" to 2" BSP & Solvent Weld
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Double Acting Pneumatic

Description:

3 way UV stabilised Double Acting Pneumatic PVC true union ball valve available in both L port and T port configurations. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Also features a chem lock insert In the end so the true union can be removed for service work and the ball will not leak when in the closed position. Great PVC ball valve for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration. Choose between Solvent Weld (ANSI Standard designed to fit Schedule 40 & 80 pipe) and BSP threaded ends (Threads conform to ISO 7.1 Sealing Threads.).

Model Size DN(mm) Actuator Media Pressure Media Temperature Actuator Port Size
BLP3L4B-DA-E 1/2 15 DA50 -1 to 10 Bar Ambient 1/8"
BLP3L5B-DA-E 3/4 20 DA50 -1 to 10 Bar Ambient 1/8"
BLP3L6B-DA-E 1 25 DA50 -1 to 10 Bar Ambient 1/8"
BLP3L7B-DA-E 1 ¼ 32 DA50 -1 to 10 Bar Ambient 1/8"
BLP3L8B-DA-E 1 ½ 40 DA63 -1 to 10 Bar Ambient 1/8"
BLP3L9B-DA-E 2 50 DA63 -1 to 10 Bar Ambient 1/8"

Change the 'B' to an 'S' for solvent weld. Change the 'L" to a 'T' for T port. Change the 'E' to a 'V' for FKM.

L Port T Port

.

UV Stabalised 3 Way Double Acting PVC Ball Valve

BLP3DA

Dimensions:

Model Actuator B C D E W L L1 G H J K
BLP3L4B-L-E DA50 55 30 14 23 53 138 83 138 70 90 71
BLP3L5B-L-E DA50 65 38 20 25 69 173 110 138 70 90 71
BLP3L6B-L-E DA50 68 48 25 28 82 200 130 138 70 90 71
BLP3L7B-L-E DA50 68 48 25 32 82 208 130 138 70 90 71
BLP3L8B-L-E DA63 92 65 38 35 117 240 154 162 80 100 80.5
BLP3L9B-L-E DA63 92 65 38 38 117 249 154 162 80 100 80.5

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Hawleys are warranted by Hawleys to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Hawleys obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Hawleys and provided such defective product is returned to Hawleys freight prepaid and upon examination by Hawleys such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Hawleys representatives or employees. Hawleys reserves the right to change Valve and Brochure specifications without notice.

.
