Features:
Width 30mm & 34mm
Wall Thickness 17mm
Length Sizes 1 to 9
Types A and B

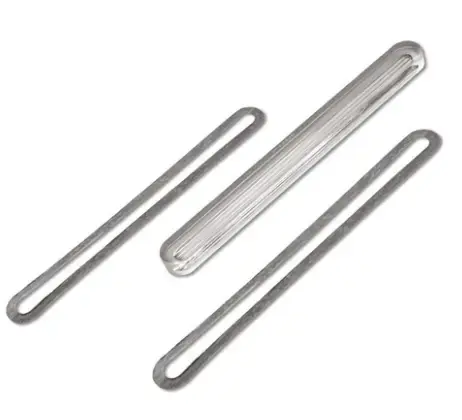

Transparent glass for level gauges have proved themselves universally where visual process control is essential. A high safety level is secured through the use of borosilicate glass, which has a high chemical resistance and a low thermal expansion. The borosilicate glass is thermal pressured (tempered) so that it can resist to the high pressure and temperature.
Size Number | Length | Width Type A | Width Type B | Thickness |
---|---|---|---|---|
1 | 115mm | 30mm | 34mm | 17mm |
2 | 140mm | 30mm | 34mm | 17mm |
3 | 165mm | 30mm | 34mm | 17mm |
4 | 190mm | 30mm | 34mm | 17mm |
5 | 220mm | 30mm | 34mm | 17mm |
6 | 250mm | 30mm | 34mm | 17mm |
7 | 280mm | 30mm | 34mm | 17mm |
8 | 320mm | 30mm | 34mm | 17mm |
9 | 340mm | 30mm | 34mm | 17mm |
