Features:
Sheet Size 1270mm x 760mm
Thickness 0.8mm - 6.5mm
Temperature Limit 110°C
Application Engine Oil, Gear Oil

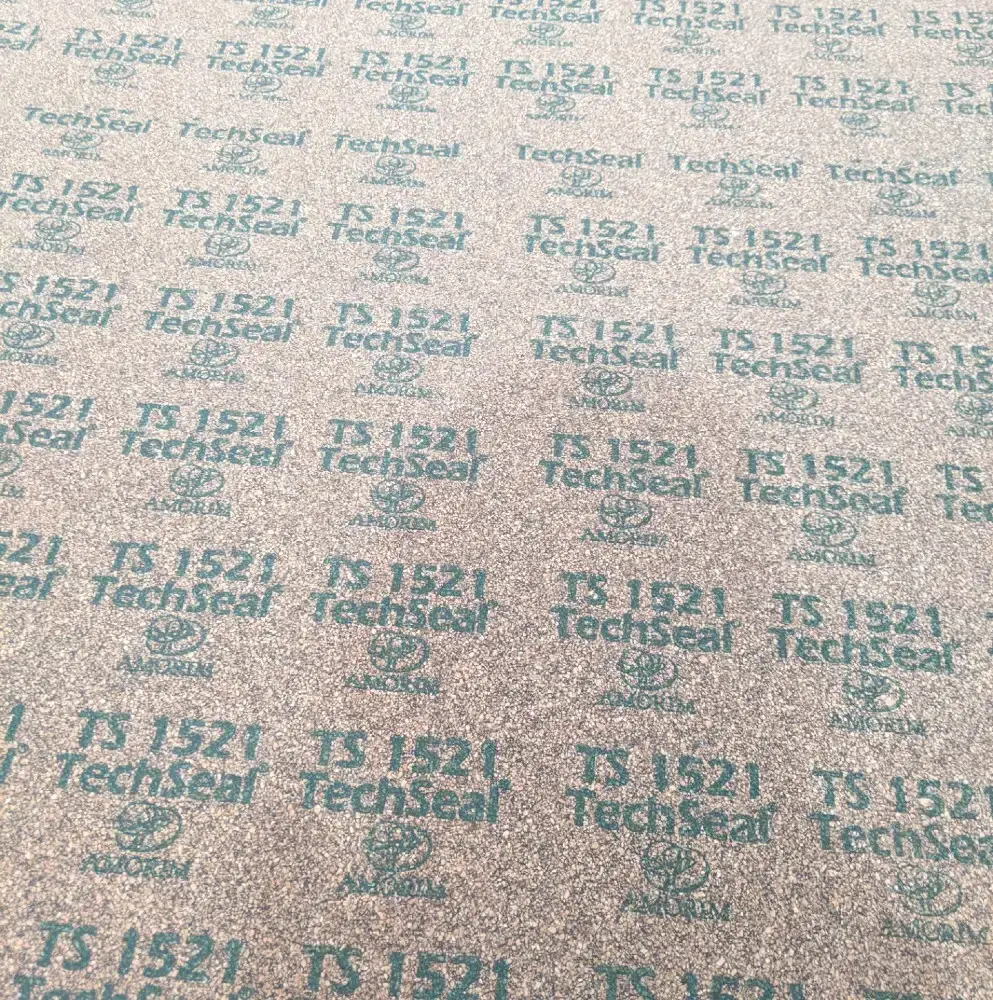

TS1521 sealing material is compounded with styrene butadiene (SBR) rubber. This product has an outstanding low sealing stress and is suitable for most lubrication fluids at application temperatures. TS1521 conforms to all present regulations for hazardous substances.
Technical Specifications | |
---|---|
Temperature Range | -30°C to 110°C |
Stress Range | 1.5 - 6 MPa |
Compressive Strength | Exceeds 70 MPa |
Density | 550-750 kg/m³ |
Hardness (Shore A) | 50 - 70 |
Tensile Strength | 0.8 MPa |
Elongation | 20% |
Compressibility at 400 PSI (%) | 35 - 50 |
Fluid Contact Compatibility | |
---|---|
Unleaded Gasoline | Unsuitable |
E-85 | Unsuitable |
B-100 | Unsuitable |
Diesel (Low Sulfur) | Unsuitable |
Engine Oil (15W40) | Suitable |
Gear Oil (75W90) | Suitable |
Meg Coolant | Unsuitable |
Peg Coolant | Unsuitable |
