Features:
Size 25mm Flanged
Mount Top and Bottom
Orientation The one unit can be easily changed to left or right
Suits Reflex & Transparent
Body 316L Stainless Steel
Pressure 40 BAR
Temperature 0°C to 260°C

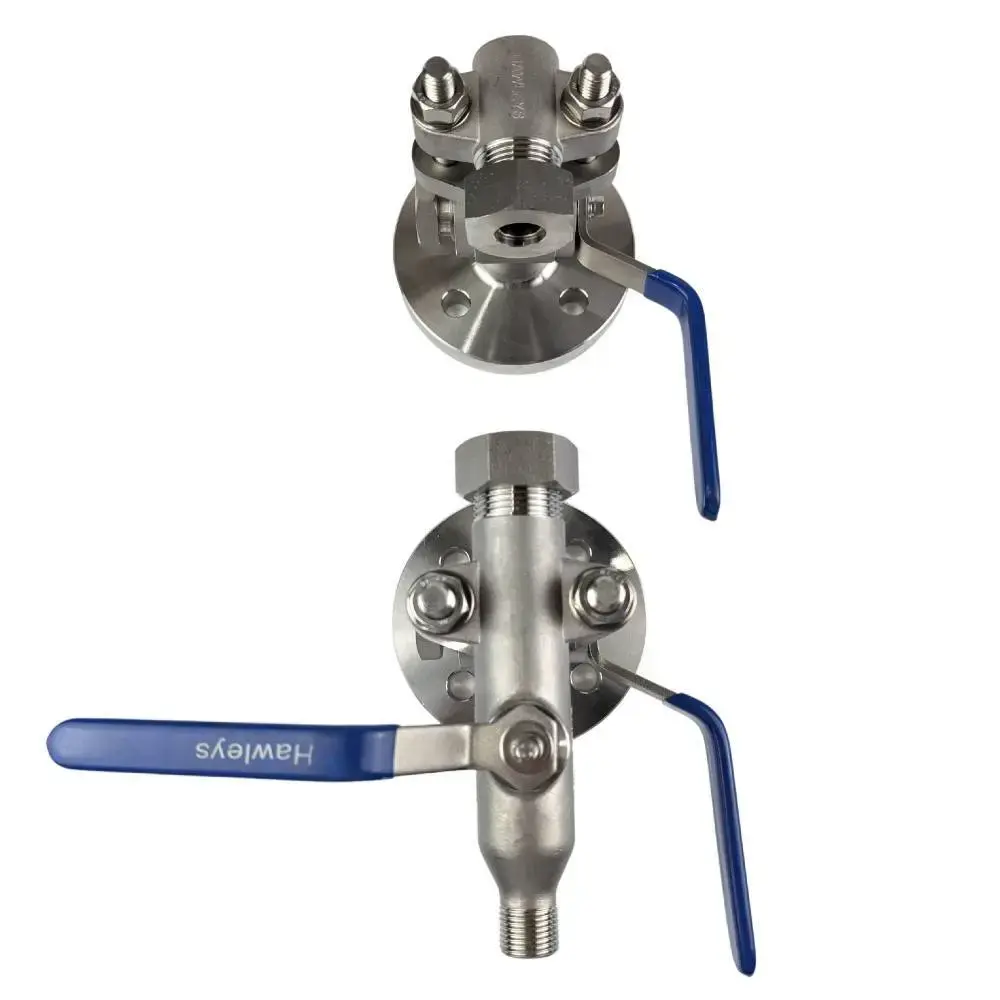

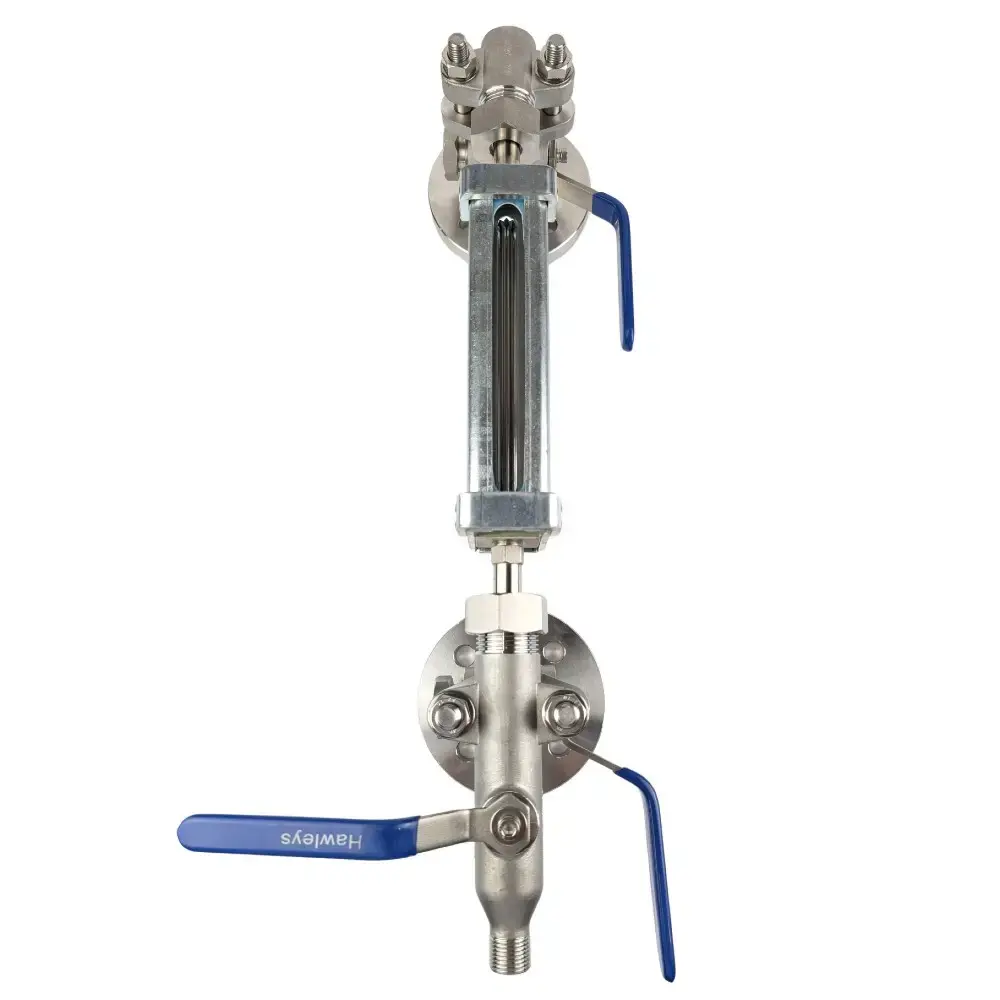

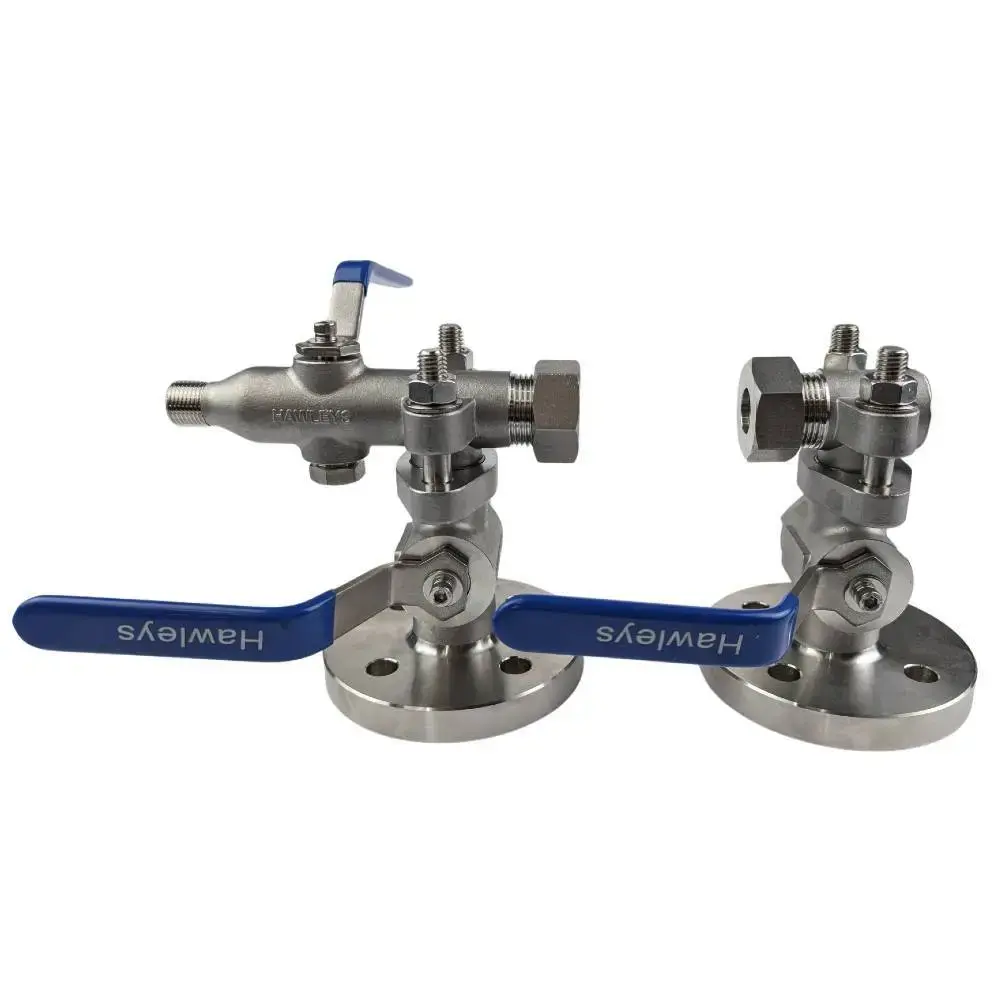

Flanged 316L (low carbon 316 stainless steel) Stainless Steel gauge cocks for high pressure reflex and level gauges. 90 degree operation permits immediate opening/closing. Simple design ensures uninterupted operation inlcuding one piece drain to eliminate a potential failure point. The packing sleeve (regular AB18 graphite sleeve) is the only part subject to wear and can be replaced within minutes. The valves can easily be changed from right hand to left hand and vice versa. They do not inlcude the reflex or transparent gauge itself. All suit 16mm end tubes. Certified to AS1271:2003 section 5 including self closing safety ball to reduce flow in event of breakage.
Working Pressure | 0 to 40 Bar |
---|---|
Temperature Range | 0°C to 260°C |
Made To | AS 1271-2003 |
Body | 316L Stainless Steel |

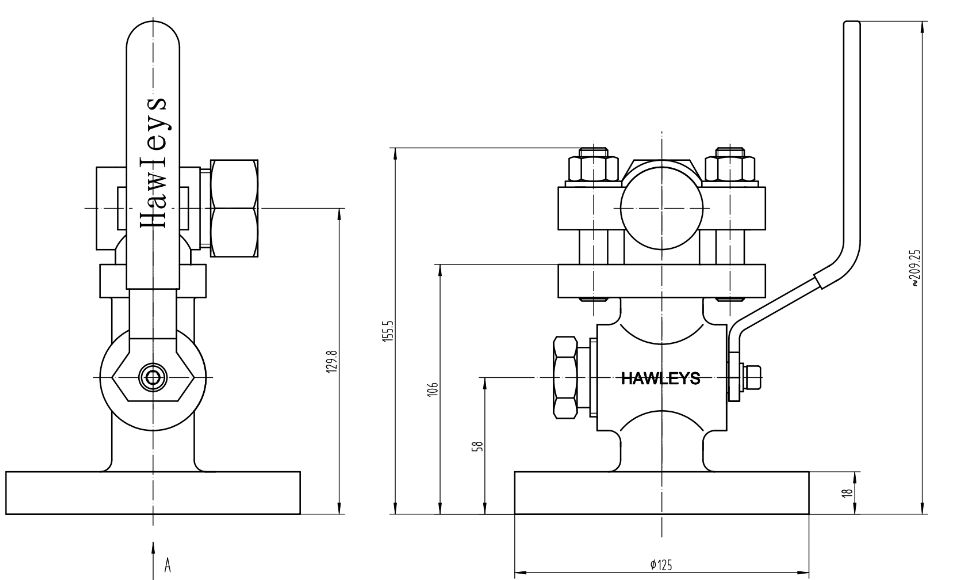

Top Mount

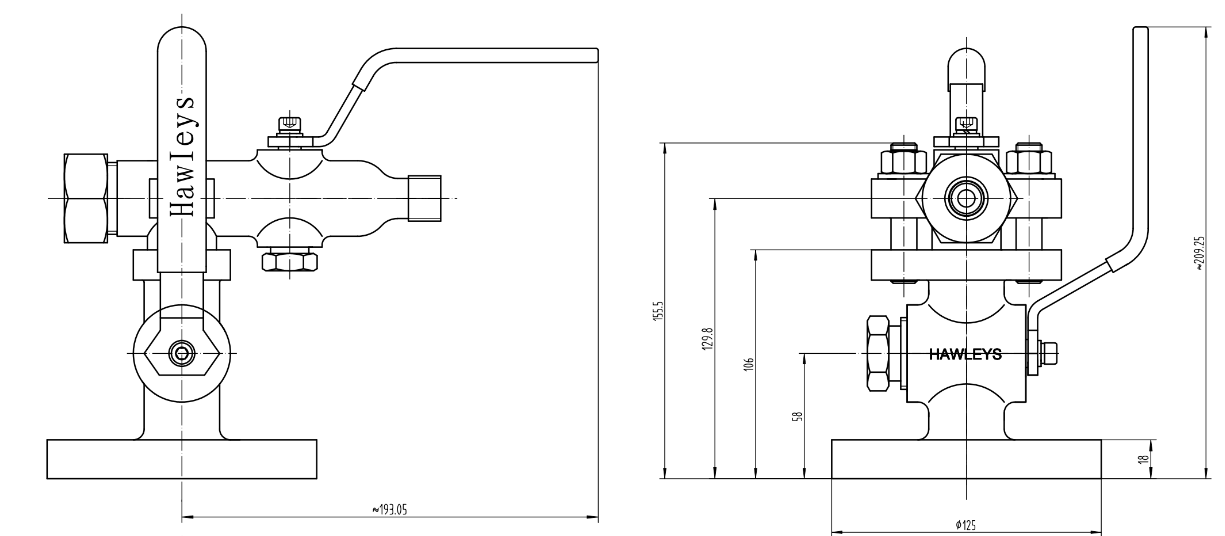

Bottom Mount

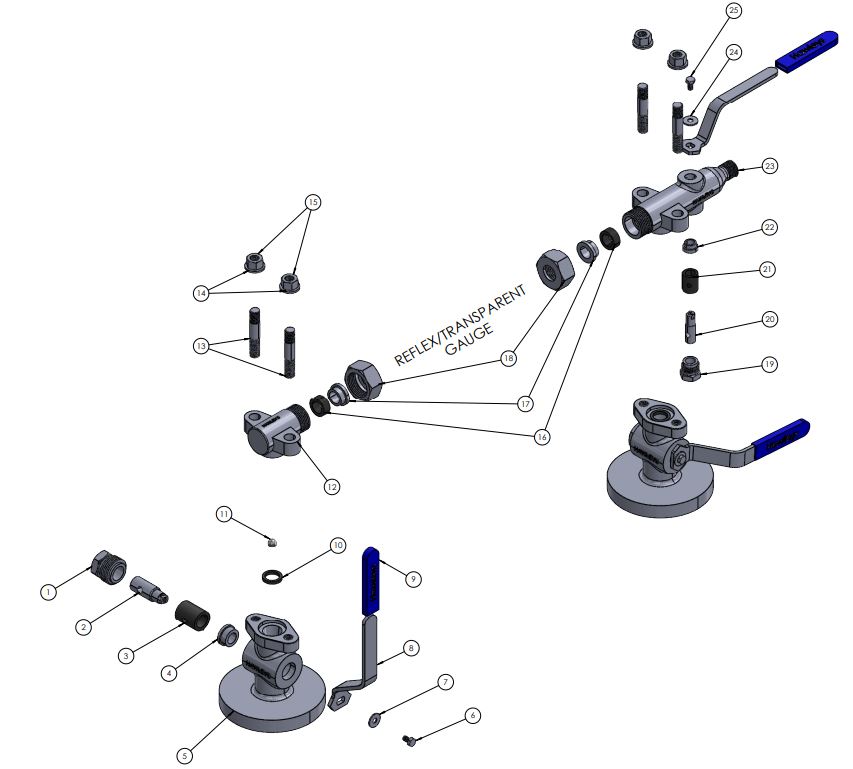

PART NUMBER | DESCRIPTION | MATERIAL | QTY |
1 | AB18 Spindle Plug | 304SS | 2 |
2 | AB18 Spindle | 316SS | 2 |
3 | AB18 Graphite Sleeve | Graphite | 2 |
4 | AB18 Spindle Collar | 304SS | 2 |
5 | Gauge Mount Body | WCB or C3FM | 2 |
6 | Handle Hardware | A2-70 | 2 |
7 | Handle Hardware | A2-70 | 2 |
8 | AB18 Handle | 304SS | 3 |
9 | AB18 Handle Sleeve | Heat Resistant Plastic | 3 |
10 | Spiral Wound Gasket | Graphite | 2 |
11 | Safety Ball | 316SS | 2 |
12 | Reflex Top | WCB or C3FM | 1 |
13 | Body Studs | 304SS | 4 |
14 | Washer | 304SS | 4 |
15 | Nut | 304SS | 4 |
16 | Graphite Packing Ring | Graphite | 2 |
17 | Reflex Collar | 304SS | 2 |
18 | Reflex Nut | 304SS | 2 |
19 | AB12 Splindle Plug | 304SS | 1 |
20 | AB12 Splindle | 316SS | 1 |
21 | AB12 Graphite Sleeve | Graphite | 1 |
22 | AB12 Splindle Collar | 304SS | 1 |
23 | Reflex Drain | WCB or C3FM | 1 |
24 | Splindle Hardware | A2-70 | 1 |
25 | Splindle Hardware | A2-70 | 1 |
