Features:
Size 25mm Flanged
Mount Top and Bottom
Orientation The one unit can be easily changed to left or right
Suits Borosilicate Gauge Glass
Body 316L Stainless Steel
Pressure 40 BAR
Temperature 0°C to 260°C

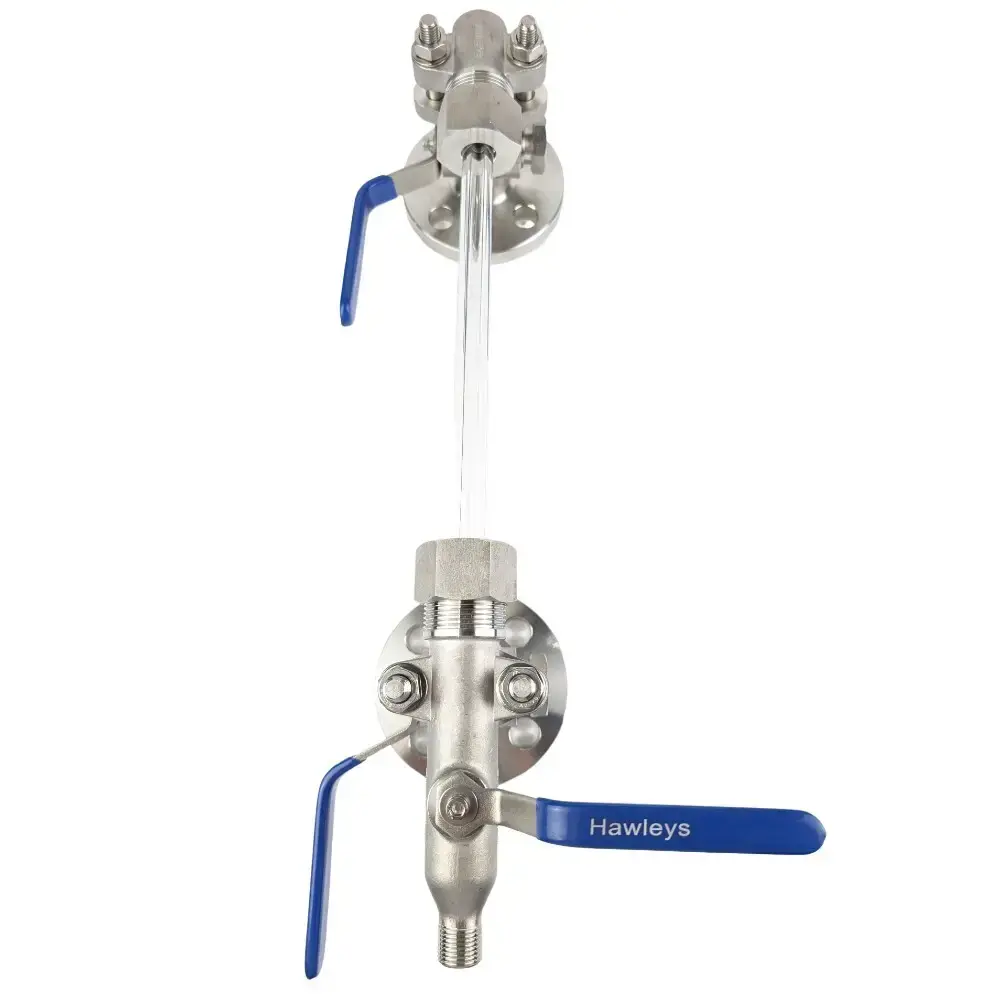

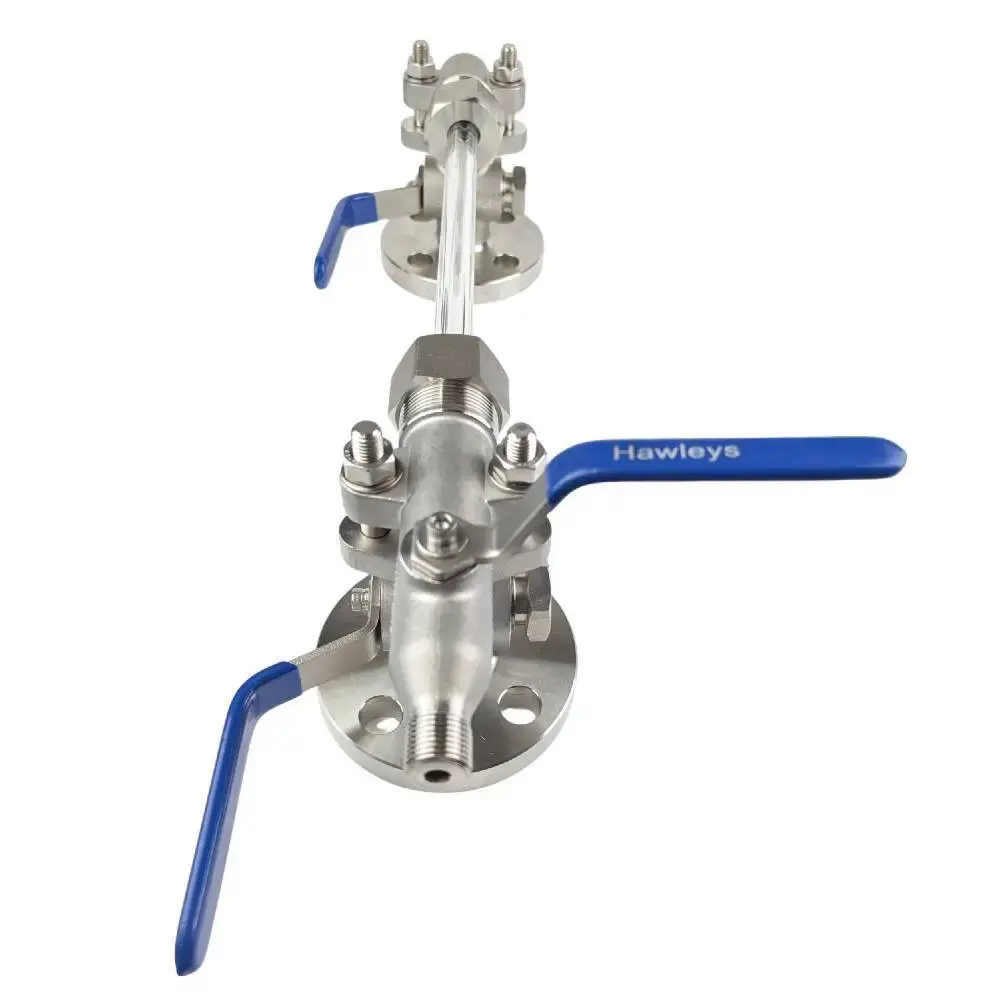

Flanged 316L (low carbon 316 stainless steel) Stainless Steel gauge cocks for Borosilicate Guage Glass. 90 degree operation permits immediate opening/closing. Simple design ensure uninterupted operation inlcuding one piece drain to eliminate potential failure point. The packing sleeve is the only part subject to wear and can be replaced within minutes. The valves can easily be changed from right hand to left hand and vice versa. They do not inlcude the borosilicate gauge glass. The temperature and pressure of the unit will be limited by the Borosilicate Gauge Glass used (the mount itself is rated to 40 Bar & 260°C however most gauge cones and glass can not do these temperatures). Certified to AS1271:2003 section 5 and inlcudes slef closing safety ball. Fits AB18 packings and standard Gauge Cones & 3/4" glass.
Working Pressure | 0 to 40 Bar |
---|---|
Temperature Range | 0°C to 260°C |
Made To | AS 1271-2003 |
Body | 316L Stainless Steel |

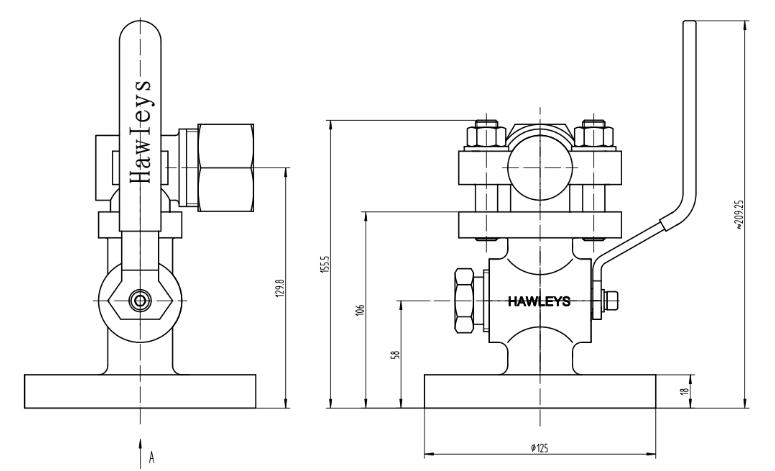

Top Mount

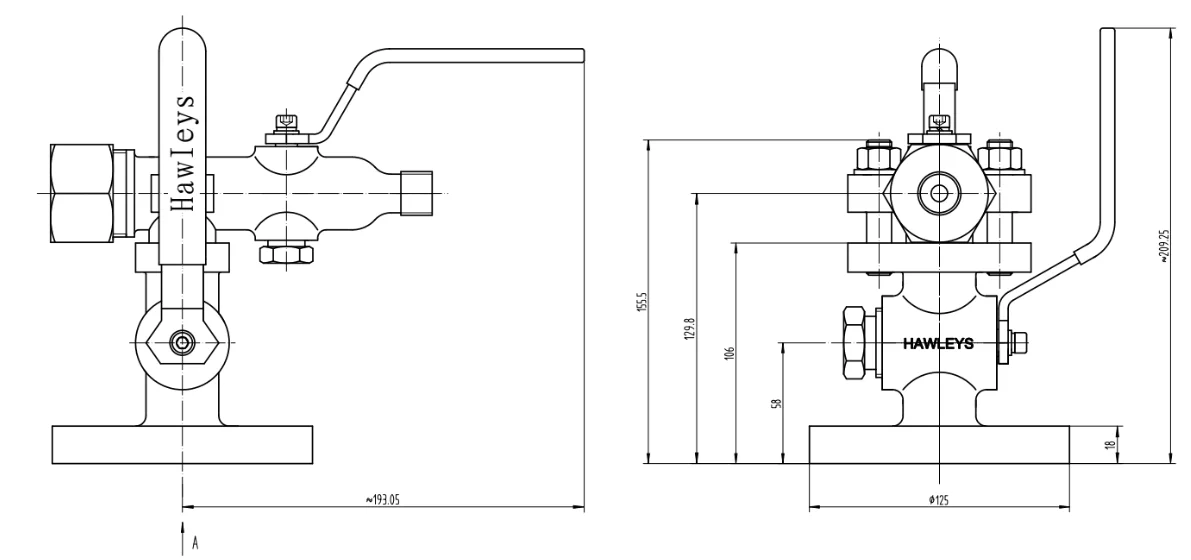

Bottom Mount

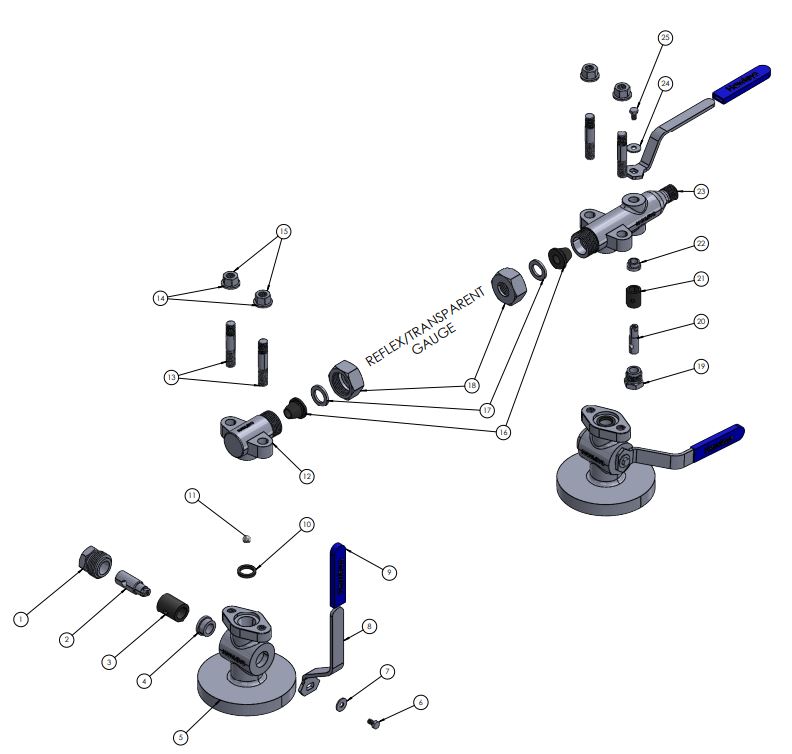

PART NUMBER | DESCRIPTION | MATERIAL | QTY |
1 | AB18 Spindle Plug | 304SS | 2 |
2 | AB18 Spindle | 316SS | 2 |
3 | AB18 Graphite Sleeve | Graphite | 2 |
4 | AB18 Spindle Collar | 304SS | 2 |
5 | Gauge Mount Body | WCB or C3FM | 2 |
6 | Handle Hardware | A2-70 | 2 |
7 | Handle Hardware | A2-70 | 2 |
8 | AB18 Handle | 304SS | 3 |
9 | AB18 Handle Sleeve | Heat Resistant Plastic | 3 |
10 | Spiral Wound Gasket | Graphite | 2 |
11 | Safety Ball | 316SS | 2 |
12 | Reflex Top | WCB or C3FM | 1 |
13 | Body Studs | 304SS | 4 |
14 | Washer | 304SS | 4 |
15 | Nut | 304SS | 4 |
16 | Reflex Gauge Cone | Graphite | 2 |
17 | Washer | 304SS | 2 |
18 | Reflex Nut | 304SS | 2 |
19 | AB12 Splindle Plug | 304SS | 1 |
20 | AB12 Splindle | 316SS | 1 |
21 | AB12 Graphite Sleeve | Graphite | 1 |
22 | AB12 Splindle Collar | 304SS | 1 |
23 | Reflex Drain | WCB or C3FM | 1 |
24 | Splindle Hardware | A2-70 | 1 |
25 | Splindle Hardware | A2-70 | 1 |
