Features:
Size 1/2" BSPT
Body 304 Stainless Steel
Pressure Range 0.1 to 20 BAR
Temperature -10°C to 180°C

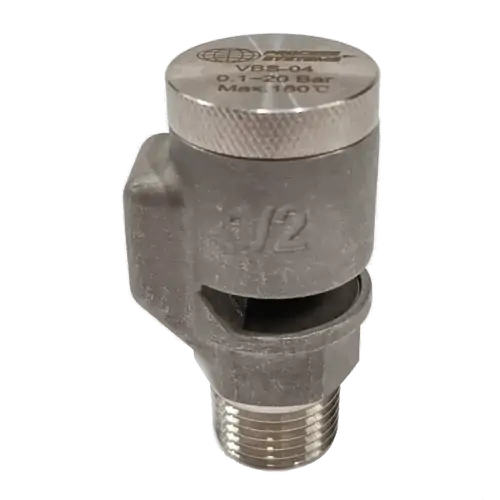

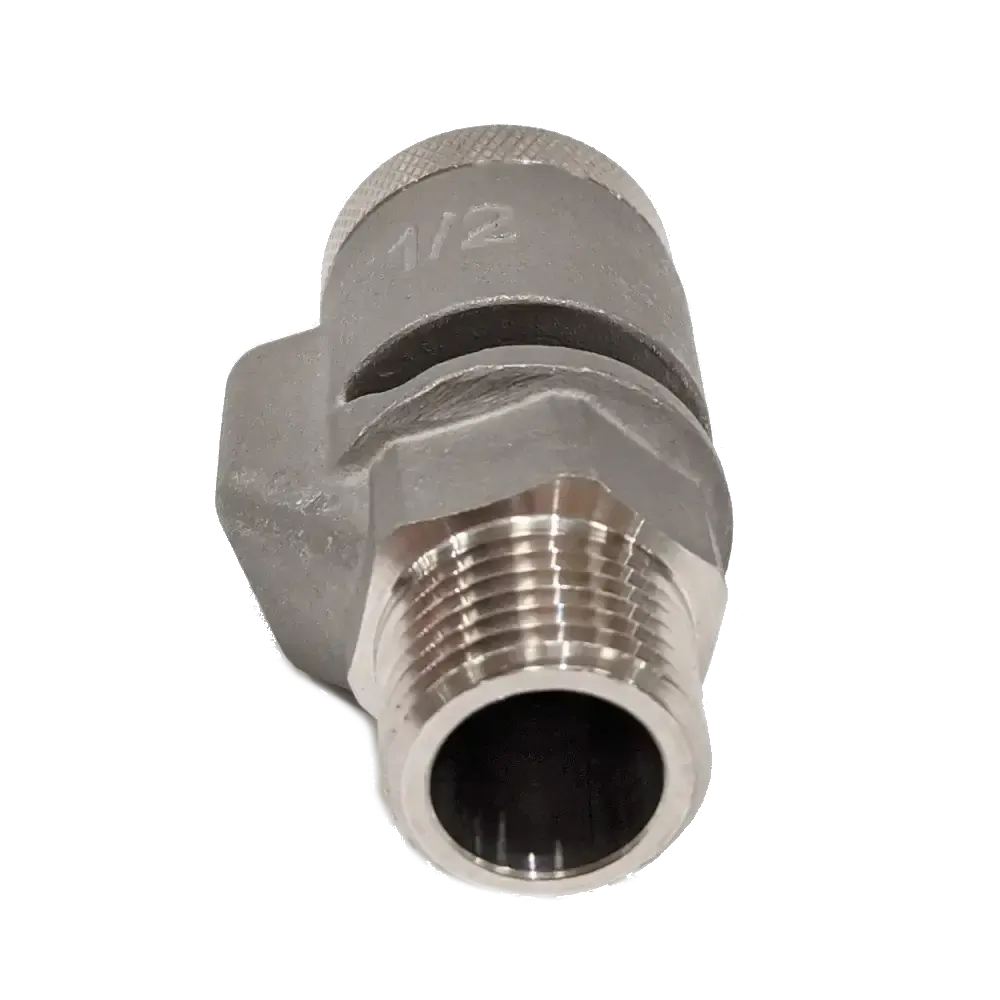

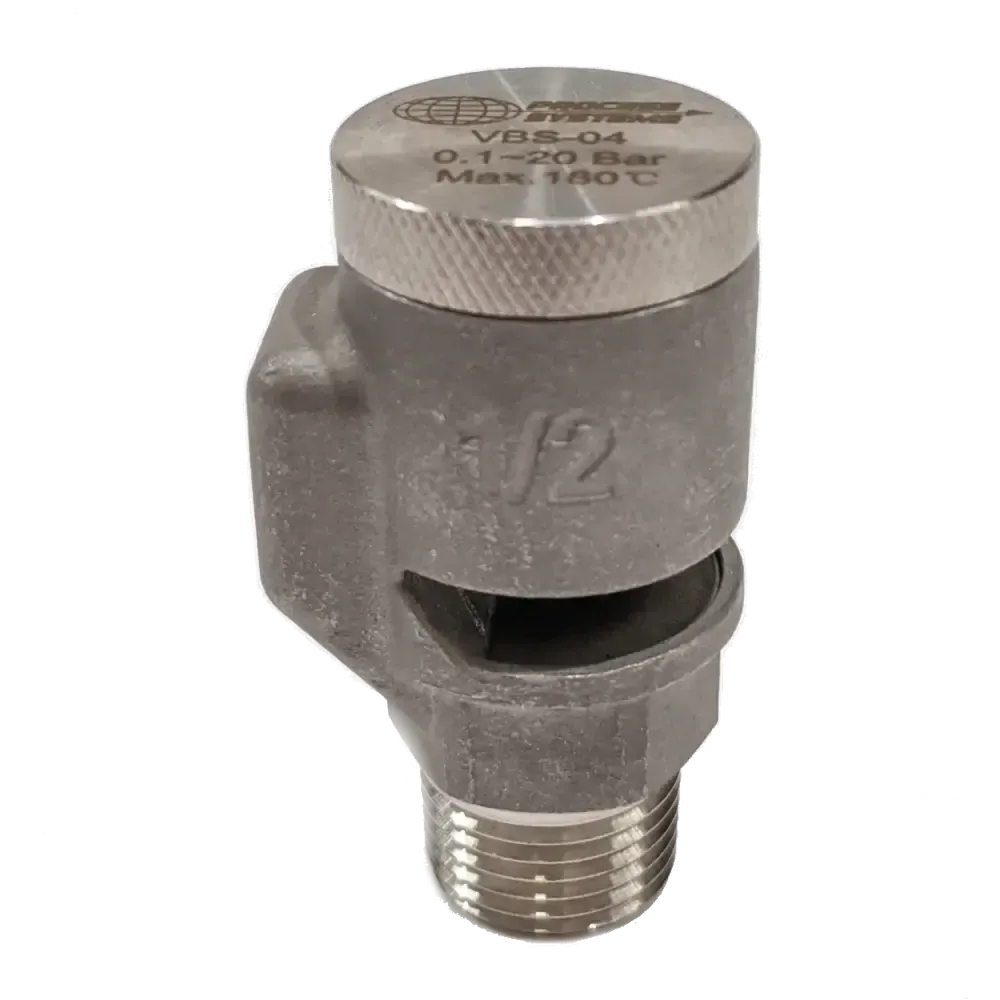

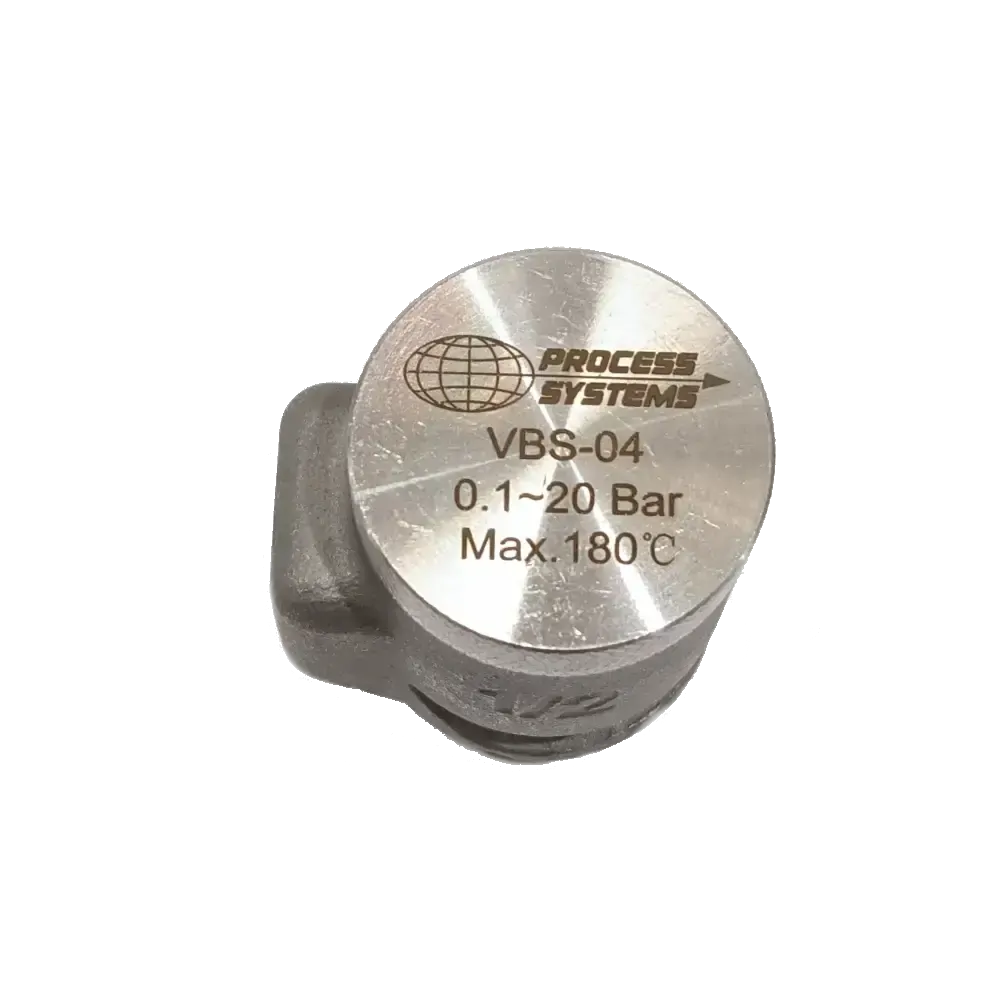

304 Stainless Steel Anti-siphon Vacuum Breaker with stainless internals and FKM seals & seat. Vacuum Breakers are used to relieve a vacuum pressure from within a system by allowing atmospheric air to enter. Once the system has returned to positive pressure, the seat seals closing off the system to the atmosphere.
Model | Size | Media Pressure | Media Temperature |
---|---|---|---|
VBS-04 | 1/2" BSPT | 0.1 to 20 Bar | -10°C to 180°C |

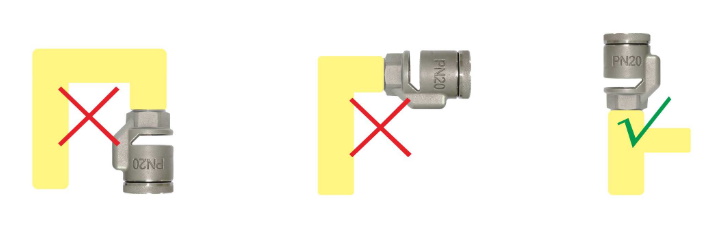

Recommended installation for the VBS Vacuum Breaker is for the unit to be in a vertical position.
Model | Size | H | L | D |
---|---|---|---|---|
VBS-04 | 1/2" BSPT | 63 | 36 | 13.5 |
Item | Description | Material |
---|---|---|
1 | Body | SS304 |
2 | Disc | SS304 |
3 | Valve Seat | FKM |
4 | Guiding Column | SS304 |
5 | O-Ring | FKM |
6 | Bonnet | SS304 |
