SKU: GLS

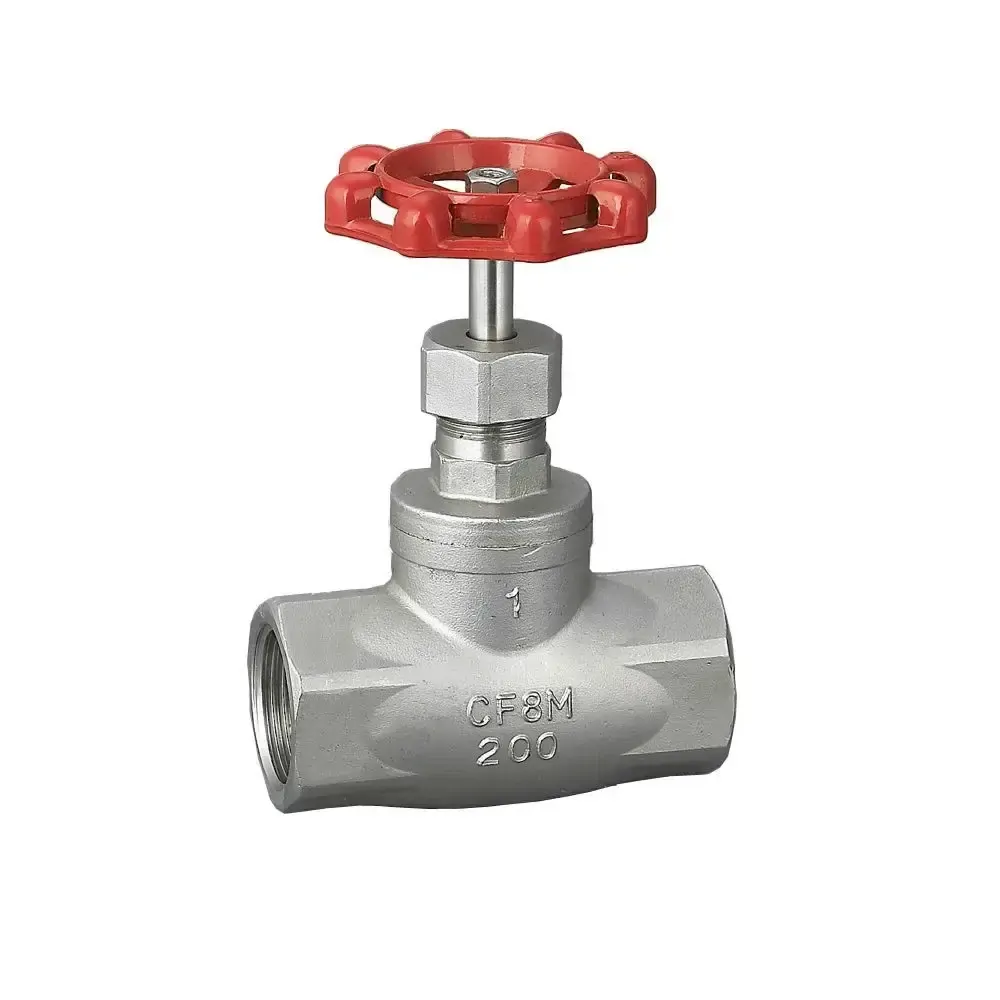

Stainless Steel Globe Valve

From $38.50

Inc GST
In Stock
Make an Enquiry

Forged Stainless Steel threaded Globe Valve with metal seat. Tested in accordance with API 598. Max temperature of 180°C.  PTFE gasket and packing with stainless steel seats and disc for greater durability and wear. Great for high temperature applications as long as it falls below the curve on the below Pressure-Temperature rating curve. Globe Valves are also regularly used over gate valves or other manual control valves where the user wants to achieve a greater degree of flow control. As the shaft comes down it has a 'globe shape' on the bottom of it which slowly cuts down the flow before shutting off on the seat. All globe valves come are available with testing and mil certificates. For Globe valves suitable for Steam applications please see our Class 800 Globe valves.

Model DN (mm) Pressure Range Media Temp CV
GLS-04 15 0 to 13 Bar -20°C to 180°C 10
GLS-05 20 0 to 13 Bar -20°C to 180°C 27
GLS-06 25 0 to 13 Bar -20°C to 180°C 52
GLS-07 32 0 to 13 Bar -20°C to 180°C 90
GLS-08 40 0 to 13 Bar -20°C to 180°C 140
GLS-09 50 0 to 13 Bar -20°C to 180°C 265

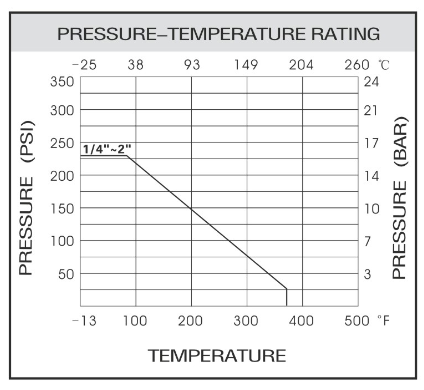

Stainless Steel Threaded Globe Valve Pressure vs Temperature

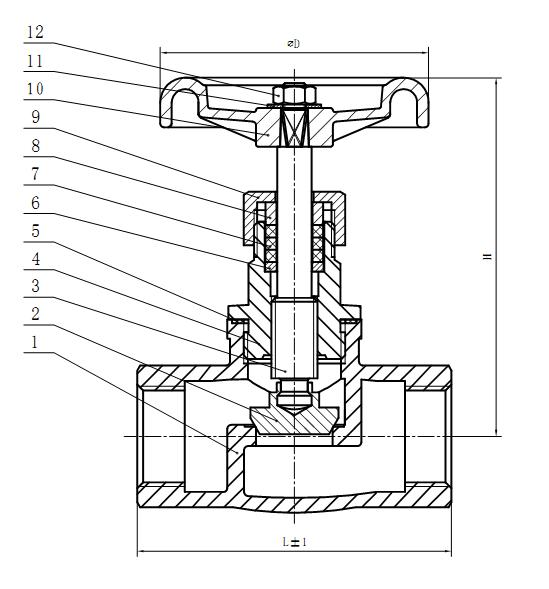

Stainless Steel Threaded Globe Valve

Model Size L H D Weight (kg)
GLS-04 ½” 65 93 65 0.4
GLS-05 ¾” 80 97 65 0.5
GLS-06 1” 90 112 72 0.7
GLS-07 1 ¼” 105 124 96 1.2
GLS-08 1 ½” 120 137 105 1.5
GLS-09 2” 140 149 105 2.5

All dimensions in mm unless shown otherwise.

Stainless Steel Threaded Globe Valve

Number Name Material
1 Body ASTM A351 CF8M
2 Disc ASTM A351 CF8M
3 Stem ASTM A276 316
4 Bonnet ASTM A351 CF8M
5 Body Gasket PTFE
6 Washer ASTM A276 316
7 Packing PTFE
8 Packing Sleeve ASTM A276 316
9 Packing Gland ASTM A351 CF8M
10 Hand Wheel Aluminium Alloy
11 Nut ASTM A194-B8M
12 Plain Washer ASTM A276 304

Size 1/2" to 2" BSP
Body 316 Stainless Steel
Seat Stainless Steel
Nominal Pressure 13 BAR
Max Temp 180°C
