SKU: ES55D

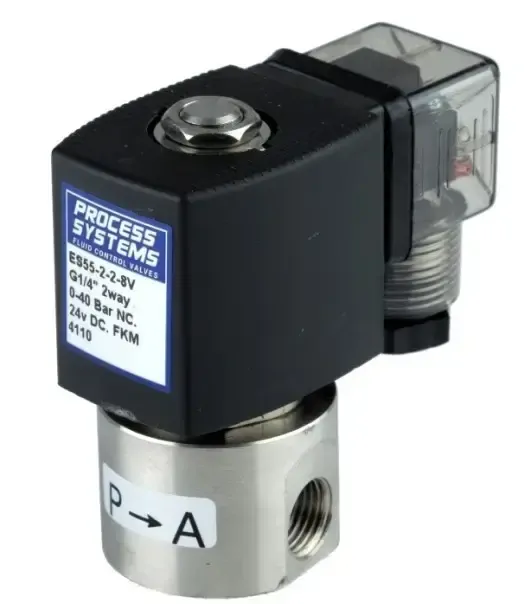

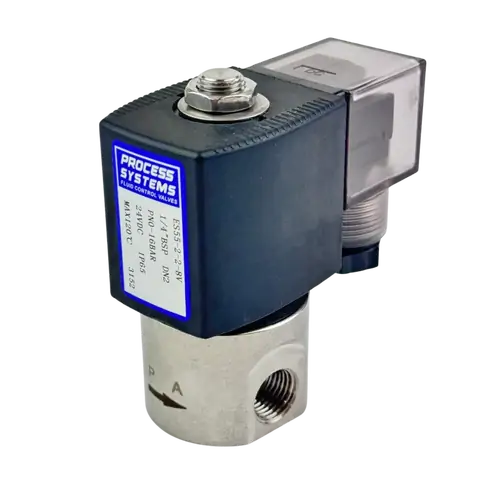

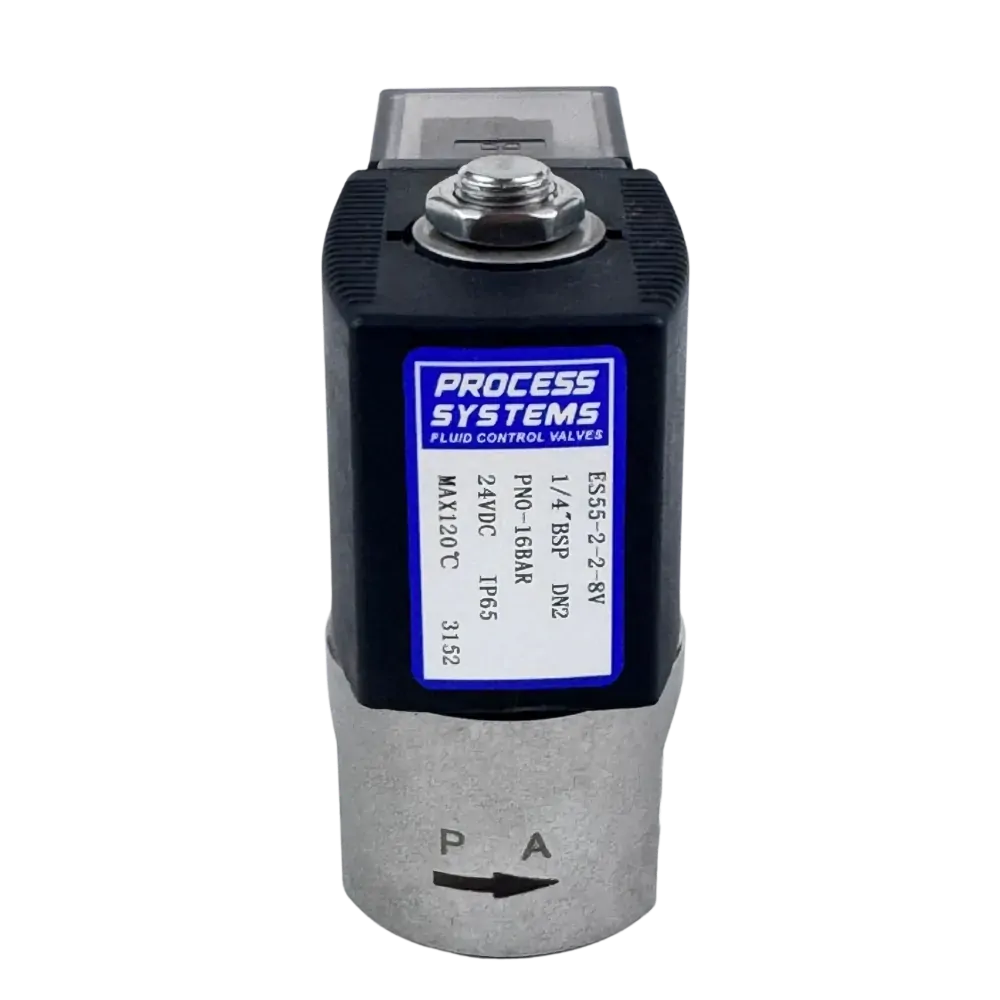

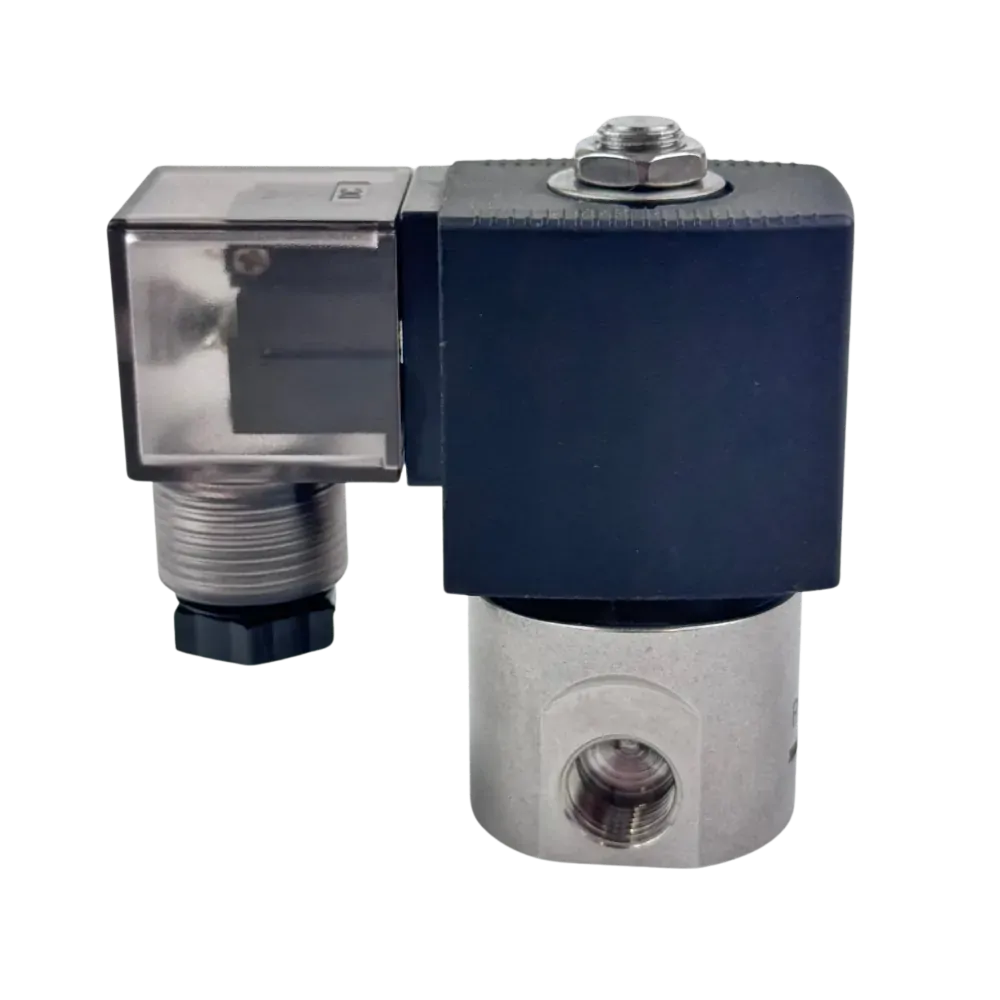

Stainless Steel General Purpose Direct Acting Normally Closed Solenoid Valve

From $82.50

Inc GST
In Stock
Make an Enquiry

A normally closed (power to open) direct acting solenoid valve with a 304 Stainless Steel machined body and stainless steel operator. Suitable for low head and zero head applications with a Viton (FKM) seat. Liquids to 50 centistoke viscosity. Standard coil is weatherproof to IP65 and has LED illuminated plug. Typical Applications include tank drain, iodine dosing for dairies, chemicals and other general industry. Threads conform to IS07/1 sealing threads.

Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Temperature Coil
ES55-1-1-*V 1/8 1 0.04 0~25 -10°C to 95°C SC-N14
16 Watts
27 Volt Amps
Class H Insulation
100% Ed
ES55-2-2-*V 1/4 2 0.1 0~16 -10°C to 95°C
ES55-2-3-*V 1/4 3 0.2 0~10 -10°C to 95°C
ES55-2-4-*V 1/4 4 0.4 0~6 -10°C to 95°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

Direct Acting Normally Closed 2 way solenoid valve

Model G L K A B C H Weight Kg
ES55-1-1-*V 1/8 34 76 72 80 Ø38 36 0.8
ES55-2-2-*V 1/4 34 76 72 80 Ø38 36 0.8
ES55-2-3-*V 1/4 34 76 72 80 Ø38 36 0.9
ES55-2-4-*V 1/4 34 76 72 80 Ø38 36 1.35

All dimensions in mm unless shown otherwise.

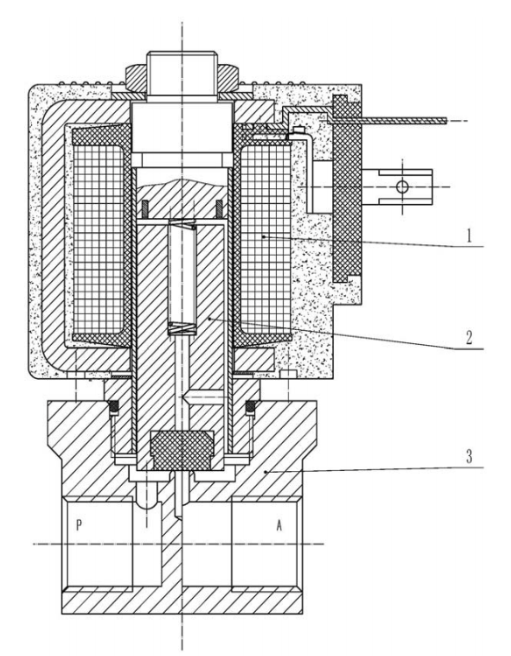

Stainless Steel Two Way Normally Closed Direct Acting Solenoid Valve

Number Item Material
1 Coil Epoxy
2 Armature Martensitic stainless steel
3 Valve Body 304 Stainless Steel

Size 1/8" to 1/4" BSP
Function Normally Closed (power to open)
Valve Operation Direct Acting
Body 304 Stainless Steel
Seat FKM
Pressure Range 0 to 25 BAR (depend on size)
Media Non aggressive media
