Features:
Size 1/2" to 1" BSPT
Body 316 Stainless Steel
Pressure Range 0.1 to 20 BAR
Temperature -10°C to 180°C

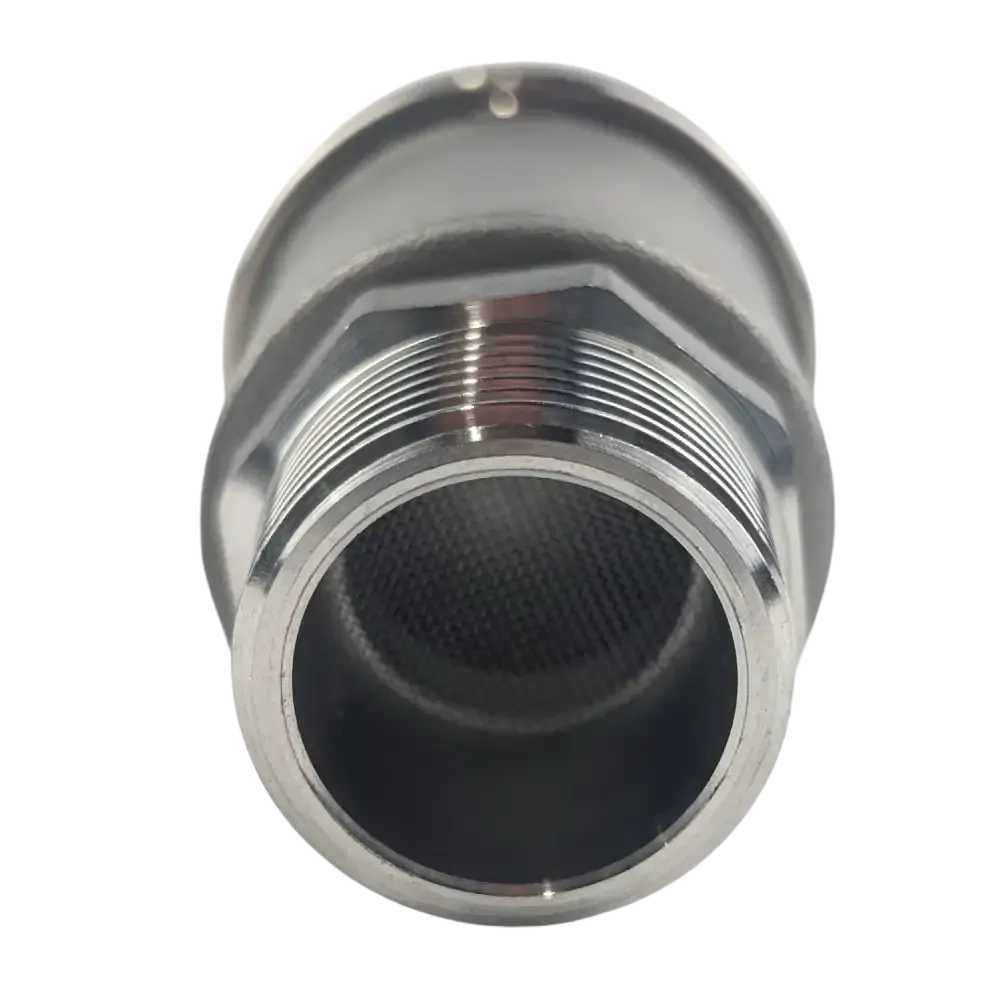

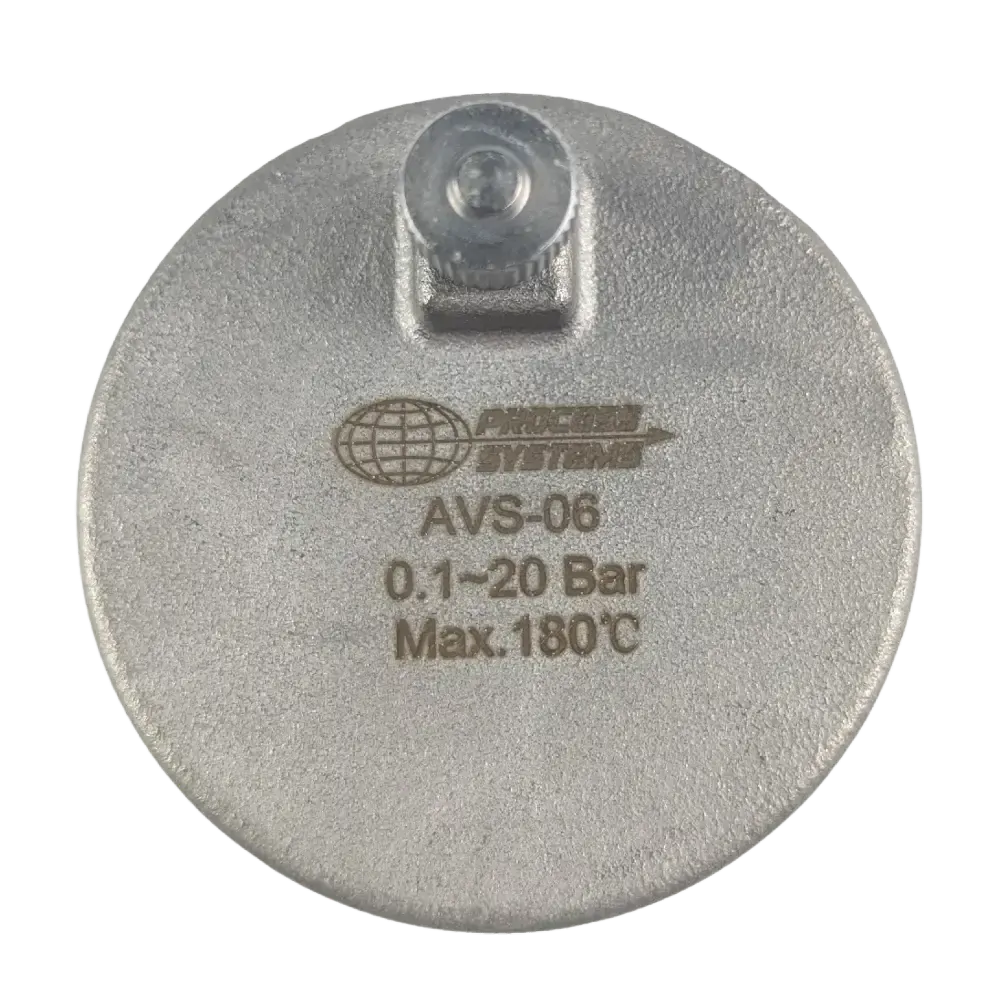

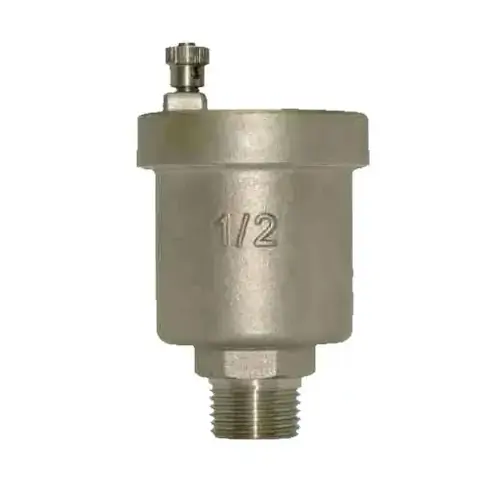

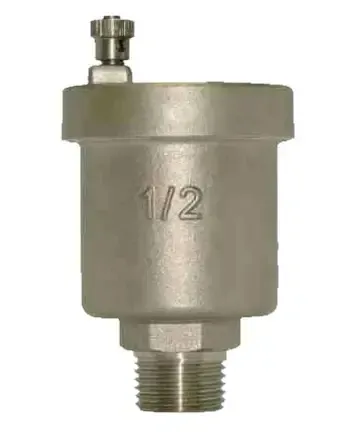

316 Stainless Steel Air Vent with stainless internals and FKM seals & seat. Includes integral stainless strainer & adjustable flow control outlet. The thread of the vent is M6 and diameter of the vent hole is 1mm on all units.
Model | Size | Media Pressure | Media Temperature |
---|---|---|---|
AVS-04 | 1/2" | 0.1 to 20 Bar | -10°C to 180°C |
AVS-05 | 3/4" | 0.1 to 20 Bar | -10°C to 180°C |
AVS-06 | 1" | 0.1 to 20 Bar | -10°C to 180°C |

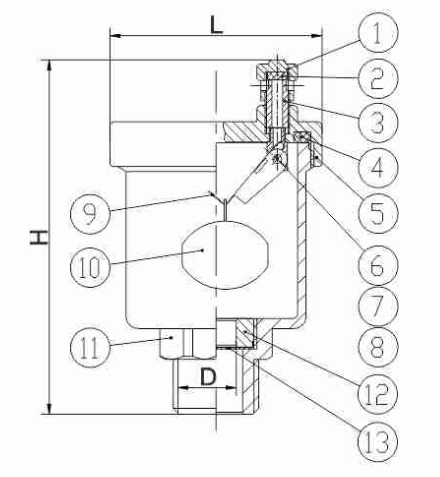

Model | Size | L | H | D |
---|---|---|---|---|
AVS-04 | 1/2" | 52 | 88 | 10 |
AVS-05 | 3/4" | 52 | 91 | 15 |
AVS-06 | 1" | 52 | 93 | 22 |
All dimensions are in mm unless specified otherwise
Item No. | Description | Material |
---|---|---|
1 | Cap | SS304 |
2 | Gasket | FKM |
3 | Exhaust Column | SS304 |
4 | O-Ring | FKM |
5 | Bonnet | SS316 |
6 | Sealing Column | SS316 |
7 | Balancing Column | SS316 |
Item No. | Description | Material |
---|---|---|
8 | Gasket | FKM |
9 | Bouncing Slince | SS316 |
10 | Float | SS316 |
11 | Valve Body | SS316 |
12 | Lock Nut | SS304 |
13 | Strainer | SS304 |
