Features:
Sizes 0 to 9
Suits Reflex & Transaprent Gauge Glass
Types A & B

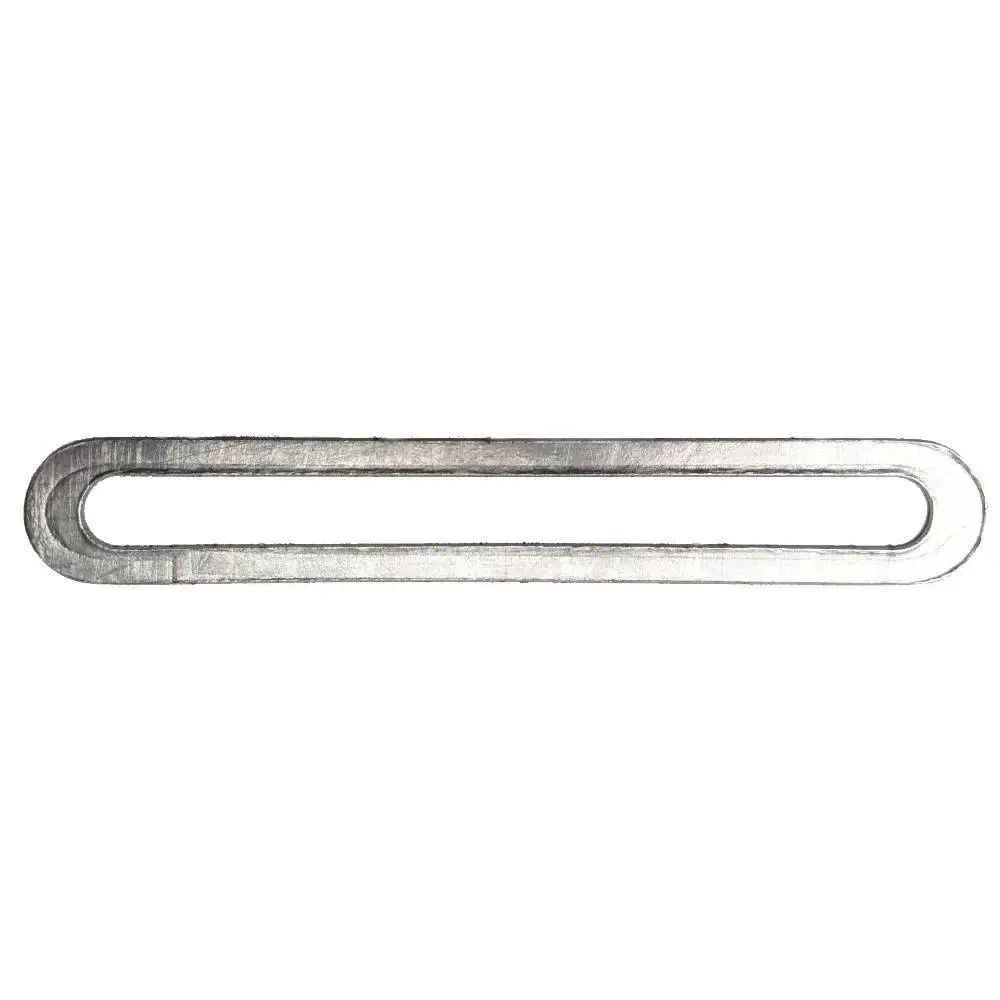

Sealing gasket forms the seal between the back of the reflex or transaparent glass and the cavity where the media is present. This is made from a graphite compound to withstand the heat and PH fo the media.The same gasket fits both styles and is only differentiated by its type (Type A or B) and its size number (sizes 0 to 9). These are cut on our CNC machine so have a very quick turnaround.
Size Number | Length | Width Type A | Width Type B | Thickness |
---|---|---|---|---|
0 | 95mm | 30mm | 34mm | 1.5mm |
1 | 115mm | 30mm | 34mm | 1.5mm |
2 | 140mm | 30mm | 34mm | 1.5mm |
3 | 165mm | 30mm | 34mm | 1.5mm |
4 | 190mm | 30mm | 34mm | 1.5mm |
5 | 220mm | 30mm | 34mm | 1.5mm |
6 | 250mm | 30mm | 34mm | 1.5mm |
7 | 280mm | 30mm | 34mm | 1.5mm |
8 | 320mm | 30mm | 34mm | 1.5mm |
9 | 340mm | 30mm | 34mm | 1.5mm |
