SKU: ETS

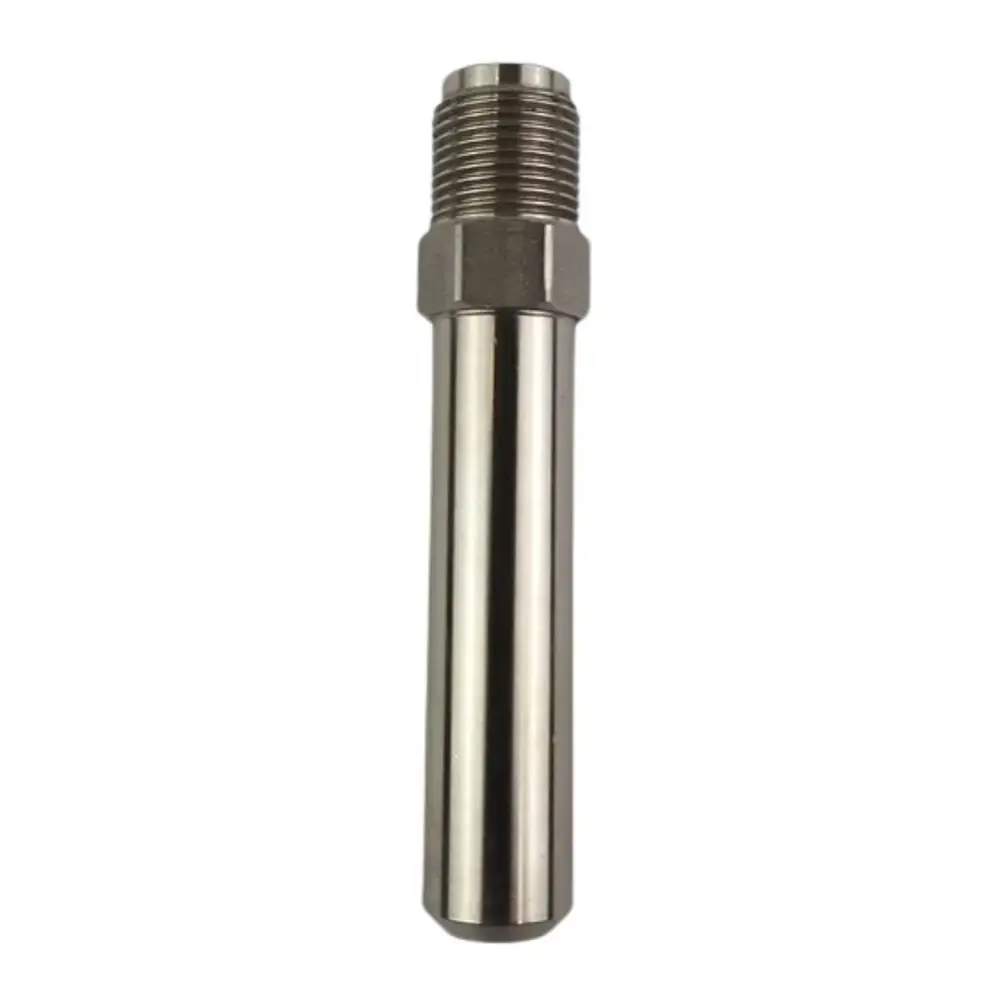

Stainless Steel End Tubes 3/8" BSP x 16mm x 90mm Long

$104.50

Inc GST
In Stock
Make an Enquiry

Machined and polished 316 Stainless Steel End Tube designed to fit into Reflex and Transparent Gauges forming the connection between the mount and the gauge itself. These have a 3/8" BSPP thread connection which enters the gauge and a polished spigot end which connects with the gauge mount. The level gauge end uses a parallel thread and a copper washer at the end to form the seal into the gauge. Many users cut down the length of the spigot end on site.

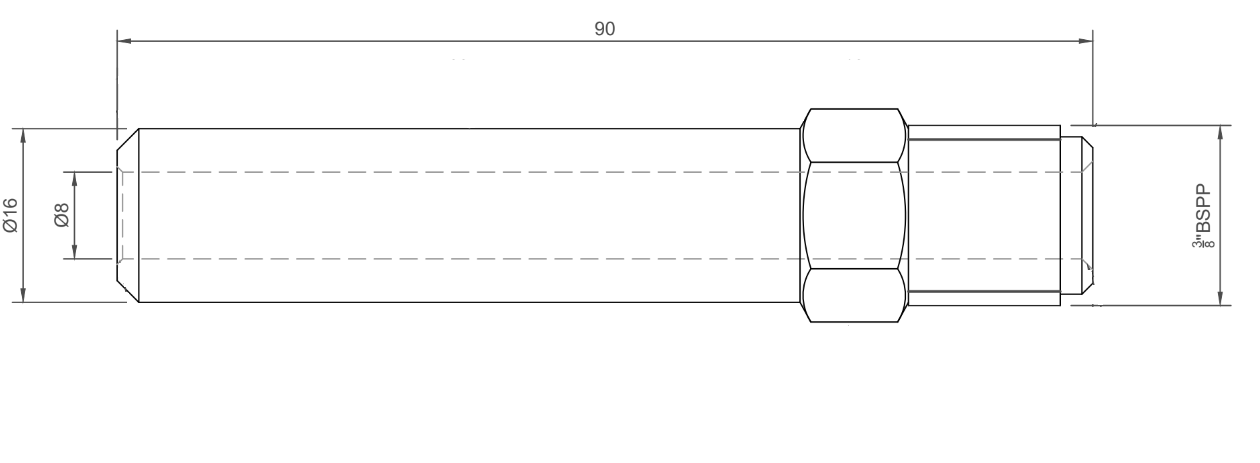

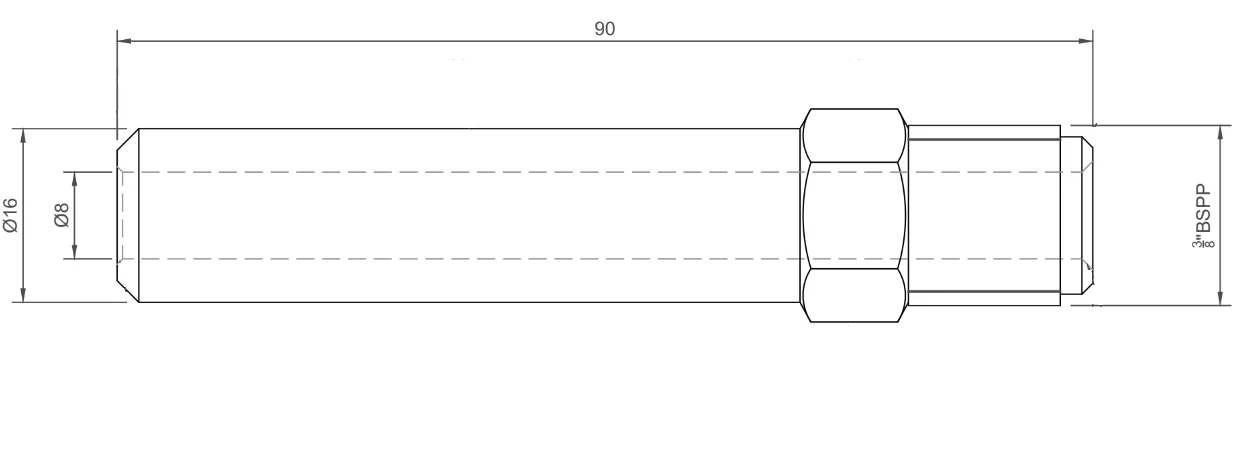

End Tube Dimensions for Level Gauge

Function Tube End for Level gauges
Body 316 Stanless Steel
Suits Water Level Gauge Any Brand with a 16mm spigot & 3/8' BSP thread
