Features:
Thickness 1.5mm - 9.5mm
Temperature Limit -30°C - 125°C
Application Industrial Services

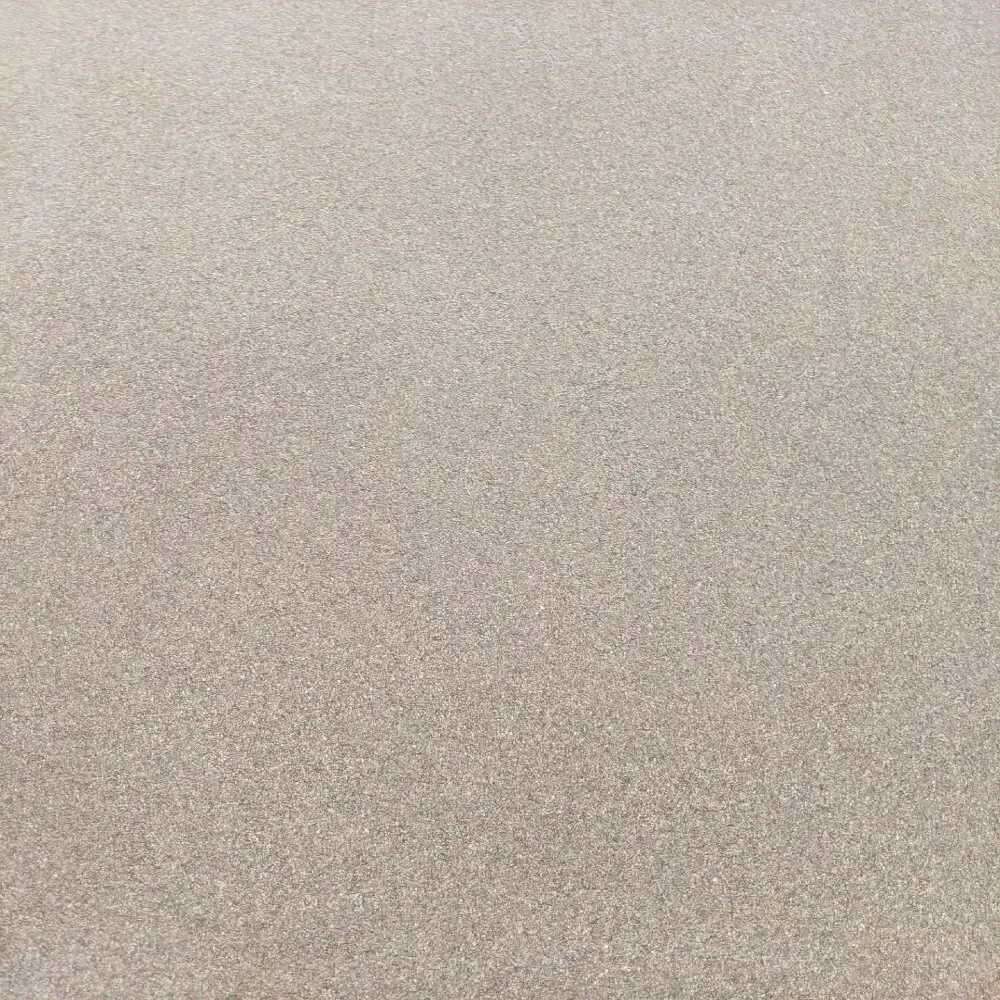

TS1028 is a Nitrile / Cork blend suitable for gas applications. This material is designed for use on automotive transmission oil pans. It is a top quality, medium hardness material with maximum oil and solvent resistance as well as good resistance to fuels. It has good flexibility and resilience. It has also been very popular for use on transformers.
Technical Specifications | |
---|---|
Temperature Range | Up to 125°C |
Stress Range | 4.5 to 20 MPa |
Compressive Strength | Excceds 70 MPa |
Density | 700 - 900 kg/m³ |
Hardness (Shore A) | 65 (Typical) |
Tensile Strength | >1.0 MPa |
Compressibility at 400 PSI (%) | 25 - 40 |
Fluid Contact Compatibility | |
---|---|
Natural Gas | Suitable |
Liquid Petroleum Gas | Suitable |
