Features:
Size 15mm to 100mm
Body 316 Stainless Steel
Seat Metal
Pressure 40 BAR
Temperature Up to 260°C (See Pressure Temperature Chart)
Actuation Lockable Lever

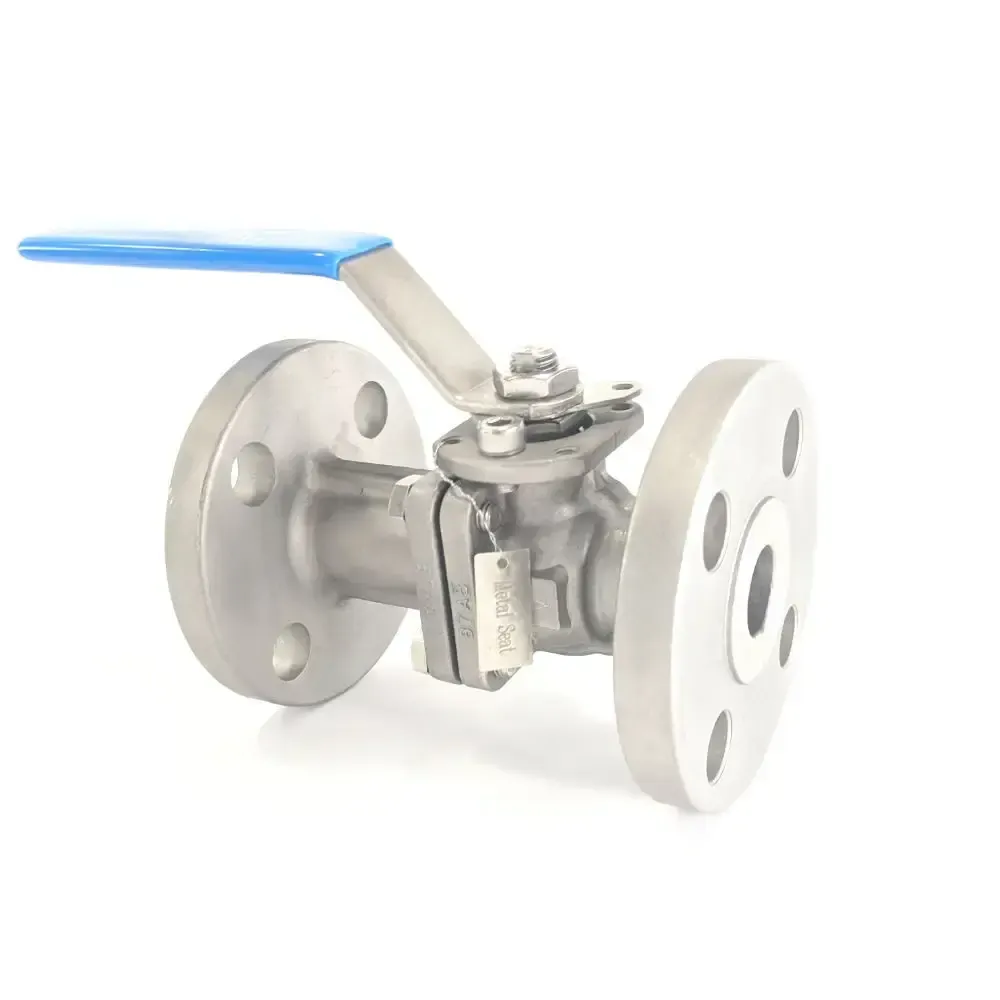

Full Bore 2 piece ANSI 300 Flanged 316 Stainless Steel Ball Valve. ISO5211 mounting pad with Lockable Lever. Unidirectional with vent hole on upstream side. Self adjusting stem packing with blow out proof stem design. Leakage Classification ANSI/FCI 70-2, Class V. Constructed to ANSI B16.34.

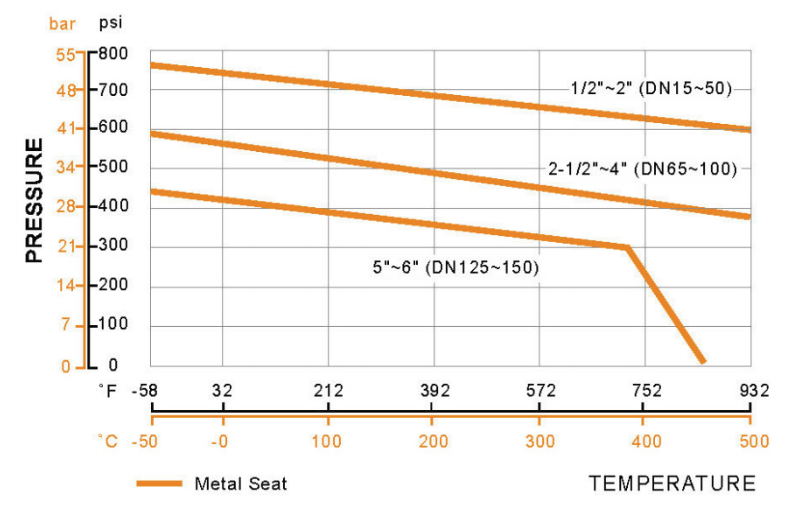

See Pressure Temperature chart below for specific rating of valve for each size at specified pressure and temperature.
Torque (Nm) with 30% safety margin
Pressure (Bar) | ||||||
---|---|---|---|---|---|---|
Size | Breakaway | 6.9 | 13.8 | 27.6 | 41.4 | 55.2 |
1/2" | 16 | |||||
3/4" | 18 | |||||
1" | 38 | 23 | 27 | 30 | 33 | 39 |
1 1/2" | 43 | |||||
2" | 51 |

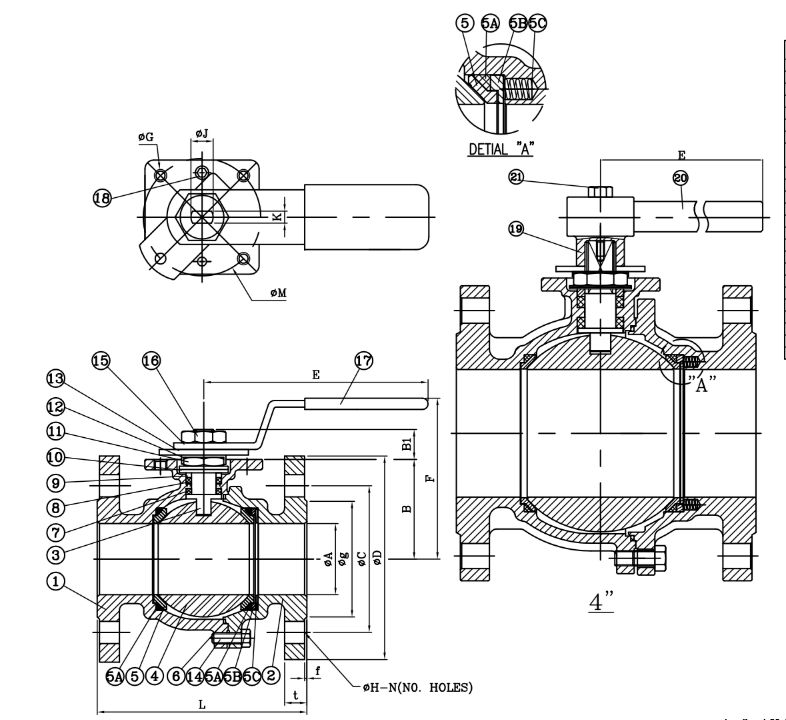

Size | A | B | B1 | F | E | L | K | M | G | J | D | C | H | N | T | g | f | kg |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/2" | 15 | 34.5 | 14 | 76 | 145 | 140 | 6.5 | 42 | M5 | 10 | 95 | 66.5 | 16 | 4 | 14.5 | 35 | 1.6 | 2.14 |
3/4" | 20 | 39 | 14 | 80 | 145 | 152 | 6.5 | 42 | M5 | 10 | 117 | 82.5 | 19 | 4 | 16 | 43 | 1.6 | 3.24 |
1" | 25 | 44 | 21.5 | 88 | 195 | 165 | 9.7 | 50 | M6 | 14 | 124 | 89 | 19 | 4 | 17.5 | 51 | 1.6 | 4.36 |
1 1/4" | 32 | 49 | 21.5 | 92 | 195 | 180 | 9.7 | 50 | M6 | 14 | 134 | 98.5 | 19 | 4 | 19.5 | 64 | 1.6 | 5.76 |
1 1/2" | 38 | 68 | 24 | 114 | 250 | 190 | 9.7 | 70 | M8 | 18 | 156 | 114.5 | 22 | 4 | 21 | 73 | 1.6 | 8.5 |
2" | 50 | 77 | 24 | 123 | 250 | 216 | 9.7 | 70 | M8 | 18 | 165 | 127 | 20 | 8 | 22.5 | 92 | 1.6 | 11.42 |
2 1/2" | 65 | 89.5 | 23 | 142 | 310 | 241 | 12 | 102 | M10 | 20 | 190 | 149 | 22 | 8 | 25.5 | 105 | 1.6 | 19.1 |
3" | 80 | 100 | 23 | 152 | 310 | 283 | 12 | 102 | M10 | 20 | 210 | 168 | 22 | 8 | 29 | 127 | 1.6 | 23.22 |
4" | 100 | 120.5 | 29 | 182 | 310 | 305 | 15 | 102 | M10 | 24 | 254 | 200 | 22 | 8 | 32 | 157 | 1.6 | 33 |
Dimensions in mm unless shown otherwise.
Number | Part | Material |
---|---|---|
1 | Body | A351 CF8M |
2 | Flange End | A351 CF8M |
3 | Stem | 17-4PH |
4 | Ball | Stellited 316SS |
5 | Ball Seats | Stellited 316SS |
5A | Back Seal | Graphite |
5B | Seal Holder | 316SS |
5V | Spring Disk | Inconel |
6 | Gasket | Graphite |
7 | Thrust Washer | Graphite |
8 | Stem Packing | Graphite |
9 | Gland | 304SS |
10 | Disk Washer | 17-7PH |
11 | Stem Nut | 304SS |
12 | Nut Lock | 304SS |
13 | Stop Plater | 304SS |
14 | Bolts | 304SS |
15 | Handle | 304SS |
16 | Handle Nut | 304SS |
17 | Handle Cover | Vinyl |
18 | Stop Pin | 304SS |
19 | Lever Head | A351 CF8 |
20 | Lever | Steel Pipe |
21 | Lever Head Botls | Steel |
