Features:
Size 1/2" to 2" BSP
Body 316 Stainless Steel
Seat Metal

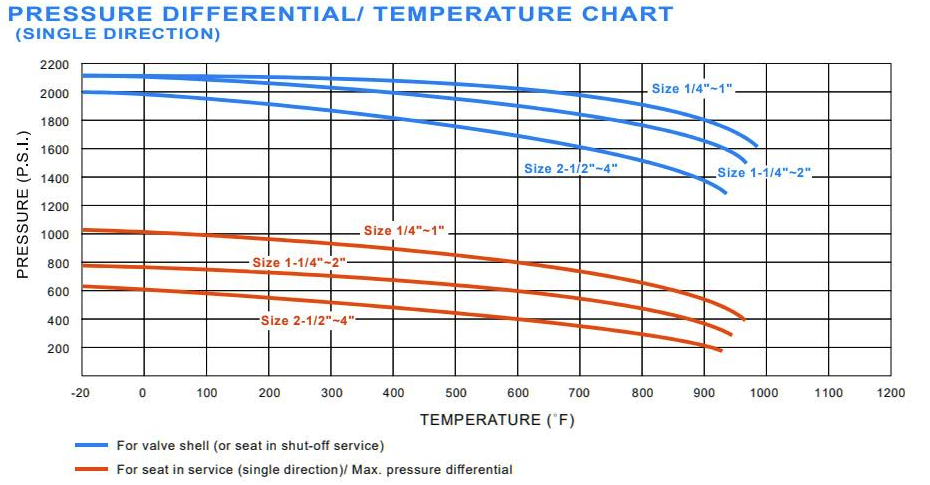

Pressure 136 BAR
Temperature 454°C
Actuation Lockable Lever
Full Bore 3 piece 2 way 316 Stainless Steel Ball Valve. ISO5211 mounting pad with Lockable Lever. Unidirectional with vent hole on upstream side. Self adjusting stem packing with blow out proof stem design. Leakage Classification ANSI/FCI 70-2, Class V. Constructed to ANSI B16.34.
Torque (Nm) with 30% safety margin
Breakaway | Pressure | ||||||||
---|---|---|---|---|---|---|---|---|---|
Size | 6.9 | 13.8 | 27.6 | 41.4 | 55.2 | 75.9 | 82.8 | 110.3 | |
1/2" | 20 | 18 | 18 | 18 | 20 | 21 | 24 | 26 | 35 |
3/4" | 28 | ||||||||
1" | 43 | 22 | 34 | 36 | 36 | 39 | 42 | 42 | 48 |
1 1/2" | 143 | ||||||||
2" | 250 |
For very high tempertaure applications, a heat shield or thermal standoff (Bracket and Drive Adaptor) may be required between the valve and actuator to reduce heat transfer. Contact sales for actuated and thermal standoff options.

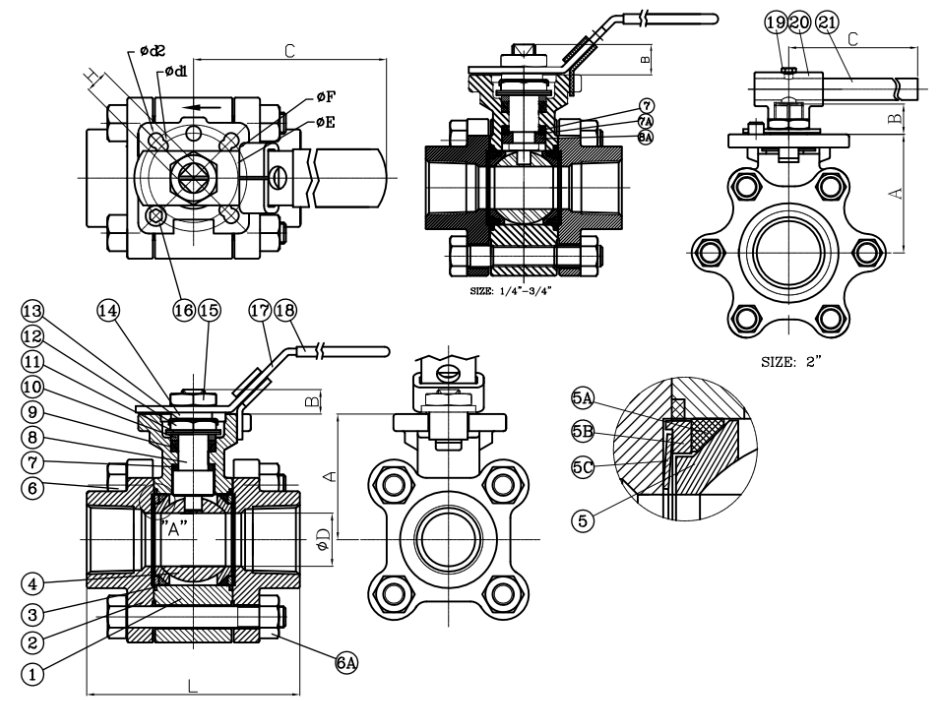

Size | A | B | C | D | d1 | d2 | E | F | H | L | Kg |
---|---|---|---|---|---|---|---|---|---|---|---|
1/4" | 48 | 9.5 | 130 | 11 | 6 | 6 | 36 | 42 | 9 | 70 | 0.88 |
3/8" | 48 | 9.5 | 130 | 12.5 | 6 | 6 | 36 | 42 | 9 | 70 | 0.88 |
1/2" | 48 | 9.5 | 130 | 15 | 6 | 6 | 36 | 42 | 9 | 70 | 0.96 |
3/4" | 53 | 12 | 155 | 20 | 6 | 6 | 42 | 50 | 11 | 92 | 1.7 |
1" | 59 | 12 | 155 | 25 | 6 | 7 | 42 | 50 | 11 | 105 | 2.54 |
1 1/4" | 62 | 14 | 205 | 32 | 7 | 9.2 | 50 | 70 | 14 | 111 | 2.98 |
1 1/2" | 70 | 14 | 205 | 38 | 7 | 9.2 | 50 | 70 | 14 | 124 | 4.57 |
2" | 90 | 19 | 300 | 50 | 9.2 | 11.4 | 70 | 102 | 17 | 150 | 9.95 |
Dimensions in mm unless shown otherwise.
Number | Part | Material |
---|---|---|
1 | Body | CF8M |
2 | End Cap | CF8M |
3 | Body Gasket | Graphite |
4 | Ball | Stellite |
5A | Ball Seats | Stellited 316SS |
5B | Seat Back Seal | Graphite |
5C | Seat Housing | 316SS |
6 | Spring Disk | Inconel |
6A | Bolts | 304SS |
7 | Nut | 304SS |
7A | Thrust Seal | Graphite |
8 | Thrust Washer | 316SS |
8A | Stem | 17-4 |
Number | Part | Material |
---|---|---|
9 | Half Split Ring | 316SS |
10 | Stem Packing | Graphite |
11 | Gland Washer | 304SS |
12 | Stem Nut | 301SS |
13 | Nut Stop | 304SS |
14 | Space Washer | 304SS |
15 | Handle Nut | 304SS |
16 | Stop Pin | 304SS |
17 | Handle | 304SS |
18 | Handle Cover | Plastisol |
19 | Set Bolt | 304SS |
20 | Lever Head | CF8 |
21 | Lever | Steel Pipe |
