SKU: BLPF

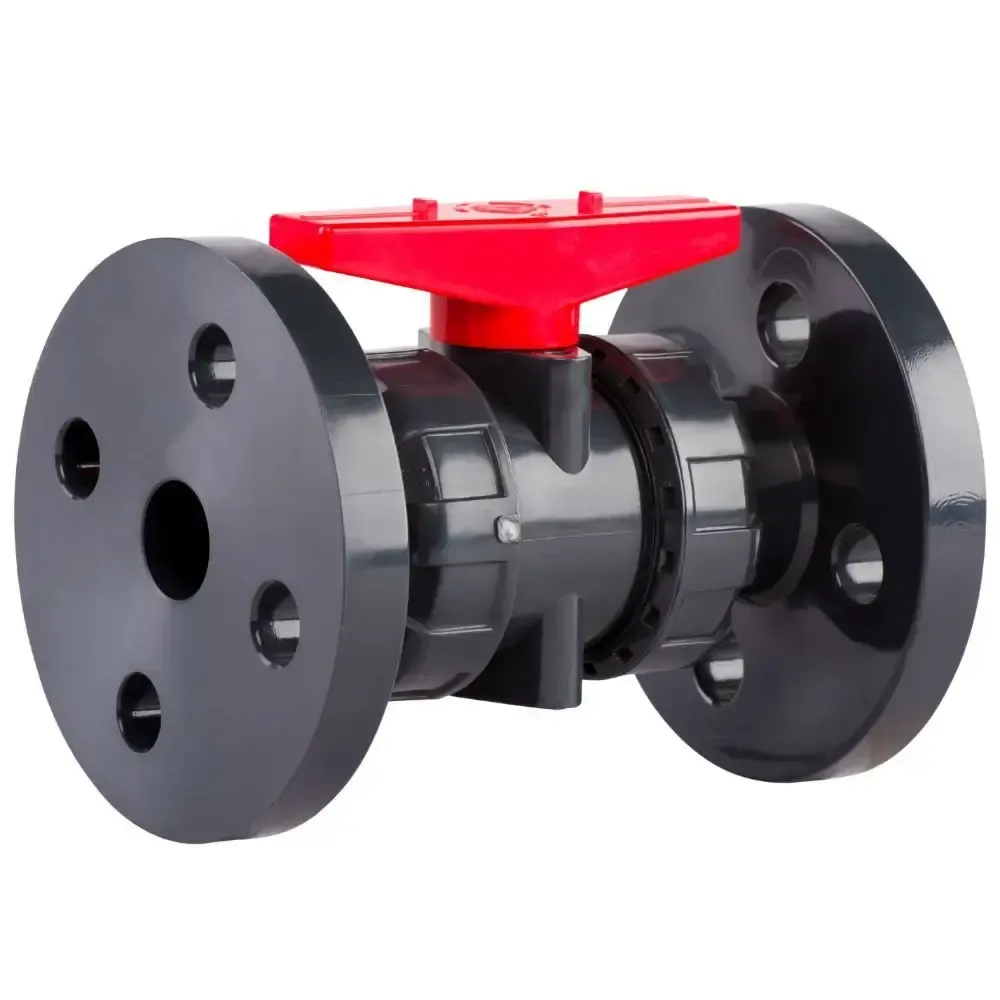

Flanged UV Stabalised PVC Manual Ball Valve

From $44.00

Inc GST
In Stock
Make an Enquiry

2 way UV stabilised ANSI 150 Flanged PVC true union ball valve. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton).  Also features a chem lock insert In the end so the true union can be removed for service work and the ball will not leak when in the closed position. Great PVC ball valve for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Model Size DN(mm) Media Pressure Media Temperature Torque (Nm)
BLP6F-L-E 1 25 Vacuum to 10 Bar 0°C to 60°C 4
BLP7F-L-E 1 ¼ 32 Vacuum to 10 Bar 0°C to 60°C 5
BLP8F-L-E 1 ½ 40 Vacuum to 10 Bar 0°C to 60°C 7.5
BLP9F-L-E 2 50 Vacuum to 10 Bar 0°C to 60°C 8.5
BLP10F-L-E 2 ½ 65 Vacuum to 10 Bar 0°C to 60°C 13
BLP11F-L-E 3 80 Vacuum to 10 Bar 0°C to 60°C 16
BLP12F-L-E 4 100 Vacuum to 10 Bar 0°C to 60°C 25

Change 'E' to 'V' for FKM seals.

UPVC ANSI 150 Flanged Ball Valve Dimensions

Size d C D L L1 W H1 H2 F M I n-e
15 15 60.5 95 134 52 84 52 27.5 31 - M6 4-15
20 20 70 105 144 54 90 59 32 33 - M6 4-15
25 25 79.5 125 160 62 106 67.5 37.25 40 - M6 4-19
32 32 89 140 178 70 116 77.5 42.75 52 - M8 4-19
40 40 98.5 150 195 79.5 128 90 50 52 - M8 4-19
50 50 120.7 165 215 85 140 106 60 70 - M8 4-19
65 63 139.7 182 320 133 210 136.5 76.5 84 45 M10 4-19
80 75 152 200 350 146 235 149.5 86 84 45 M10 8-19
100 90 190.5 228 395 160 260 175 107 121 49 M12 8-19

All dimensions in mm unless shown otherwise.

UPVC Flanged Manual Ball Valve

Number Part Name Raw Material QTY
3,4,8,9 O-RIng EPDM or FKM 7
1 Socket End UPVC 2
2 Cap UPVC 2
6 Shaft UPVC 1
7 Handle ABS 1
10 Lining UPVC 1
11 Anti-leak Ring PTFE 2
12 Ball UPVC 1
13 Body UPVC 1
14 Flange Buckle UPVC 2

Size 25mm to 100mm ANSI 150
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Manual

Others Also Bought

BLPF

Flanged UV Stabalised PVC Manual Ball Valve

Features:

Size 25mm to 100mm ANSI 150
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Manual

Description:

2 way UV stabilised ANSI 150 Flanged PVC true union ball valve. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton).  Also features a chem lock insert In the end so the true union can be removed for service work and the ball will not leak when in the closed position. Great PVC ball valve for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Model Size DN(mm) Media Pressure Media Temperature Torque (Nm)
BLP6F-L-E 1 25 Vacuum to 10 Bar 0°C to 60°C 4
BLP7F-L-E 1 ¼ 32 Vacuum to 10 Bar 0°C to 60°C 5
BLP8F-L-E 1 ½ 40 Vacuum to 10 Bar 0°C to 60°C 7.5
BLP9F-L-E 2 50 Vacuum to 10 Bar 0°C to 60°C 8.5
BLP10F-L-E 2 ½ 65 Vacuum to 10 Bar 0°C to 60°C 13
BLP11F-L-E 3 80 Vacuum to 10 Bar 0°C to 60°C 16
BLP12F-L-E 4 100 Vacuum to 10 Bar 0°C to 60°C 25

Change 'E' to 'V' for FKM seals.

.

Flanged UV Stabalised PVC Manual Ball Valve

BLPF

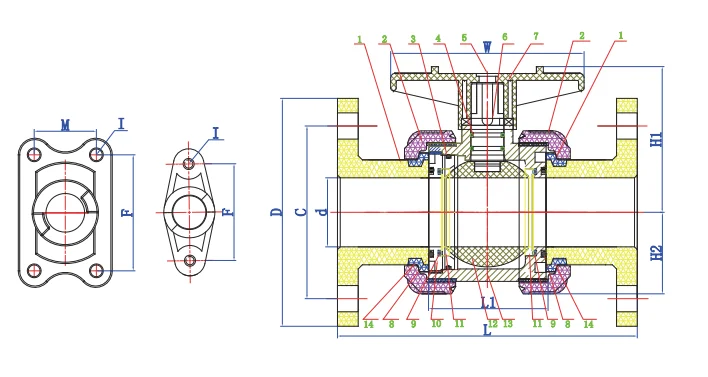

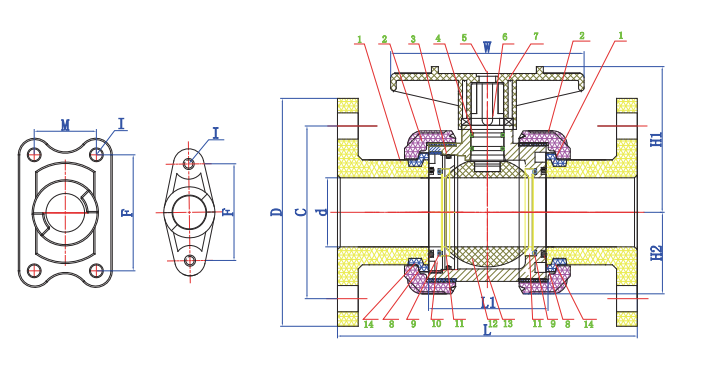

Dimensions:

UPVC ANSI 150 Flanged Ball Valve Dimensions

Size d C D L L1 W H1 H2 F M I n-e
15 15 60.5 95 134 52 84 52 27.5 31 - M6 4-15
20 20 70 105 144 54 90 59 32 33 - M6 4-15
25 25 79.5 125 160 62 106 67.5 37.25 40 - M6 4-19
32 32 89 140 178 70 116 77.5 42.75 52 - M8 4-19
40 40 98.5 150 195 79.5 128 90 50 52 - M8 4-19
50 50 120.7 165 215 85 140 106 60 70 - M8 4-19
65 63 139.7 182 320 133 210 136.5 76.5 84 45 M10 4-19
80 75 152 200 350 146 235 149.5 86 84 45 M10 8-19
100 90 190.5 228 395 160 260 175 107 121 49 M12 8-19

All dimensions in mm unless shown otherwise.

.

Flanged UV Stabalised PVC Manual Ball Valve

BLPF

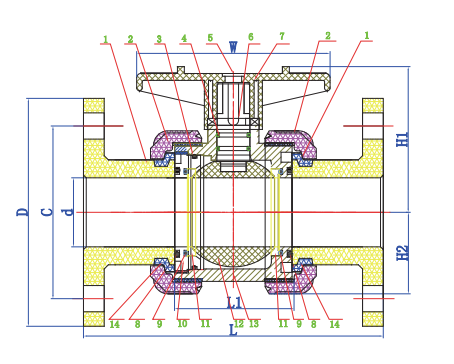

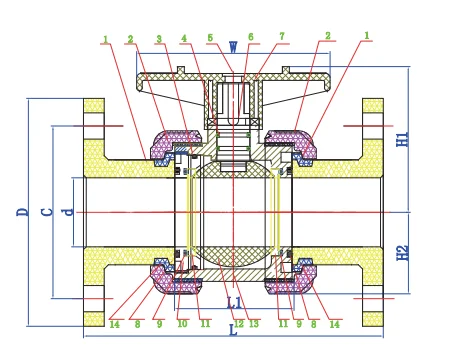

Construction:

UPVC Flanged Manual Ball Valve

Number Part Name Raw Material QTY
3,4,8,9 O-RIng EPDM or FKM 7
1 Socket End UPVC 2
2 Cap UPVC 2
6 Shaft UPVC 1
7 Handle ABS 1
10 Lining UPVC 1
11 Anti-leak Ring PTFE 2
12 Ball UPVC 1
13 Body UPVC 1
14 Flange Buckle UPVC 2
