SKU: BLPFE

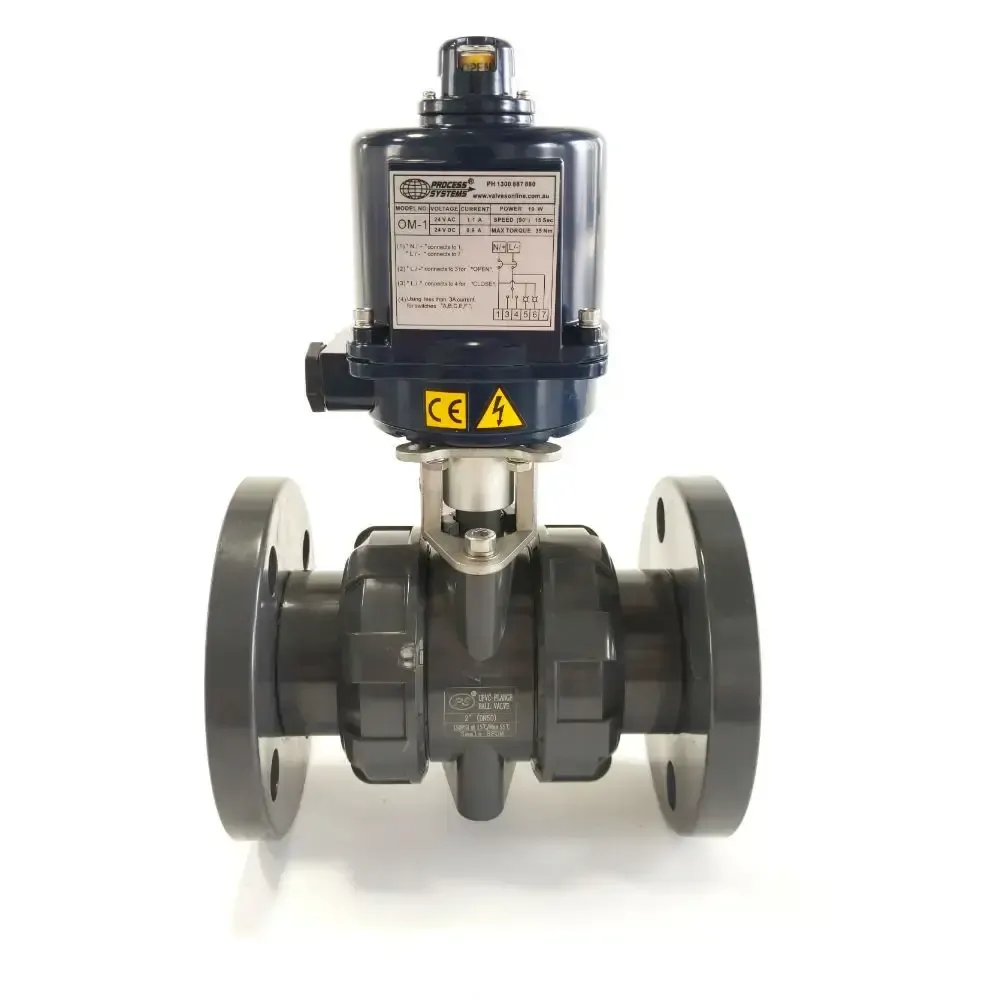

Flanged UV Stabalised PVC Electric Ball Valve

From $638.00

Inc GST
Sold Out
Make an Enquiry

2 way UV stabilised ANSI 150 Flanged PVC ball valve with an electric actuator (drive open, drive close). Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. IP67 electric actuator with visual indicator and extra limit switches. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Model Size DN(mm) Actuator Media Pressure Media Temperature
BLP4F-E*-E 1/2 15 0M-1 Vacuum to 10 Bar Ambient
BLP5F-E*-E 3/4 20 0M-1 Vacuum to 10 Bar Ambient
BLP6F-E*-E 1 25 0M-1 Vacuum to 10 Bar Ambient
BLP7F-E*-E 1 ¼ 32 0M-1 Vacuum to 10 Bar Ambient
BLP8F-E*-E 1 ½ 40 0M-1 Vacuum to 10 Bar Ambient
BLP9F-E*-E 2 50 0M-1 Vacuum to 10 Bar Ambient
BLP10F-E*-E 2 ½ 65 0M-A Vacuum to 10 Bar Ambient
BLP11F-E*-E 3 80 0M-A Vacuum to 10 Bar Ambient
BLP12F-E*-E 4 100 0M-A Vacuum to 10 Bar Ambient

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For FKM change the 'E' to 'V'.

Model Size Actuator ⌀d ⌀PCD ⌀D L L1 H2 n ⌀E P A B
BLP4F-E*-E 1/2 0M-1 15 60.5 95 134 52 27.5 4 15 61.5 108 155
BLP5F-E*-E 3/4 0M-1 20 70 105 144 54 32 4 15 72.5 108 155
BLP6F-E*-E 1 0M-1 25 79.5 125 160 62 37.25 4 19 77.5 108 155
BLP7F-E*-E 1-1/4 0M-1 32 89 140 178 70 42.75 4 19 84.5 108 155
BLP8F-E*-E 1-1/2 0M-1 40 98.5 150 195 79.5 50 4 19 92 108 155
BLP9F-E*-E 2 0M-1 50 120.7 165 215 85 60 4 19 107 108 155
BLP10F-E*-E 2-1/2 0M-A 63 139.7 182 320 133 76.5 4 19 122 130 200
BLP11F-E*-E 3 0M-A 75 152 200 350 146 86 8 19 132 130 200
BLP12F-E*-E 4 0M-A 90 190.5 228 395 160 107 8 19 180 130 200

All dimensions are in mm unless otherwise specified

Size 25mm to 100mm ANSI 150 Flanged
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Electric

Others Also Bought

BLPFE

Flanged UV Stabalised PVC Electric Ball Valve

Features:

Size 25mm to 100mm ANSI 150 Flanged
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Electric

Description:

2 way UV stabilised ANSI 150 Flanged PVC ball valve with an electric actuator (drive open, drive close). Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. IP67 electric actuator with visual indicator and extra limit switches. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Model Size DN(mm) Actuator Media Pressure Media Temperature
BLP4F-E*-E 1/2 15 0M-1 Vacuum to 10 Bar Ambient
BLP5F-E*-E 3/4 20 0M-1 Vacuum to 10 Bar Ambient
BLP6F-E*-E 1 25 0M-1 Vacuum to 10 Bar Ambient
BLP7F-E*-E 1 ¼ 32 0M-1 Vacuum to 10 Bar Ambient
BLP8F-E*-E 1 ½ 40 0M-1 Vacuum to 10 Bar Ambient
BLP9F-E*-E 2 50 0M-1 Vacuum to 10 Bar Ambient
BLP10F-E*-E 2 ½ 65 0M-A Vacuum to 10 Bar Ambient
BLP11F-E*-E 3 80 0M-A Vacuum to 10 Bar Ambient
BLP12F-E*-E 4 100 0M-A Vacuum to 10 Bar Ambient

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For FKM change the 'E' to 'V'.

.

Flanged UV Stabalised PVC Electric Ball Valve

BLPFE

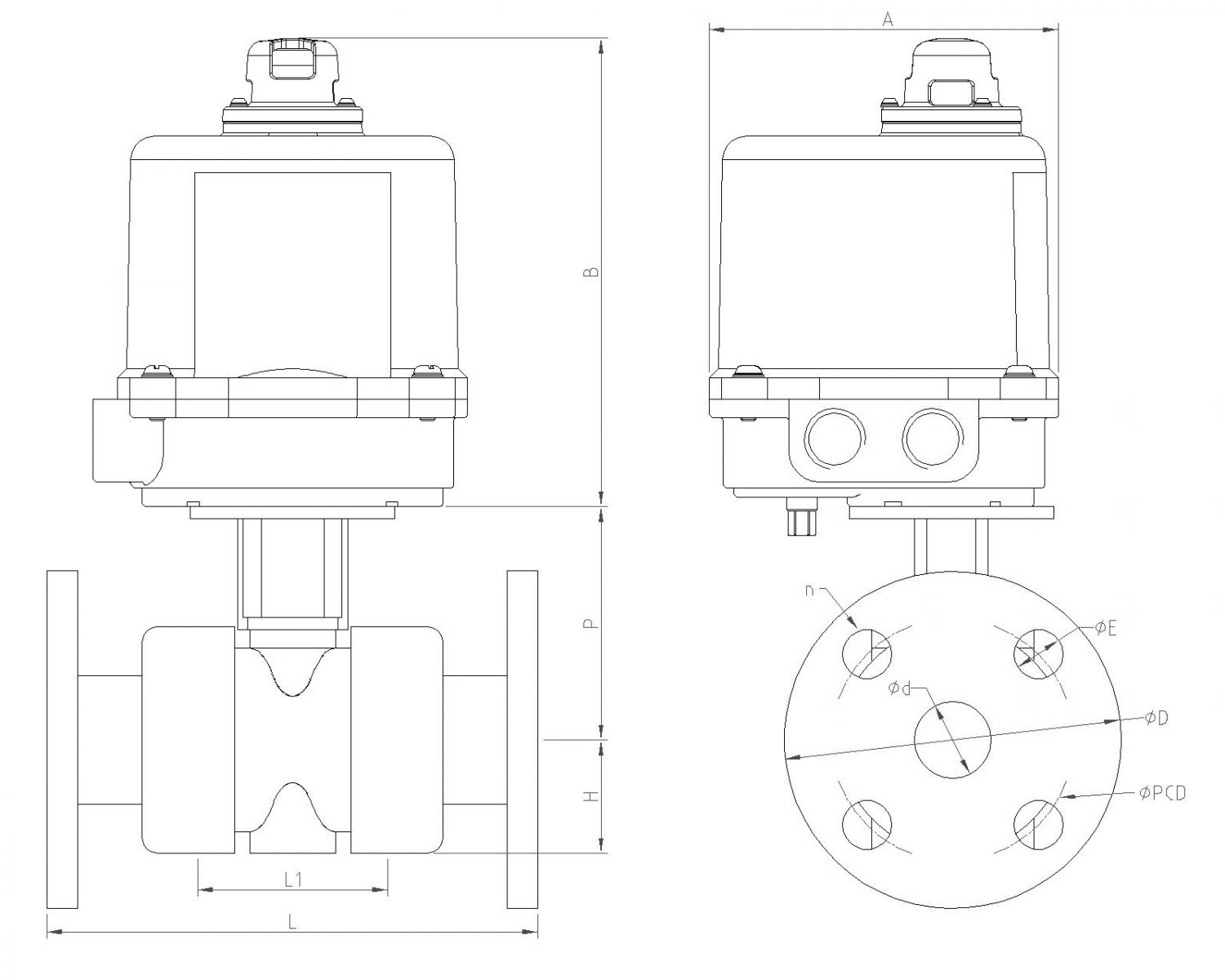

Dimensions:

Model Size Actuator ⌀d ⌀PCD ⌀D L L1 H2 n ⌀E P A B
BLP4F-E*-E 1/2 0M-1 15 60.5 95 134 52 27.5 4 15 61.5 108 155
BLP5F-E*-E 3/4 0M-1 20 70 105 144 54 32 4 15 72.5 108 155
BLP6F-E*-E 1 0M-1 25 79.5 125 160 62 37.25 4 19 77.5 108 155
BLP7F-E*-E 1-1/4 0M-1 32 89 140 178 70 42.75 4 19 84.5 108 155
BLP8F-E*-E 1-1/2 0M-1 40 98.5 150 195 79.5 50 4 19 92 108 155
BLP9F-E*-E 2 0M-1 50 120.7 165 215 85 60 4 19 107 108 155
BLP10F-E*-E 2-1/2 0M-A 63 139.7 182 320 133 76.5 4 19 122 130 200
BLP11F-E*-E 3 0M-A 75 152 200 350 146 86 8 19 132 130 200
BLP12F-E*-E 4 0M-A 90 190.5 228 395 160 107 8 19 180 130 200

All dimensions are in mm unless otherwise specified

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Hawleys are warranted by Hawleys to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Hawleys obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Hawleys and provided such defective product is returned to Hawleys freight prepaid and upon examination by Hawleys such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Hawleys representatives or employees. Hawleys reserves the right to change Valve and Brochure specifications without notice.

.
