SKU: BLPFDA

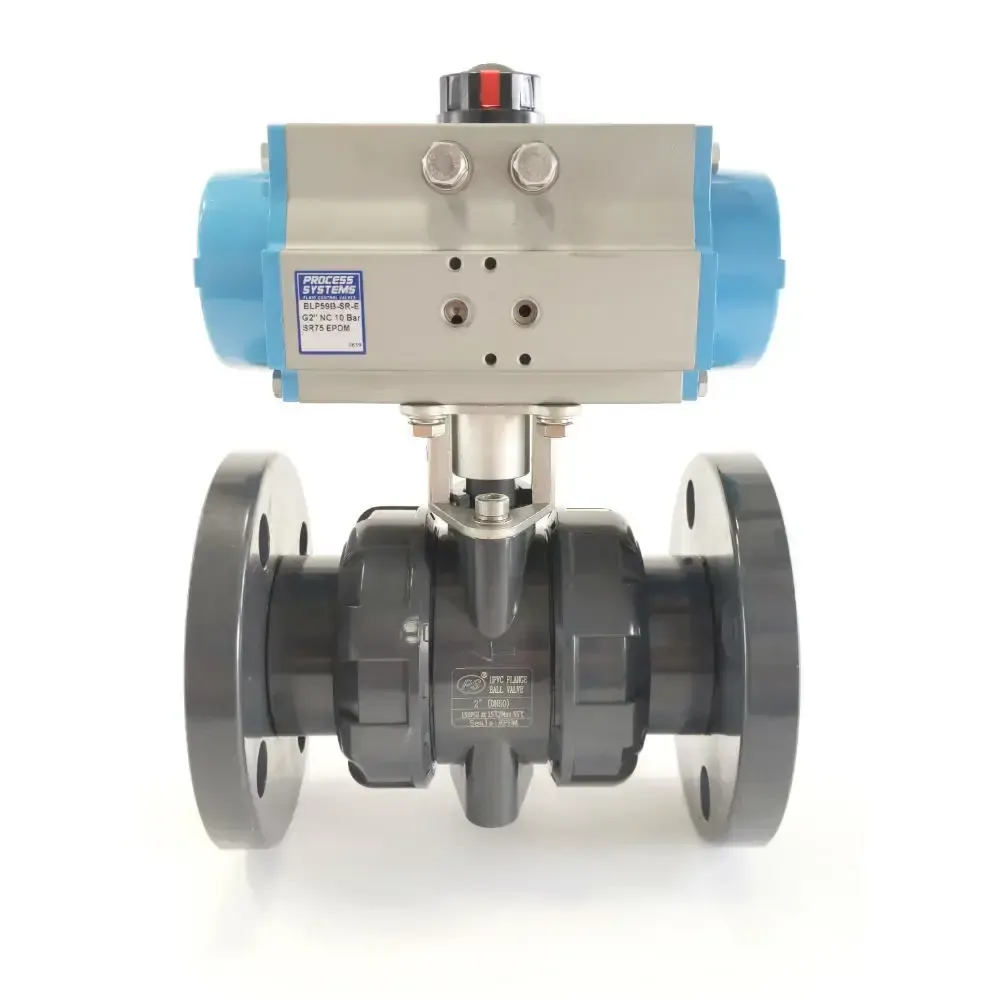

Flanged UV Stabalised PVC Double Acting Pneumatic Ball Valve

From $214.50

Inc GST
Sold Out
Make an Enquiry

2 way Flanged ANSI 150 UV stabilised PVC ball valve with double acting pneumatic actuator. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Anodised aluminium actuator with visual indicator. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLP6F-DA-E 1 25 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP7F-DA-E 1 ¼ 32 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP8F-DA-E 1 ½ 40 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP9F-DA-E 2 50 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP10F-DA-E 2 ½ 65 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP11F-DA-E 3 80 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP12F-DA-E 4 100 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"

*Change the 'E' to an 'V' for FKM

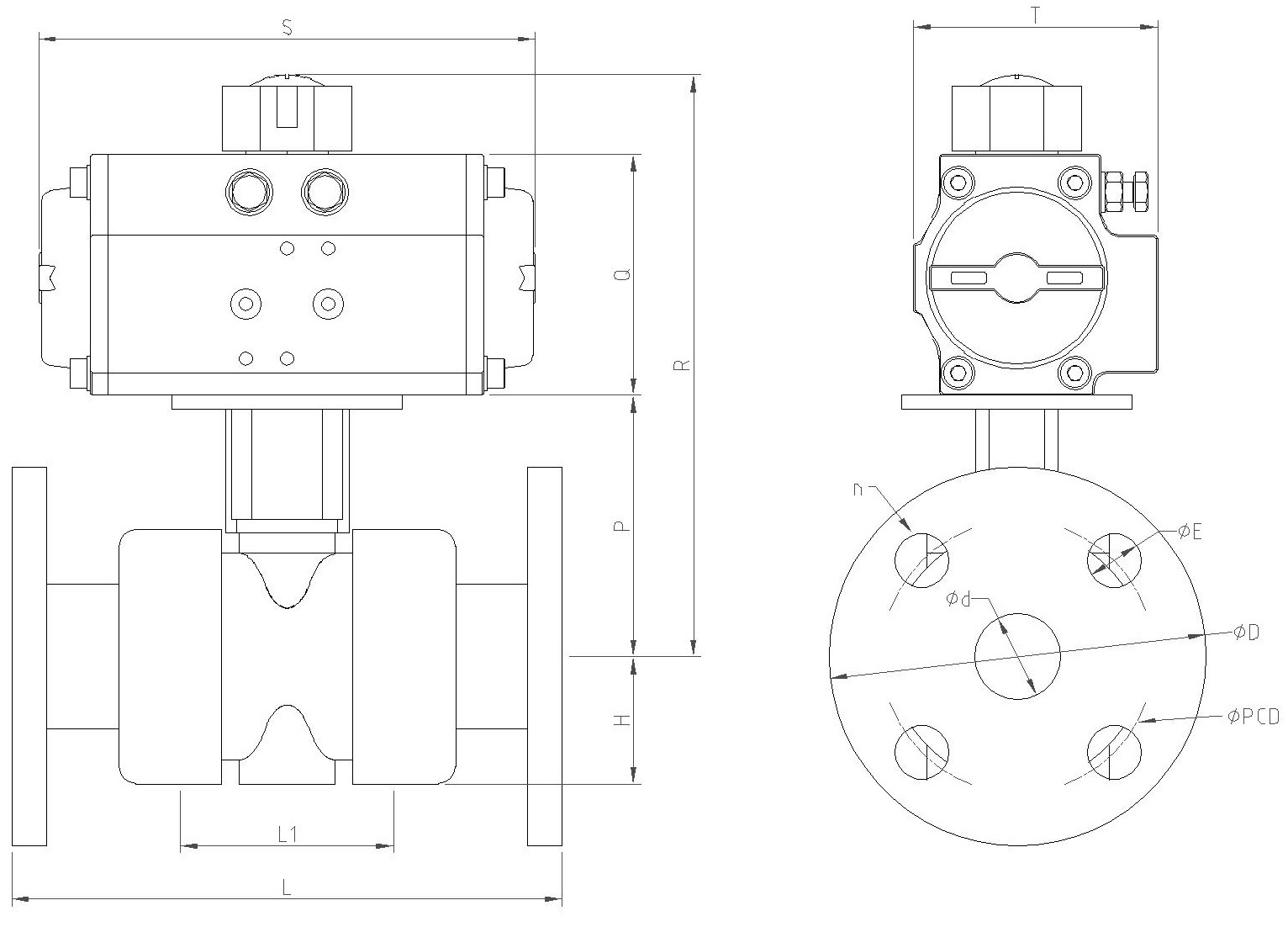

Model Size Actuator ⌀d ⌀PCD ⌀D L L1 H n ⌀E Q S T P R
BLP4F-DA-E 1/2 DA50 15 60.5 95 134 52 27.5 4 15 70 138 71 61.5 151.5
BLP5F-DA-E 3/4 DA50 20 70 105 144 54 32 4 15 70 138 71 72.5 162.5
BLP6F-DA-E 1 DA50 25 79.5 125 160 62 37.25 4 19 70 138 71 77.5 167.5
BLP7F-DA-E 1-1/4 DA63 32 89 140 178 70 42.75 4 19 80 162 80.5 84.5 185.5
BLP8F-DA-E 1-1/2 DA63 40 98.5 150 195 79.5 50 4 19 80 162 80.5 92 193
BLP9F-DA-E 2 DA63 50 120.7 165 215 85 60 4 19 80 162 80.5 107 208
BLP10F-DA-E 2-1/2 DA75 63 139.7 182 320 133 76.5 4 19 97 208 94.5 122 239
BLP11F-DA-E 3 DA75 75 152 200 350 146 86 8 19 97 208 94.5 132 249
BLP12F-DA-E 4 DA75 90 190.5 228 395 160 107 8 19 97 208 94.5 180 297

All dimensions are in mm unless shown otherwise

Size 25mm to 100mm ANSI 150 Flanged
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Double Acting Pneumatic

Others Also Bought

BLPFDA

Flanged UV Stabalised PVC Double Acting Pneumatic Ball Valve

Features:

Size 25mm to 100mm ANSI 150 Flanged
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Double Acting Pneumatic

Description:

2 way Flanged ANSI 150 UV stabilised PVC ball valve with double acting pneumatic actuator. Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Anodised aluminium actuator with visual indicator. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLP6F-DA-E 1 25 DA50 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP7F-DA-E 1 ¼ 32 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP8F-DA-E 1 ½ 40 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP9F-DA-E 2 50 DA63 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP10F-DA-E 2 ½ 65 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP11F-DA-E 3 80 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"
BLP12F-DA-E 4 100 DA75 Vacuum to 10 BAR Ambient 6 to 8 BAR 1/8"

*Change the 'E' to an 'V' for FKM

.

Flanged UV Stabalised PVC Double Acting Pneumatic Ball Valve

BLPFDA

Dimensions:

Model Size Actuator ⌀d ⌀PCD ⌀D L L1 H n ⌀E Q S T P R
BLP4F-DA-E 1/2 DA50 15 60.5 95 134 52 27.5 4 15 70 138 71 61.5 151.5
BLP5F-DA-E 3/4 DA50 20 70 105 144 54 32 4 15 70 138 71 72.5 162.5
BLP6F-DA-E 1 DA50 25 79.5 125 160 62 37.25 4 19 70 138 71 77.5 167.5
BLP7F-DA-E 1-1/4 DA63 32 89 140 178 70 42.75 4 19 80 162 80.5 84.5 185.5
BLP8F-DA-E 1-1/2 DA63 40 98.5 150 195 79.5 50 4 19 80 162 80.5 92 193
BLP9F-DA-E 2 DA63 50 120.7 165 215 85 60 4 19 80 162 80.5 107 208
BLP10F-DA-E 2-1/2 DA75 63 139.7 182 320 133 76.5 4 19 97 208 94.5 122 239
BLP11F-DA-E 3 DA75 75 152 200 350 146 86 8 19 97 208 94.5 132 249
BLP12F-DA-E 4 DA75 90 190.5 228 395 160 107 8 19 97 208 94.5 180 297

All dimensions are in mm unless shown otherwise

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.
