SKU: BLCFSR

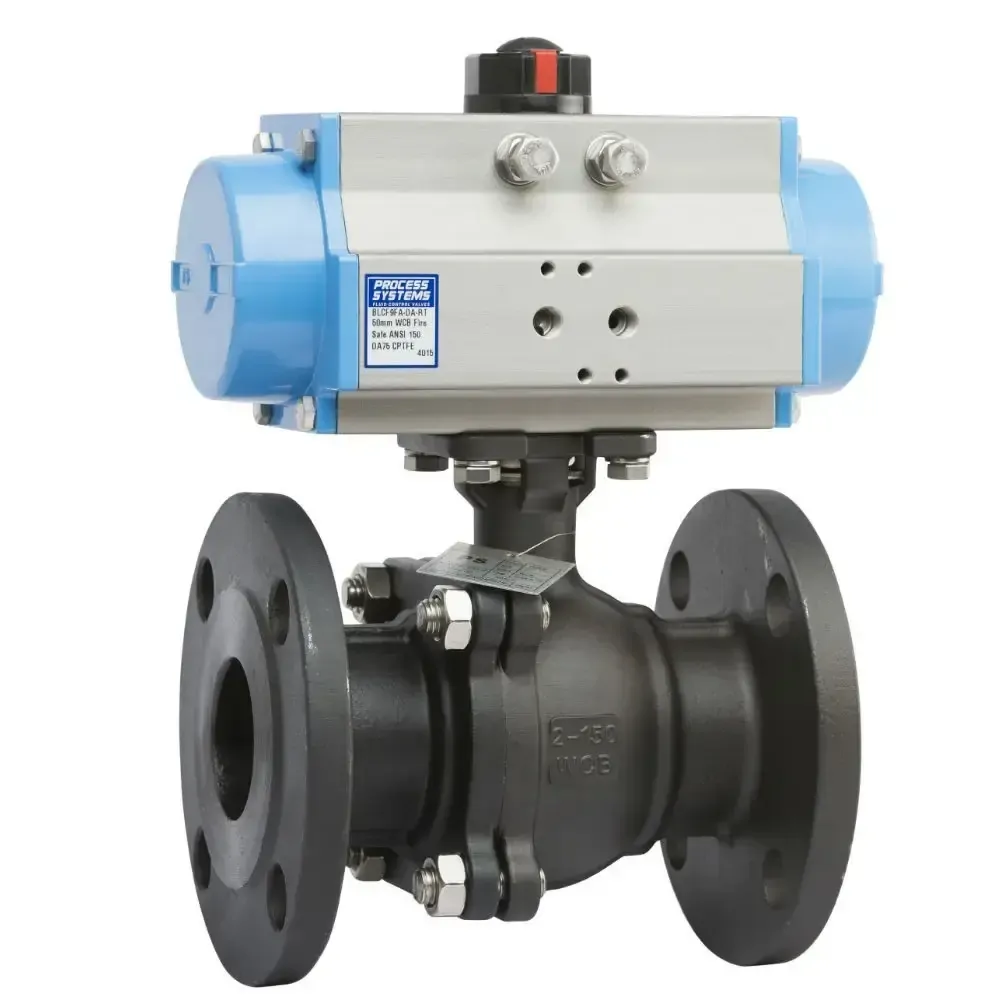

Cast Steel Spring Return ANSI 150 Flanged Fire Safe Ball Valve

From $247.50

Inc GST
Sold Out
Make an Enquiry

Two piece two way ANSI 150 lb flanged fire safe approved ball valve, spring return pneumatic operation. Black Carbon Steel body, PTFE seats, FKM backing ring, live loaded packing and anti static device. Anodized aluminium actuator with visual indictor and namur interface. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598. Firesafe Approved API607 Sixth Edition, Cert. No 249037. Direct coupled anodiesed aluminium pneumatic spring return actuator with visual indicator. Media temp -20°C to 180°C.

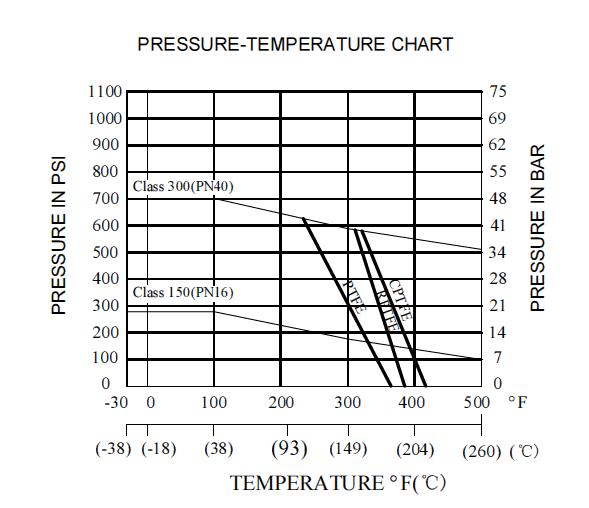

Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLCF54FA-SR-RT 15 SR50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF55FA-SR-RT 20 SR63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF56FA-SR-RT 25 SR63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF57FA-SR-RT 32 SR75 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF58FA-SR-RT 40 SR75 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF59FA-SR-RT 50 SR88 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF510FA-SR-RT 63 SR100 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF511FA-SR-RT 80 SR115 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF512FA-SR-RT 100 SR125 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF513FA-SR-RT 125 SR145 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF514FA-SR-RT 150 SR180 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF515FA-SR-RT 200 SR200 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

Spring Return Cast Steel Fire Safe Ball Valve

Spring Return Flanged Fire Safe Cast Steel Ball Valve

Model Size (mm) Actuator Ød L f b Z-Ød1 ØD ØD1 ØD2 h J K P
BLCF54FA-SR-RT 15 SR50 15 108 2 11 4-Ø15 89 60.5 35 48 90 138 1/8"
BLCF55FA-SR-RT 20 SR63 20 117 2 11 4-Ø15 98 70 43 53 100 162 1/8"
BLCF56FA-SR-RT 25 SR63 25 127 2 12 4-Ø15 108 79.5 51 58.5 100 162 1/8"
BLCF57FA-SR-RT 32 SR75 32 140 2 13 4-Ø15 117 89 64 71 117 208 1/8"
BLCF58FA-SR-RT 40 SR75 40 165 2 15 4-Ø15 127 98.5 73 76.5 117 208 1/8"
BLCF59FA-SR-RT 50 SR88 50 178 2 16 4-Ø19 152 120.05 92 85 136 245 1/8"
BLCF510FA-SR-RT 65 SR100 65 190 2 18 4-Ø19 178 139.5 105 110 142 266 1/8"
BLCF511FA-SR-RT 80 SR115 80 203 2 19 4-Ø19 190 152.5 127 122.5 172 310 1/4"
BLCF512FA-SR-RT 100 SR125 100 229 2 24 8-Ø19 229 190.5 157 145.5 184 340 1/4"
BLCF513FA-SR-RT 125 SR145 125 356 2 24 8-Ø19 254 216 186 185 209 401 1/4"
BLCF514FA-SR-RT 150 SR180 150 394 2 26 8-Ø22 279 241.5 216 202.5 252 482 1/4"
BLCF515FA-SR-RT 200 SR200 200 457 2 29 8-Ø22 343 298.5 270 257 274 532 1/4"

All dimensions in mm unless shown otherwise.

Spring Return Flanged Fire Safe Cast Steel Ball Valve

Item Description Material
1 Cap WCB
2 Bolt SS304
3 Body Gasket Pure Graphite
4 Body WCB
5 Ball SS316
6 Ball Seat R-PTFE(15%)
7 Stem SS316
Item Description Material
8 Thrust Washer PTFE
9 O-Ring Viton
10 Stem Packing Pure Graphite
11 Packing Ring SS304
12 Belleville Washer SS301
13 Nut Stopper SS304
14 Nut SS304
15 Pnuematic Actuator Anodized Aluminium



Size 15mm to 200mm
Body Carbon Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Spring Return Pneumatic
Fire Safe API607 6th E. Cert. No 218781

Others Also Bought

BLCFSR

Cast Steel Spring Return ANSI 150 Flanged Fire Safe Ball Valve

Features:

Size 15mm to 200mm
Body Carbon Steel
Seat PTFE
Pressure 150 pound
Temperature -20°C to 180°C
Actuation Spring Return Pneumatic
Fire Safe API607 6th E. Cert. No 218781

Description:

Two piece two way ANSI 150 lb flanged fire safe approved ball valve, spring return pneumatic operation. Black Carbon Steel body, PTFE seats, FKM backing ring, live loaded packing and anti static device. Anodized aluminium actuator with visual indictor and namur interface. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598. Firesafe Approved API607 Sixth Edition, Cert. No 249037. Direct coupled anodiesed aluminium pneumatic spring return actuator with visual indicator. Media temp -20°C to 180°C.

Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLCF54FA-SR-RT 15 SR50 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF55FA-SR-RT 20 SR63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF56FA-SR-RT 25 SR63 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF57FA-SR-RT 32 SR75 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF58FA-SR-RT 40 SR75 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF59FA-SR-RT 50 SR88 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/8"
BLCF510FA-SR-RT 63 SR100 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF511FA-SR-RT 80 SR115 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF512FA-SR-RT 100 SR125 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF513FA-SR-RT 125 SR145 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF514FA-SR-RT 150 SR180 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"
BLCF515FA-SR-RT 200 SR200 Vacuum (29" Hg) to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR 1/4"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

Spring Return Cast Steel Fire Safe Ball Valve

.

Cast Steel Spring Return ANSI 150 Flanged Fire Safe Ball Valve

BLCFSR

Dimensions:

Spring Return Flanged Fire Safe Cast Steel Ball Valve

Model Size (mm) Actuator Ød L f b Z-Ød1 ØD ØD1 ØD2 h J K P
BLCF54FA-SR-RT 15 SR50 15 108 2 11 4-Ø15 89 60.5 35 48 90 138 1/8"
BLCF55FA-SR-RT 20 SR63 20 117 2 11 4-Ø15 98 70 43 53 100 162 1/8"
BLCF56FA-SR-RT 25 SR63 25 127 2 12 4-Ø15 108 79.5 51 58.5 100 162 1/8"
BLCF57FA-SR-RT 32 SR75 32 140 2 13 4-Ø15 117 89 64 71 117 208 1/8"
BLCF58FA-SR-RT 40 SR75 40 165 2 15 4-Ø15 127 98.5 73 76.5 117 208 1/8"
BLCF59FA-SR-RT 50 SR88 50 178 2 16 4-Ø19 152 120.05 92 85 136 245 1/8"
BLCF510FA-SR-RT 65 SR100 65 190 2 18 4-Ø19 178 139.5 105 110 142 266 1/8"
BLCF511FA-SR-RT 80 SR115 80 203 2 19 4-Ø19 190 152.5 127 122.5 172 310 1/4"
BLCF512FA-SR-RT 100 SR125 100 229 2 24 8-Ø19 229 190.5 157 145.5 184 340 1/4"
BLCF513FA-SR-RT 125 SR145 125 356 2 24 8-Ø19 254 216 186 185 209 401 1/4"
BLCF514FA-SR-RT 150 SR180 150 394 2 26 8-Ø22 279 241.5 216 202.5 252 482 1/4"
BLCF515FA-SR-RT 200 SR200 200 457 2 29 8-Ø22 343 298.5 270 257 274 532 1/4"

All dimensions in mm unless shown otherwise.

.

Cast Steel Spring Return ANSI 150 Flanged Fire Safe Ball Valve

BLCFSR

Construction:

Spring Return Flanged Fire Safe Cast Steel Ball Valve

Item Description Material
1 Cap WCB
2 Bolt SS304
3 Body Gasket Pure Graphite
4 Body WCB
5 Ball SS316
6 Ball Seat R-PTFE(15%)
7 Stem SS316
Item Description Material
8 Thrust Washer PTFE
9 O-Ring Viton
10 Stem Packing Pure Graphite
11 Packing Ring SS304
12 Belleville Washer SS301
13 Nut Stopper SS304
14 Nut SS304
15 Pnuematic Actuator Anodized Aluminium



WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Hawleys are warranted by Hawleys to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Hawleys obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Hawleys and provided such defective product is returned to Hawleys freight prepaid and upon examination by Hawleys such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Hawleys representatives or employees. Hawleys reserves the right to change Valve and Brochure specifications without notice.
