Features:
Width 25mm to 100mm
Thickness 3mm
Construction Woven Fiberglass Web Tape
Temperature 550°C
Length 30m

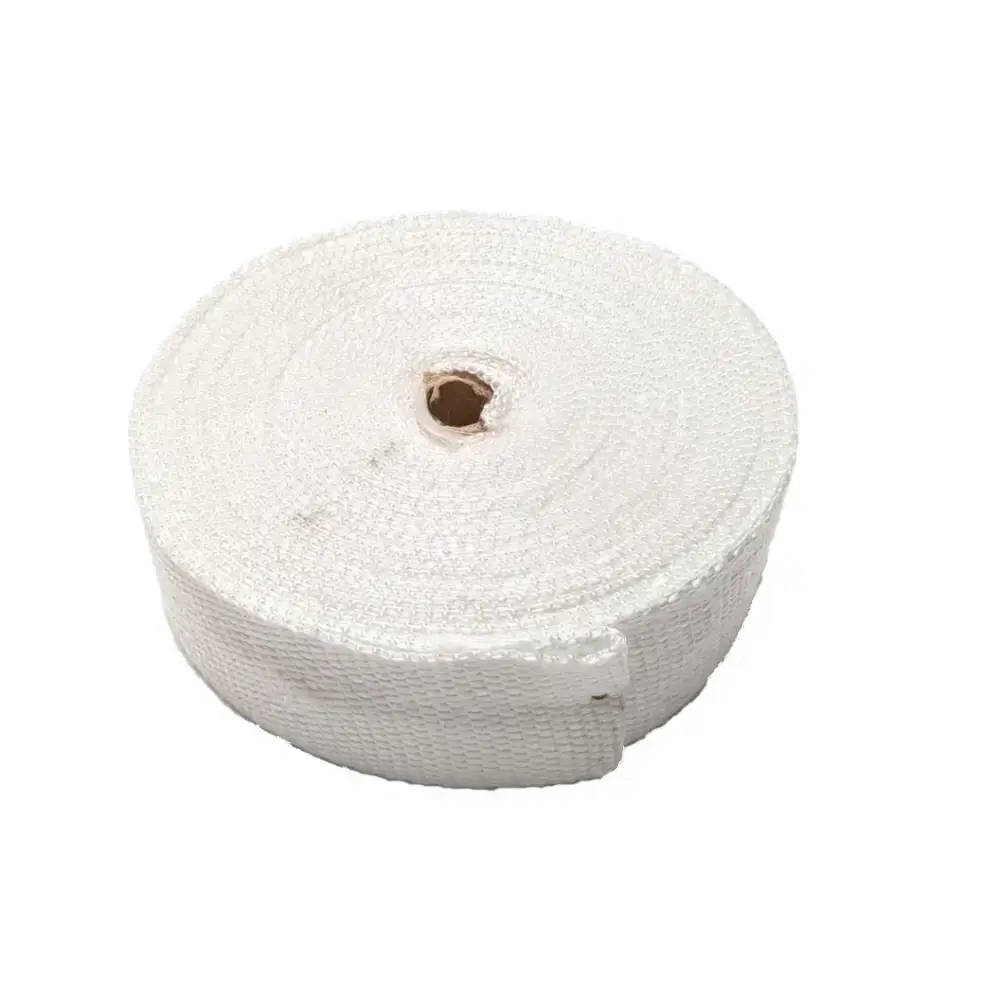

The Hawleys Woven Web Tape is an insulated fibreglass cloth capable of withstanding temperatures of up to 550°C. It is an excellent thermal insulator and used regularly for pipe or exhaust lagging. Been fibreglass it has great strength while retaining its flexibility and workability due to its cloth form. It has a very small bend radius allowing it to be tightly wrapped aroudn small pipes and objects.
Chemical Composition | |
---|---|
SiO2 | 58,00% |
A12O3 | 12,00% |
CaO | 17,00% |
B2O3 | 8,00% |
MgO | 4,50% |
Fe2O3 | 0,5% |
Thermal Conductivity | |
---|---|
150°C | 0,05K col/m H°C |
250°C | 0,06K col/m H°C |
350°C | 0,08K col/m H°C |
Physical Mechanical Characterisitics | |
---|---|
Density | 1,00 kg/dm3 (+/-10%) |
Traction Strength | 345,00 kg/dm3 |
Elongation | 4,80% |
Softening Temperature | 740°C |
Melting Temperature | 1010°C |
Width 25mm to 100mm
Thickness 3mm
Construction Woven Fiberglass Web Tape
Temperature 550°C
Length 30m
What is a Fiber Glass Woven Web Tape?
Fiberglass Woven Web tape is an insulated woven cloth made of fiberglass yarns woven together. This makes it extremely strong and very heat resistant allowing it to withstand high heat loads while providing effective insulation.
How does a Fiber Glass Web Tape work?
Fiberglass woven web tape works by insulating a pipe or an object (it is most commonly used as pipe lagging). As it is extremely heat resistant it allows an effective insulation of both the pipe from external temperatures (think heat loss) and the external environment from the pipe.
How long will my Fiber Glass Weven Tape last?
Fiberglass is a very hardy material so will last a very long time however this length will really depend upon the environment in which it operates.
How do I install Fiberglass Tape?
This really varies depending upon the application and the installer however it is most commonly wound around pipes or objects in an overlapping spiral configuration to form the most effective barrier.
What are typical uses of Woven Fiberglass Tape?
The most common use for this web tape is for pipe lagging however it can have a very wide potential use in industry.
How long will my product take to get to me?
This depends upon where you are based and the freight method chosen. If the express freight option is selected it is usually next day delivery to metropolitan areas in Australia for under 5kg. If free freight has been selected it will go by road freight which can be anywhere from 1 to 10 days depending upon your location. It usually averages 3 days.
What warranty do I get?
All of our products come standard with a 12 month warranty. The good news is we have very strict quality controls and all produt is tested and inspected before it leaves our factory so you can be assured of a quality product.
