SKU: FIBROLAG

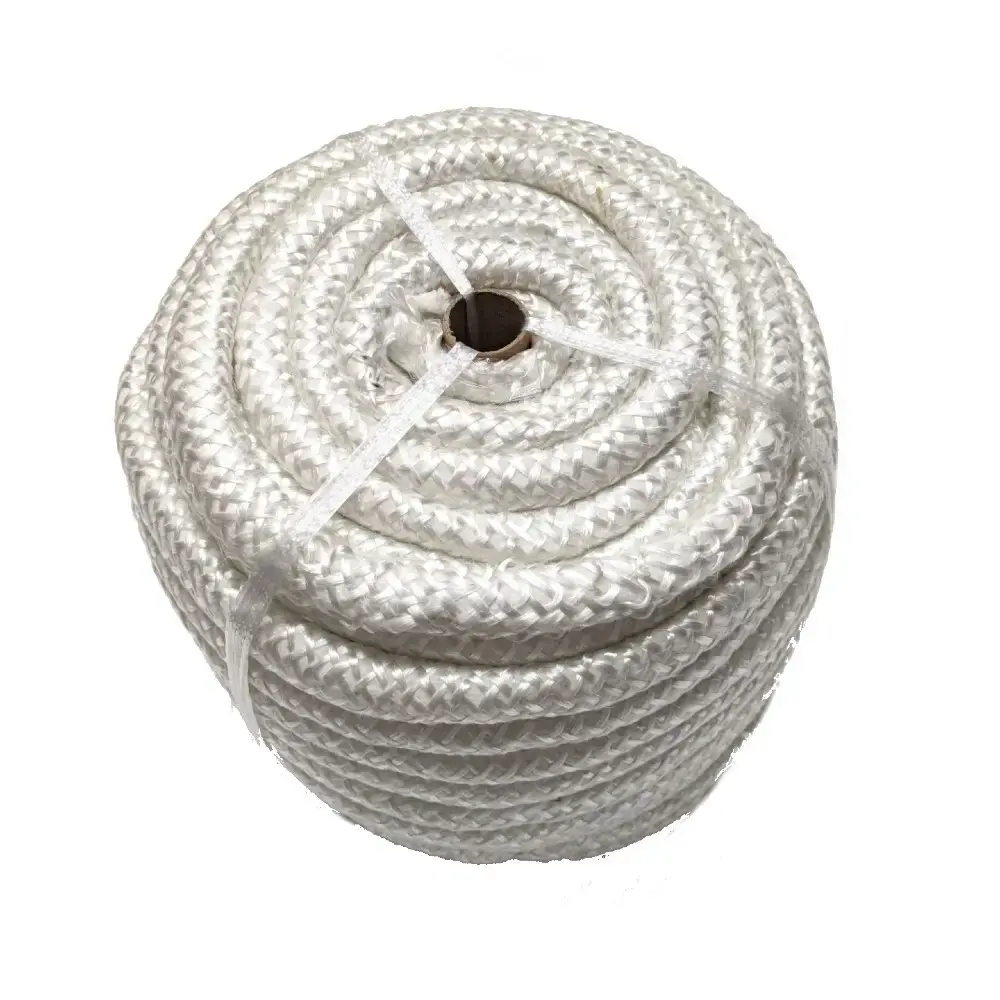

Fibreglass Rope Lagging

From $46.20

Inc GST
In Stock
Make an Enquiry

The Hawelys fiberglass lagging comes in lengths of 30 meters and have Classification Temperature of up to 550°C. It is made from continuous fibreglass filament which is braided with a fibreglass yarn making it pliable, have a small bend radius and long lasting.

Chemical Composition
Silicon Dioxide (SiO2) 58%
Aluminium Oxide (Al₂O₃) 12%
Calcium Oxide (CaO) 17%
Boric Oxide (B₂O₃) 8%
Magnesium Oxide (MgO) 4.50%
Ferric Oxide (Fe₂O₃) 0.50%
Thermal Conductivity
150°C 0.05K col/m H°C
250°C 0.06K col/m H°C
350°C 0.08K col/m H°C



Mechanical Properties
Density 1.00 kg/dm3 (+/-10%)
Traction Strength 345.00 kg/dm3
Elongation 4.80%
Softening Temperature 740°C
Melting Temperature 1010°C

Thickness 12mm to 50mm
Length 30 meters
Construction Fiberglass Rope
Temperature 550°C
Use Lagging

FIBROLAG

Fibreglass Rope Lagging

Features:

Thickness 12mm to 50mm
Length 30 meters
Construction Fiberglass Rope
Temperature 550°C
Use Lagging

Description:

The Hawelys fiberglass lagging comes in lengths of 30 meters and have Classification Temperature of up to 550°C. It is made from continuous fibreglass filament which is braided with a fibreglass yarn making it pliable, have a small bend radius and long lasting.

Chemical Composition
Silicon Dioxide (SiO2) 58%
Aluminium Oxide (Al₂O₃) 12%
Calcium Oxide (CaO) 17%
Boric Oxide (B₂O₃) 8%
Magnesium Oxide (MgO) 4.50%
Ferric Oxide (Fe₂O₃) 0.50%
Thermal Conductivity
150°C 0.05K col/m H°C
250°C 0.06K col/m H°C
350°C 0.08K col/m H°C



Mechanical Properties
Density 1.00 kg/dm3 (+/-10%)
Traction Strength 345.00 kg/dm3
Elongation 4.80%
Softening Temperature 740°C
Melting Temperature 1010°C

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult Hawleys Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by Hawleys are warranted by Hawleys to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. Hawleys obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of Hawleys and provided such defective product is returned to Hawleys freight prepaid and upon examination by Hawleys such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from Hawleys representatives or employees. Hawleys reserves the right to change Valve and Brochure specifications without notice.

.
