Features:
Sheet Size 1500mm x 1500mm
Thickness 1.5mm to 3.0mm
Temperature Limit -240°C ~ 270°C
Maximum Pressure 200 BAR
pH Range 0 - 14

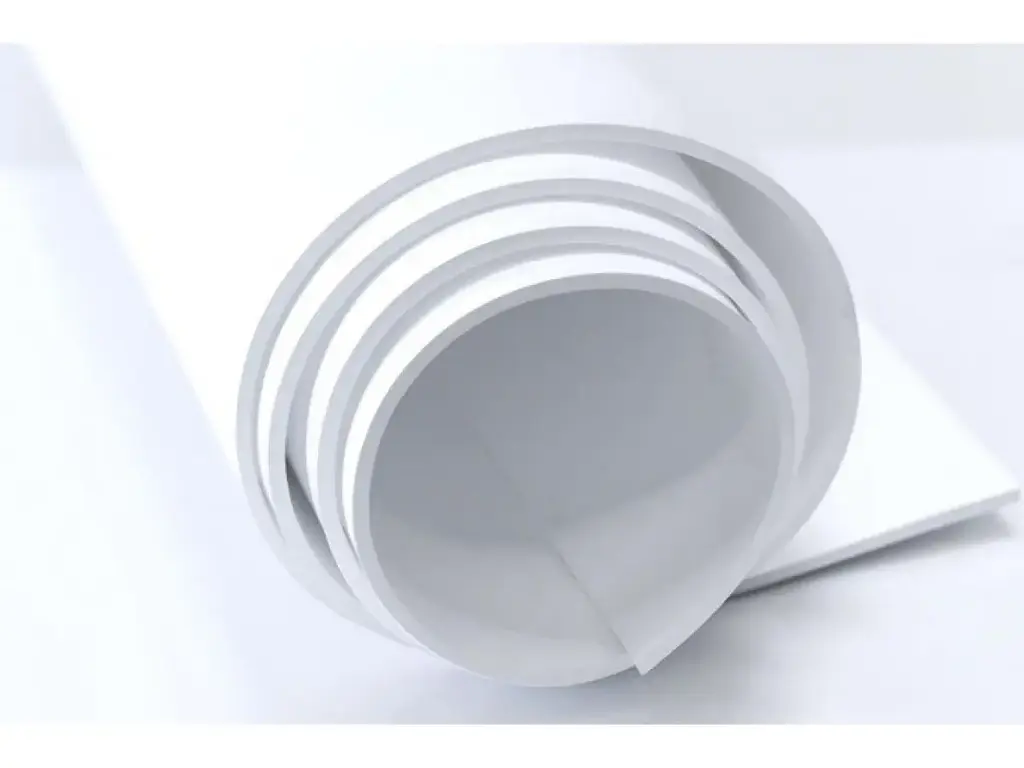

This gasket sheet is made from 100% multi-directionally expanded PTFE and comes in 1500mm x 1500mm sheets. Because it is dimensionally stable, it is ideal for many flange conditions. It has all of the benefits of conventional PTFE without the creep and cold flow that is commonly associated with this material.
Key features
* Chemically inert
* Dimensionally stable
* High tensile strength
* Resistant to creep & cold flow
Key benefits
* Versatile: use with all types of flanges & fluids
* Seals irregular flanges
* Retains stress, minimum re-torquing required
* Sealing reliability
* Long shelf life
* Easy to cut
* Light Clamping Force
Item | Value |
---|---|
Density | 0.75~0.95g/cm³ |
Temperature | -200~+230°C |
Pressure | 200 Bar |
Compressibility | 45% |
Recovery | 15% |
Leakage Rate | 0.1~0.00002(cm³/s) |
Ph Range | 0~14 |
