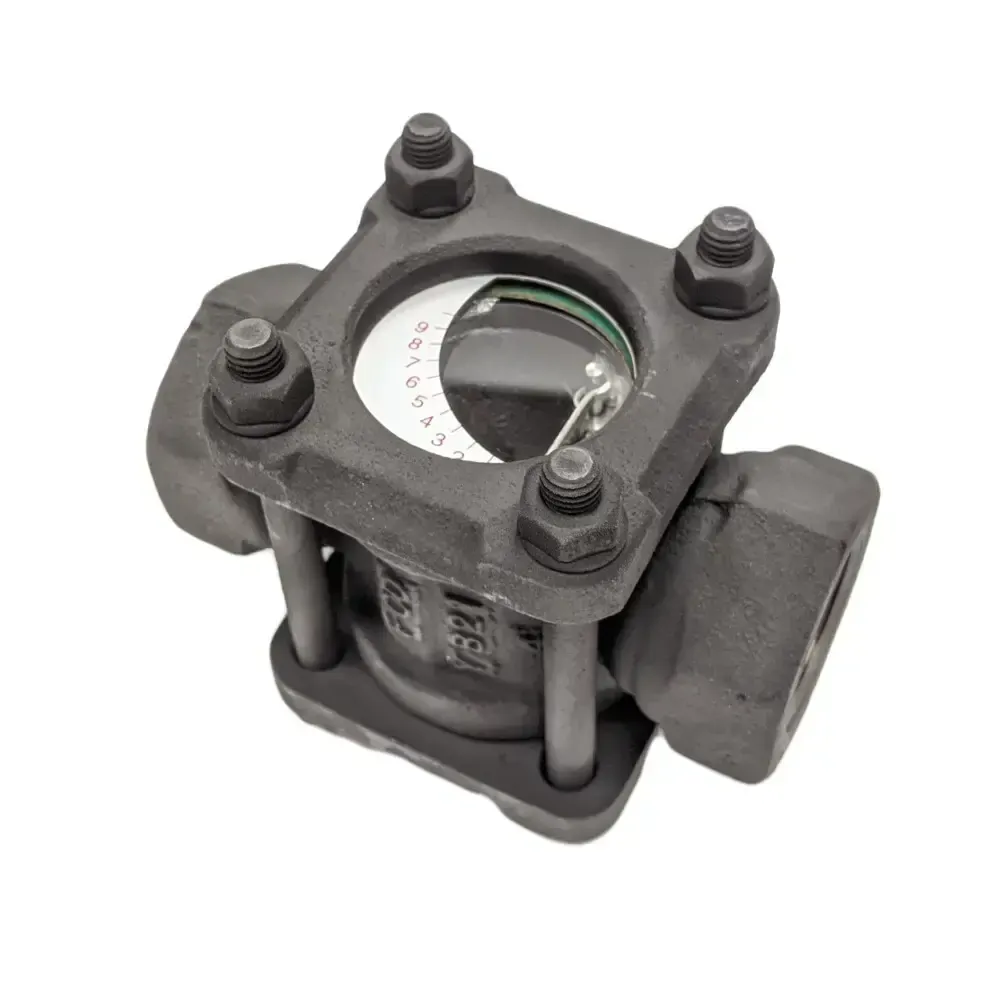

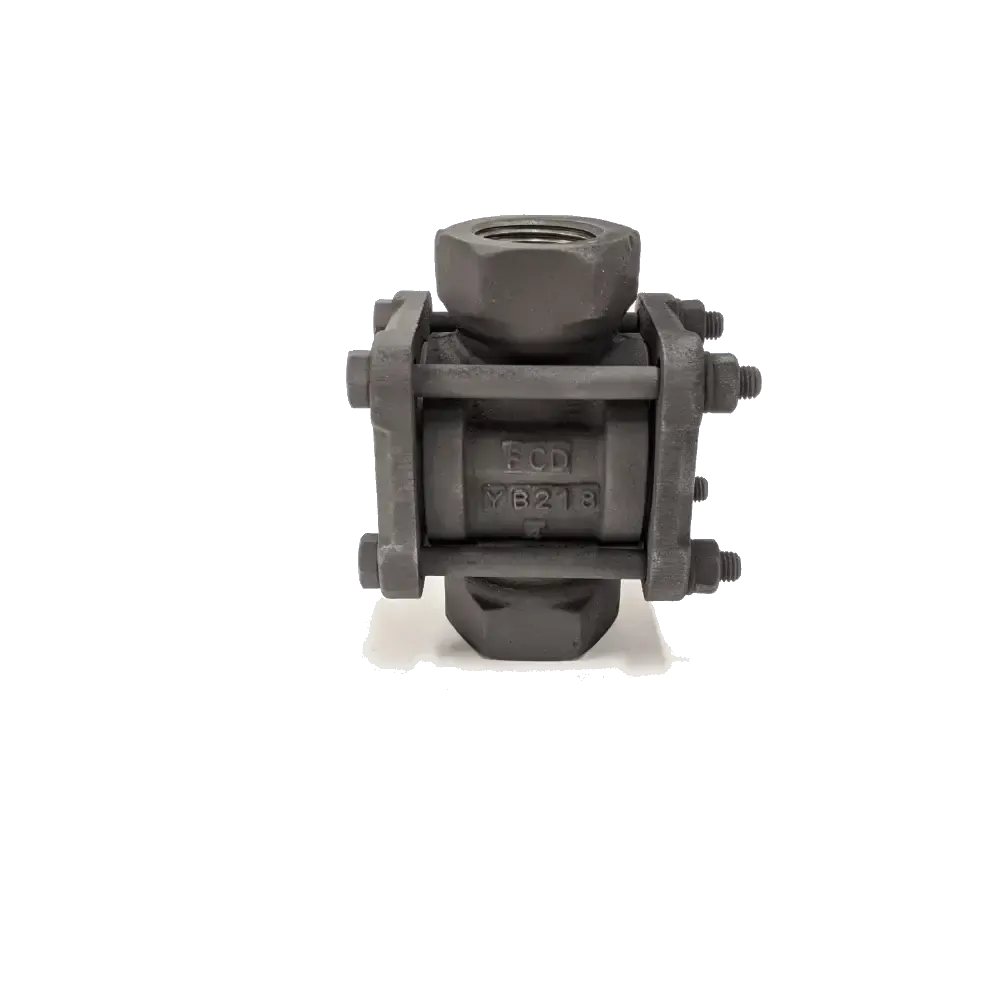

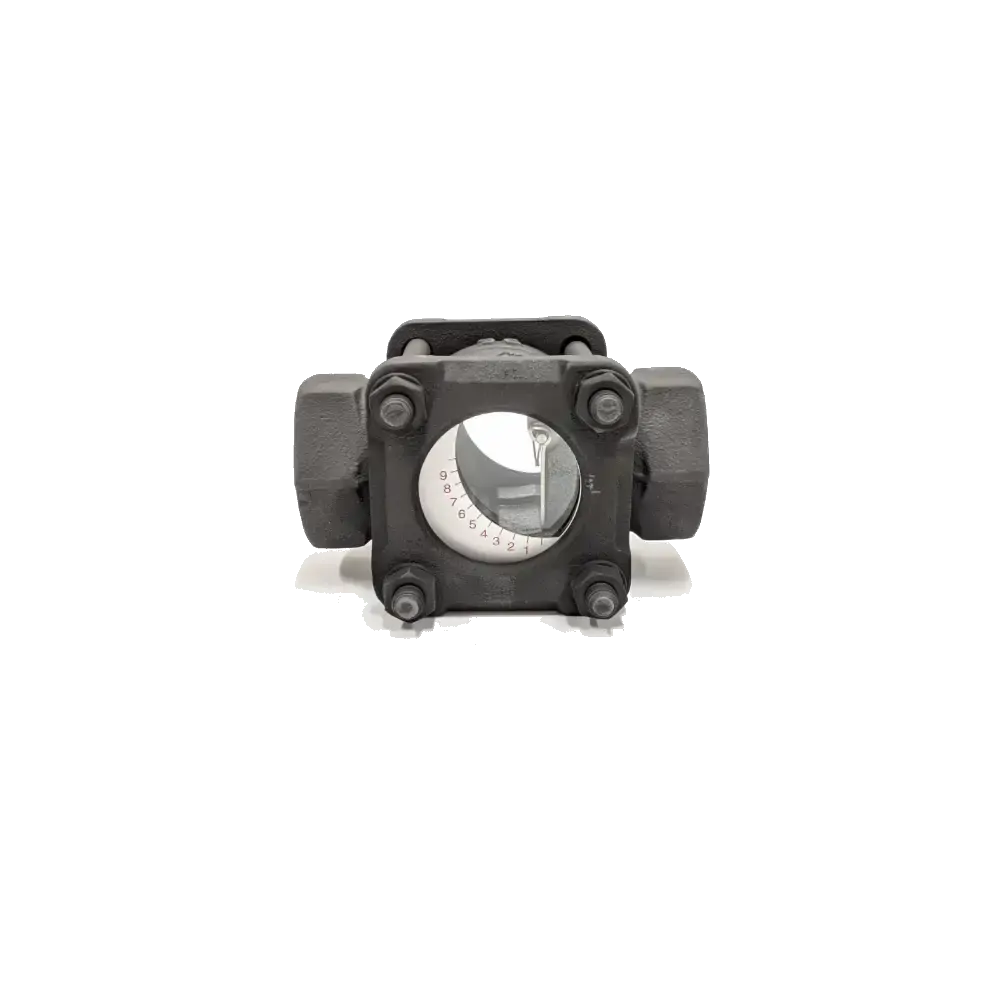

Features:
Size 1/2" to 2" BSPT
Body Ductile Iron
Pressure Range 0 to 10 BAR
Temperature 0 to 150°C
Application | Water| Oil & compatible fluids |
---|---|
Type | Flap Sight Glass |
Max Pressure | 10 Bar |
Temperature | 0°C to 150°C |
Connection | BSPT (ISO 7.1) |
Max Thermal Shock | 100°C |
Body | Ductile cast iron |
Glass | Hardened glass |
Flap | Stainless steel |

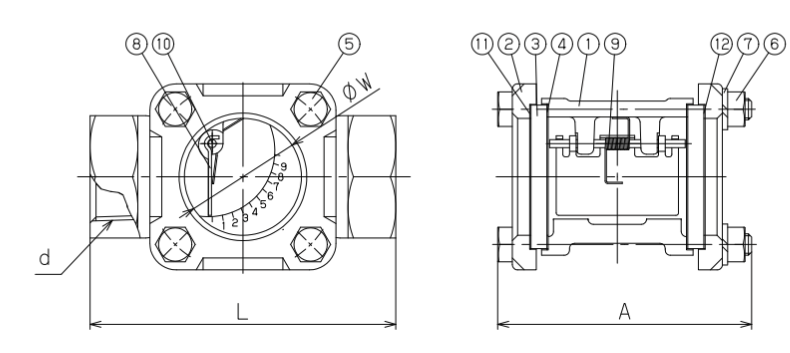

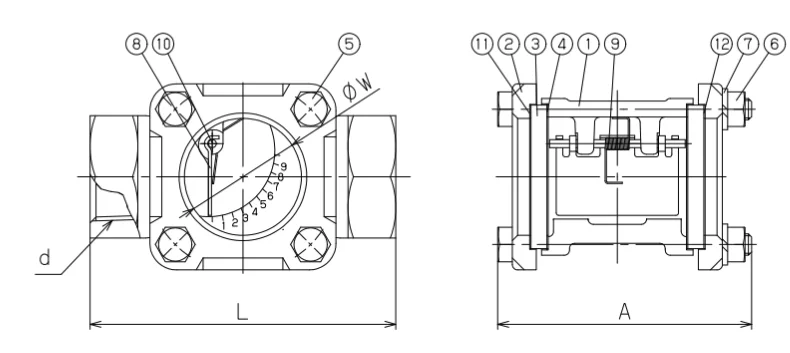

Size | L | A | W | Weight (kg) |
---|---|---|---|---|
1/2" | 80 | 79 | 35 | 0.7 |
3/4" | 90 | 79 | 35 | 0.8 |
1" | 115 | 100.5 | 44 | 1.4 |
1-1/4" | 127 | 115.5 | 57 | 2.5 |
1-1/2" | 140 | 115.5 | 57 | 2.8 |
2" | 162 | 147 | 73 | 5.4 |
Number | Name | Material | Grade | Qty |
---|---|---|---|---|
1 | Body | Ductile cast iron | FCD450 | 1 |
2 | Cover | Ductile cast iron | FCD450 | 2 |
3 | Glass | Tempered glass | Tempered glass | 2 |
4 | Gasket | Non-asbestos | Non-asbestos | 2 |
5 | Bolt | Carbon Steel | SCM435 | 4 |
6 | Nut | Carbon Steel | S45C | 4 |
7 | Spring Washer | Carbon Steel | SWRH | 4 |
8 | Flap | Stainless Steel | SUS304 | 1 |
9 | Flap Spring | Stainless Steel | SUS304 | 1 |
10 | Spindle | Stainless Steel | SUS304 | 1 |
11 | Scale Plate | Aluminium | A1050 | 1 |
12 | Scale Plate | Aluminium | A1050 | 1 |
