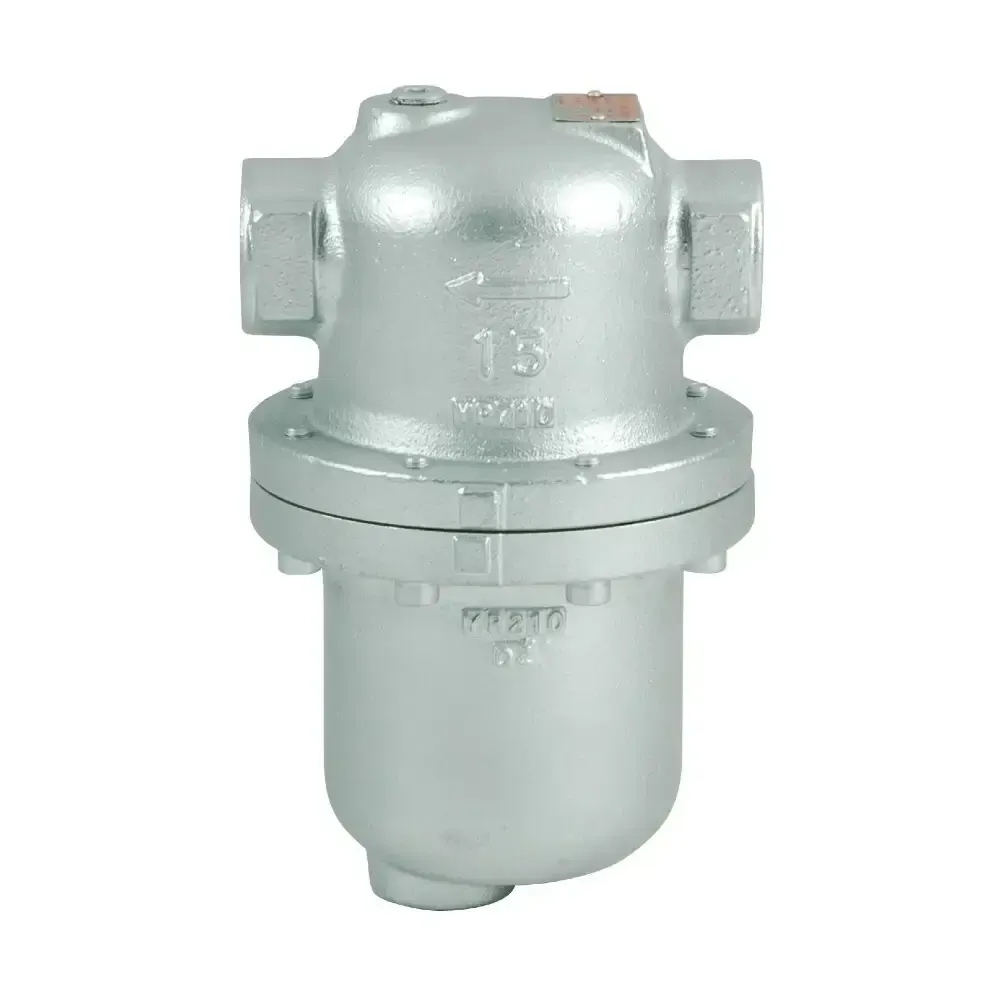

Ductile Iron Drain Seperator for Steam and Air

From $467.50

Inc GST
In Stock
Make an Enquiry
  • Seperate liquid from steam and air
  • Cyclone format maximizes liquid seperation efficiency
  • Pressure loss is extremely low
  • No moving parts| maintenance free| no breakdowns
Application Steam| Air
Pressure 0 to 20 Bar Steam| 0 to 10 Bar Air
Connection BSPT (ISO7.1 Rc)
Temperature o to 220°C
Body Ductile Iron
Nozzle Cast Iron
Receiver Ductile Iron

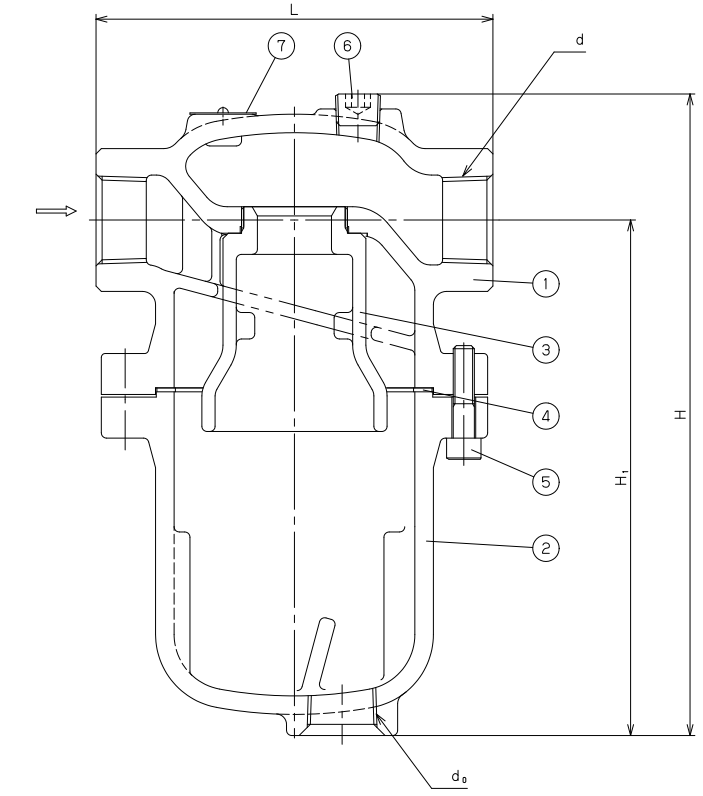

Ductile Iron Drain Seperator Dimensions

Size d L H1 H d0 Kg
15 1/2" BSPT 150 193 243 3/4" BSPT 7.1
20 3/4" BSPT 150 193 243 3/4" BSPT 7.1
25 1" BSPT 150 193 243 3/4" BSPT 7.3
32 1 1/4" BSPT 190 213 282 1" BSPT 12.5
40 1 1/2" BSPT 190 213 282 1" BSPT 12.5
50 2" BSPT 219 260 342 1" BSPT 20.5

All dimensions in mm unless shown otherwise.

Ductile Iron Drain Seperator Dimensions

Number Part Material Grade
1 Body Ductile Iron FCD450
2 Receiver Ductile Iron FCD450
3 Nozzle Cast Iron FCD200
4 Gasket Non Asbestos Graphite
5 Bolt Carbon Steel SCM435
6 Plug Carbon Steel S45C
7 Name Plate Stainless Steel SUS304

Size 1" to 2" BSPT
Body Ductile Iron
Pressure Range 0 to 20 BAR
Temperature 0 to 220°C

.
.
