Features:
Size 1/2" to 2" NPT
Body Forged Steel
Seat Deposited 13Cr
Pressure Range 0 to 150 BAR
Temperature 20°C to 180°C

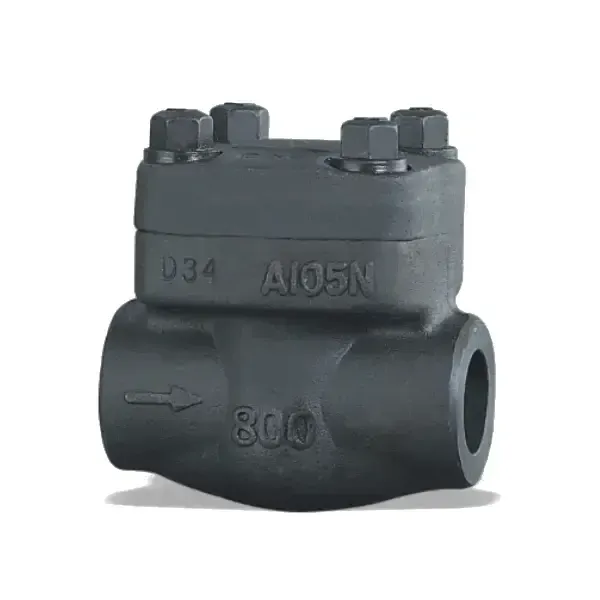

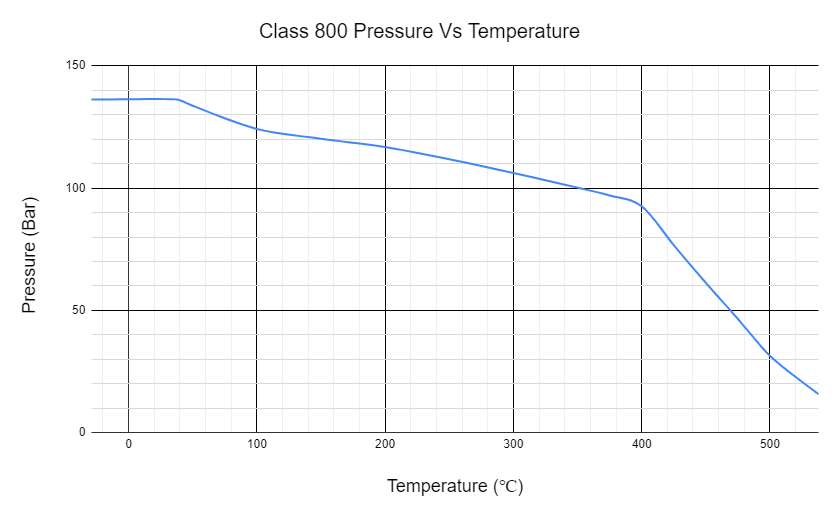

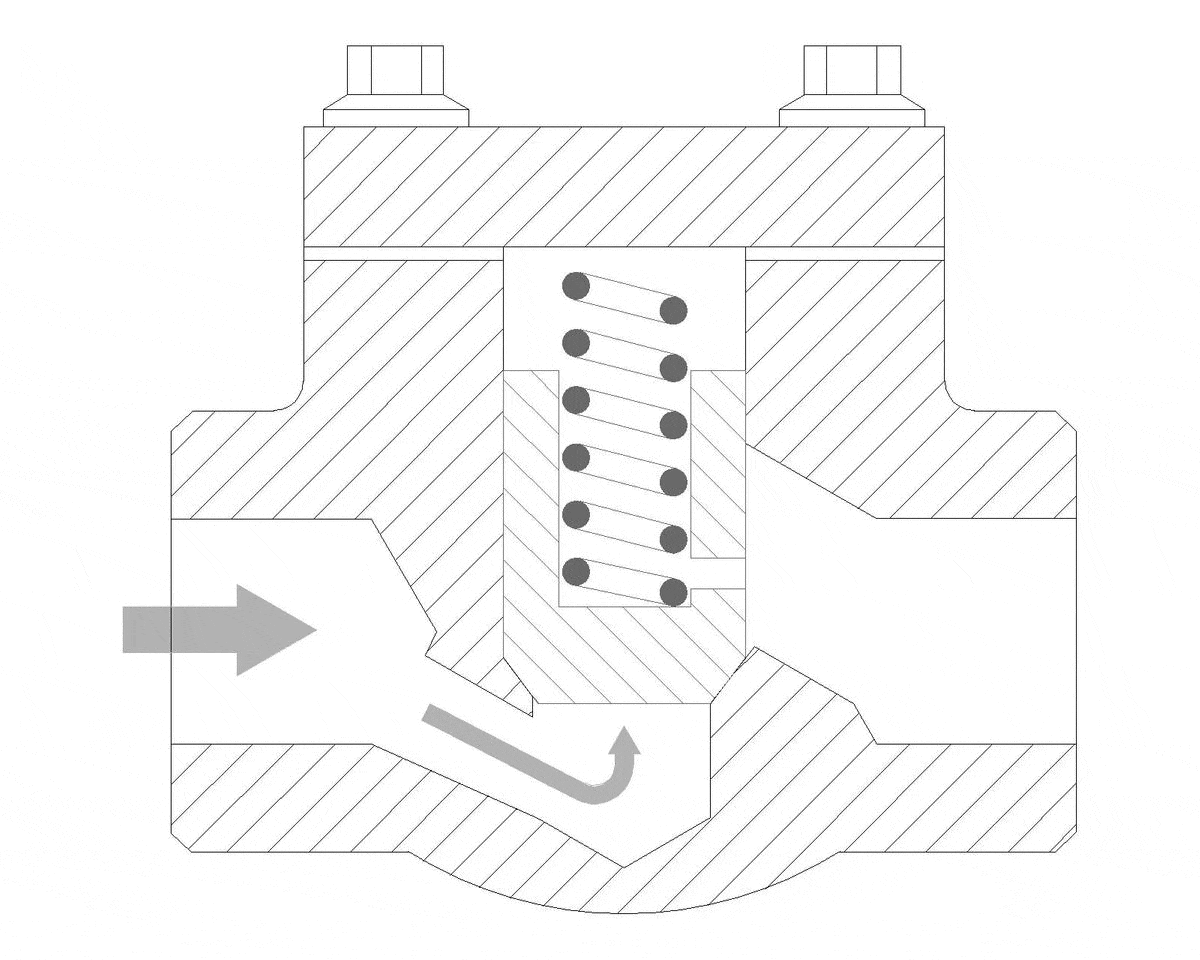

Robust Class 800 A105 Forged Steel Piston Check valve from 1/2" to 2" NPT. Suitable for pressures up to 136 Bar depending upon temperature (see chart below) and media type. Suitable for use across Petrochemical, Steam, Mining and Industrial applications. Designed to API602 with NPT ends to ASME B1.20.1 and tested to API598.
Model | Size (NPT) | Design Pressure | Media Temperature | Weight (kg) |
---|---|---|---|---|
PCF8-04 | 1/2" | 13.62 MPa @ -29°C ~ 35°C | 454°C @ 5.5 MPa | 1.5 |
PCF8-05 | 3/4" | 1.7 | ||
PCF8-06 | 1" | 3.3 | ||
PCF8-07 | 1 1/4" | 4.2 | ||
PCF8-08 | 1 1/2" | 4.5 | ||
PCF8-09 | 2" | 8.5 |

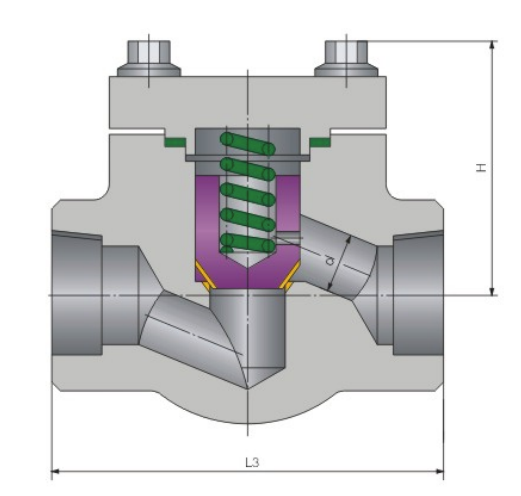

Model | Size (NPT) | L | H | d |
---|---|---|---|---|
PCF8-04 | 1/2" | 79 | 61 | 9 |
PCF8-05 | 3/4" | 92 | 61 | 13 |
PCF8-06 | 1" | 111 | 78 | 17.5 |
PCF8-07 | 1 1/4" | 120 | 84 | 23 |
PCF8-08 | 1 1/2" | 152 | 84 | 30 |
PCF8-09 | 2" | 172 | 118 | 35 |
All sizes are in mm unless shown otherwise.

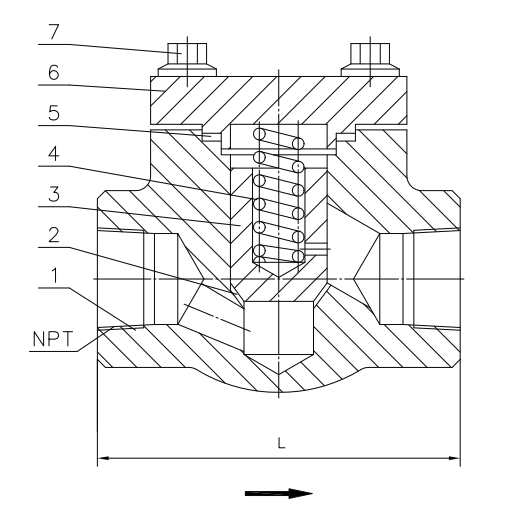

Number | Part Name | Material |
---|---|---|
1 | Body | ASTM A105 |
2 | Seat | Deposited 13Cr |
3 | Disc | ASTM A276-420 |
4 | Spring | SS304 |
5 | Gasket | Flexible Graphite/304 |
6 | Bonnet | ASTM A105 |
7 | Bonnet Bolt | ASTM A193 Gr.B7 |
