Features:
Size 15mm to 100mm
Maximum Working Pressure 150PSI
Temperature 225°C

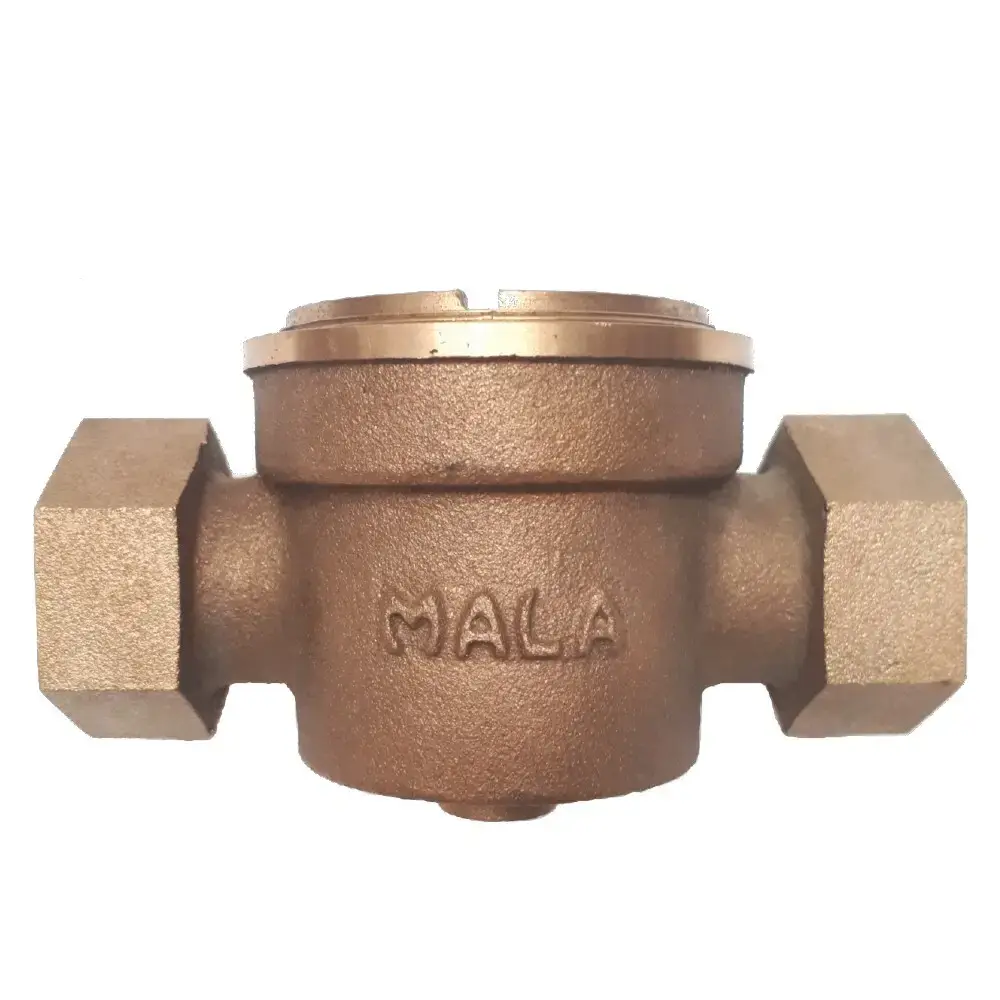

Bronze sight glass with indicator, toughened glass, screwed female BSPT ends.
* Max Steam Working Pressure - 10.5kg/cm2 (150PSI)
* Maximum Permissible Temp - 225°C
* Hydraulic Test Pressure - 21.1 kg/cm2 (300PSI)
Dimensions | ||||
---|---|---|---|---|
Nominal Size | Thread Size | Face To Face | Height | |
Inch | MM | |||
1/2" | 15 | 1/2" BSP | 105 | 61 |
3/4" | 20 | 3/4" BSP | 105 | 61 |
1" | 25 | 1" BSP | 140 | 72 |
1-1/4" | 32 | 1-1/4" BSP | 155 | 84 |
1-1/2" | 40 | 1-1/2" BSP | 165 | 96 |
2" | 50 | 2" BSP | 180 | 110 |
Material | ||
---|---|---|
Name of Part | Material | Specification |
Body | Bronze / Gun Metal | IS: 318 LTB2 |
Cover | Bronze / Gun Metal | IS: 318 LTB2 |
Indicator | Bronze / Gun Metal | IS: 318 LTB2 |
Glass | Toughened Glass | BS: 3463 |
Gasket | NAB |
