Features:
Size 50mm to 150mm
Body Carbon Steel (WCB)
Seat 13Cr reinforced steel
Pressure 50 Bar @ ambient
Operation Handwheel rising stem

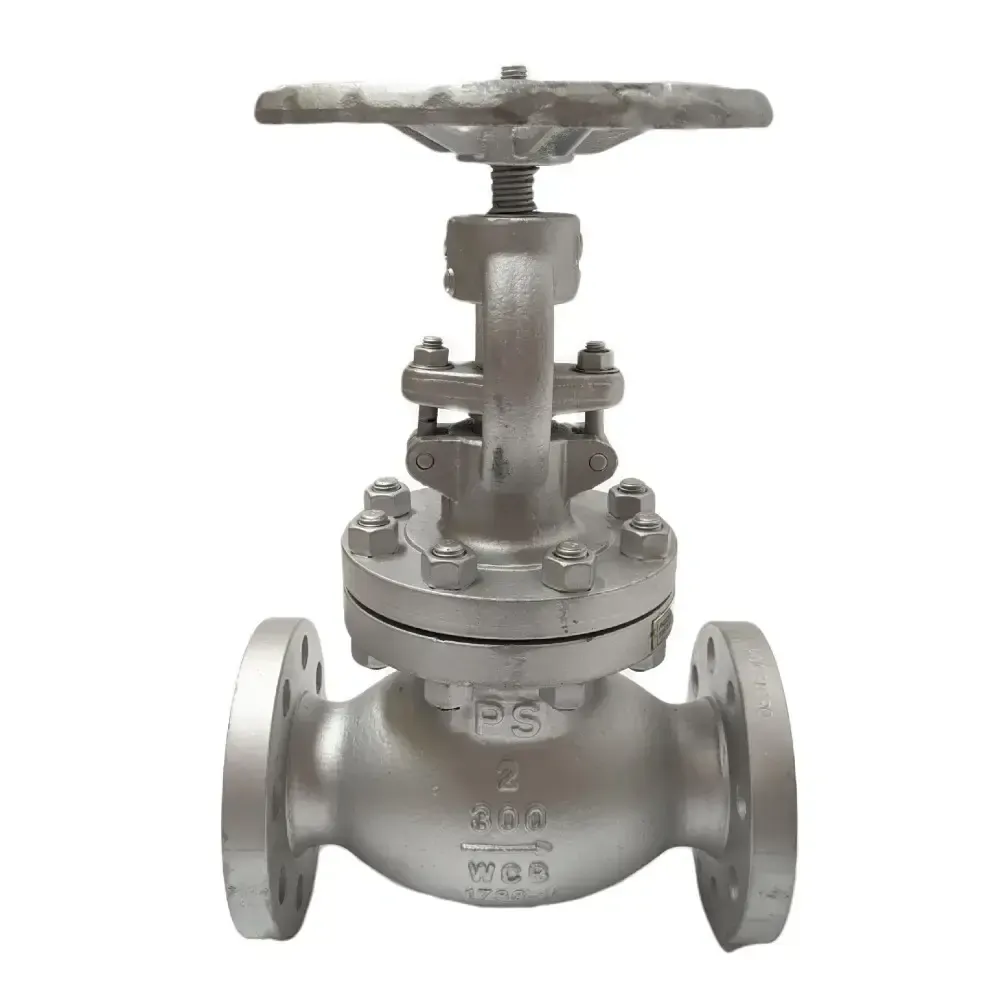

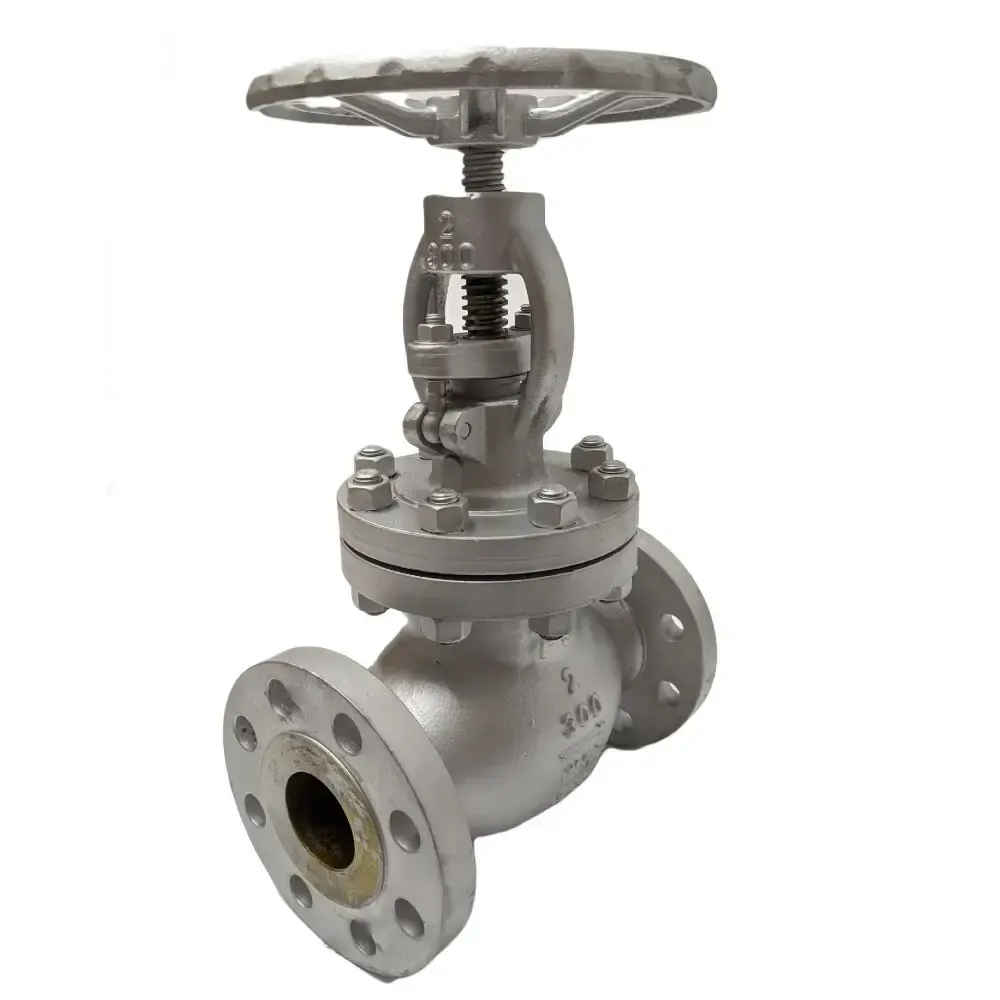

Carbon Steel ANSI 300 Flanged Globe Valve with metal seat. Designed and manufactured to BS 1873, Face to Face to ASME B16.10 with flanges to ASME B16.5, Tested by EN 12266-1. Stainless Steel reinforced graphite gasket and flexible graphite packing. 13CR reinforced seats and disc for greater durability and wear. Great for steam and high temperature applications. Globe Valves are also regularly used over gate valves or other manual control valves where the user wants to achieve a greater degree of flow control. As the shaft comes down it has a 'globe shape' on the bottom of it which slowly cuts down the flow before shutting off on the seat. All globe valves come with cast heat numbers to give quality assurance for testing and mil certificates.
Model | DN | Pressure Range (at Ambient Temp) | Media Temp | Weight (kg) |
---|---|---|---|---|
GLOW3-050 | 50 | 0 to 50 Bar | 315°C at 38 Bar | 25 |
GLOW3-065 | 65 | 0 to 50 Bar | 315°C at 38 Bar | 32 |
GLOW3-080 | 80 | 0 to 50 Bar | 315°C at 38 Bar | 38 |
GLOW3-100 | 100 | 0 to 50 Bar | 315°C at 38 Bar | 56 |
GLOW3-150 | 150 | 0 to 50 Bar | 315°C at 38 Bar | 96 |

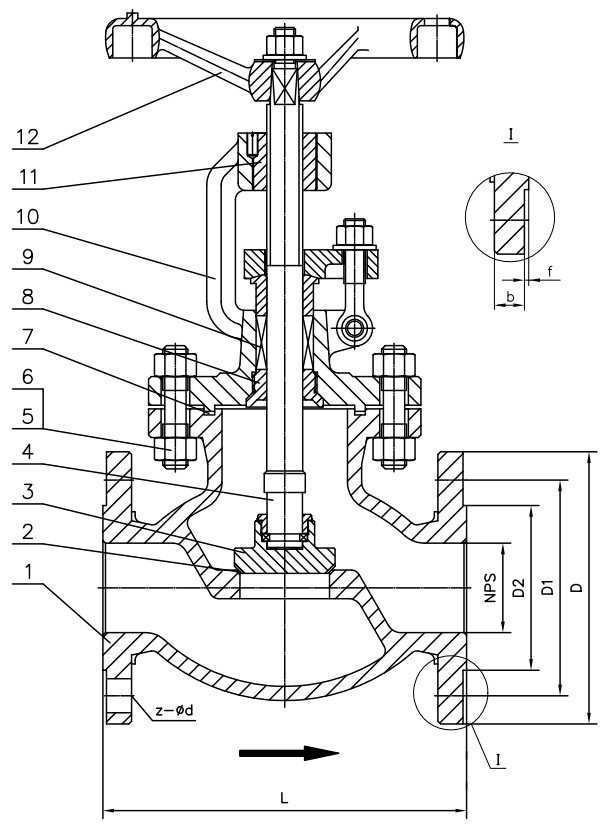

Model | NPS | L | D | D1 | D2 | b | f | z-⌀d |
---|---|---|---|---|---|---|---|---|
GLOW3-050 | 2" | 267 | 165 | 127 | 92.1 | 20.7 | 2 | 8-19 |
GLOW3-065 | 2-1/2" | 292 | 190 | 149.2 | 104.8 | 23.9 | 2 | 8-22 |
GLOW3-080 | 3" | 318 | 210 | 168.3 | 127 | 27 | 2 | 8-22 |
GLOW3-100 | 4" | 356 | 255 | 200 | 157.2 | 30.2 | 2 | 8-22 |
GLOW3-150 | 6" | 444 | 320 | 269.9 | 215.9 | 35 | 2 | 12-22 |
All dimensions in mm unless specified
No | Part Name | Material |
---|---|---|
1 | Body | ASTM A216-WCB |
2 | Seat | Deposited 13Cr |
3 | Disc | ASTM A105 deposited 13Cr |
4 | Stem | ASTM A182-F6a |
5 | Bonnet Bolt | ASTM A193 Gr.B7 |
6 | Bonnet Bolt Nut | ASTM A194 Gr.2H |
7 | Gasket | Flexible Graphite/304 |
8 | Back Seat Bushing | ASTM A276-420 |
9 | Packing | Flexible Graphite |
10 | Bonnet | ASTM A216-WCB |
11 | Stem Nut | Copper Alloy |
12 | Handwheel | Cast Iron |
