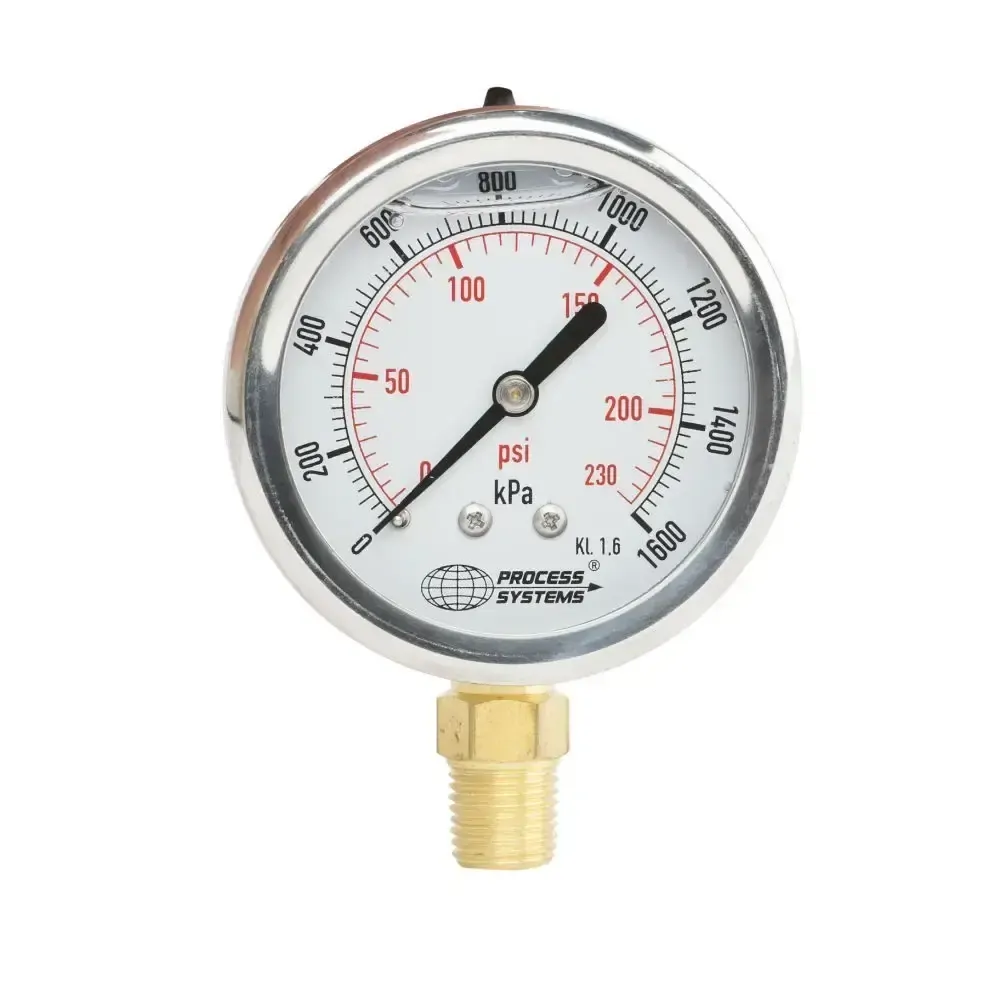

100mm Stainless Steel Liquid Filled Bottom Entry Pressure Gauge

From $55.00

Inc GST
In Stock
Make an Enquiry

Stainless Steel Case 100mm glycerine filled pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.6% of full scale. Operating temp of -20°C to 60°C. For use on compatable gases and liquids.

Model Range
GAU100B~100V -100 to 0 kpa vacuum (30" Hg)
GAU100B~100C -100 to 1600 kpa
GAU100B~100 0 to 100 kpa (0 to 15 PSI)
GAU100B~200 0 to 200 kpa (0 to 30 PSI)
GAU100B~400 0 to 400 kpa (0 to 60 PSI)
GAU100B~600 0 to 600 kpa (0 to 90 PSI)
GAU100B~800 0 to 800 kpa (0 to 110 PSI)
GAU100B~1000 0 to 1000 kpa (0 to 140 PSI)
GAU100B~1600 0 to 1600 kpa (0 to 230 PSI)
GAU100B~2500 0 to 2500 kpa (0 to 360 PSI)
GAU100B~4000 0 to 4000 kpa (0 to 580 PSI)


Size 100mm (4")
Accuracy =+/- 1.6%
Range Depends upon model
Work Pressure 3/4 of full scale
Fluctuating pressure 2/3 of full scale
Short Time Pressure Full Scale
Operating Temperature -10°C to 60°C
Media Compatible gases and liquids
Housing 304 Stainless Steel Case and crimped ring
Window Polycarbonate
Liquid Filled Glycerine
Bourdon Tube Copper alloy
Movement Copper alloy
Connection Brass
Thread BSPT
Scale Dual Scale kPa/PSI

100mm Bottom Entry Gauge

a b b1 b2 D1 D2 e f G SW
15.5 49.5 49.5 83 101 99 17.5 30 1/2" 22

All dimensions in mm unless shown otherwise.

100mm Bottom Entry Pressure Gauge Construction

Pressure Range -100 kpa to 4000 kpa
Body Stainless Steel
Function Dual Scale Kpa/PSI glycerine filled pressure gauge
Connection 3/8" BSP Bottom Entry
Factory Accredited CE, ISO 9001, TUV

GAU100B

100mm Stainless Steel Liquid Filled Bottom Entry Pressure Gauge

Features:

Pressure Range -100 kpa to 4000 kpa
Body Stainless Steel
Function Dual Scale Kpa/PSI glycerine filled pressure gauge
Connection 3/8" BSP Bottom Entry
Factory Accredited CE, ISO 9001, TUV

Description:

Stainless Steel Case 100mm glycerine filled pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.6% of full scale. Operating temp of -20°C to 60°C. For use on compatable gases and liquids.

Model Range
GAU100B~100V -100 to 0 kpa vacuum (30" Hg)
GAU100B~100C -100 to 1600 kpa
GAU100B~100 0 to 100 kpa (0 to 15 PSI)
GAU100B~200 0 to 200 kpa (0 to 30 PSI)
GAU100B~400 0 to 400 kpa (0 to 60 PSI)
GAU100B~600 0 to 600 kpa (0 to 90 PSI)
GAU100B~800 0 to 800 kpa (0 to 110 PSI)
GAU100B~1000 0 to 1000 kpa (0 to 140 PSI)
GAU100B~1600 0 to 1600 kpa (0 to 230 PSI)
GAU100B~2500 0 to 2500 kpa (0 to 360 PSI)
GAU100B~4000 0 to 4000 kpa (0 to 580 PSI)


Size 100mm (4")
Accuracy =+/- 1.6%
Range Depends upon model
Work Pressure 3/4 of full scale
Fluctuating pressure 2/3 of full scale
Short Time Pressure Full Scale
Operating Temperature -10°C to 60°C
Media Compatible gases and liquids
Housing 304 Stainless Steel Case and crimped ring
Window Polycarbonate
Liquid Filled Glycerine
Bourdon Tube Copper alloy
Movement Copper alloy
Connection Brass
Thread BSPT
Scale Dual Scale kPa/PSI
.

100mm Stainless Steel Liquid Filled Bottom Entry Pressure Gauge

GAU100B

Dimensions:

100mm Bottom Entry Gauge

a b b1 b2 D1 D2 e f G SW
15.5 49.5 49.5 83 101 99 17.5 30 1/2" 22

All dimensions in mm unless shown otherwise.

.

100mm Stainless Steel Liquid Filled Bottom Entry Pressure Gauge

GAU100B

Construction:

100mm Bottom Entry Pressure Gauge Construction
