SKU: GAU100RS

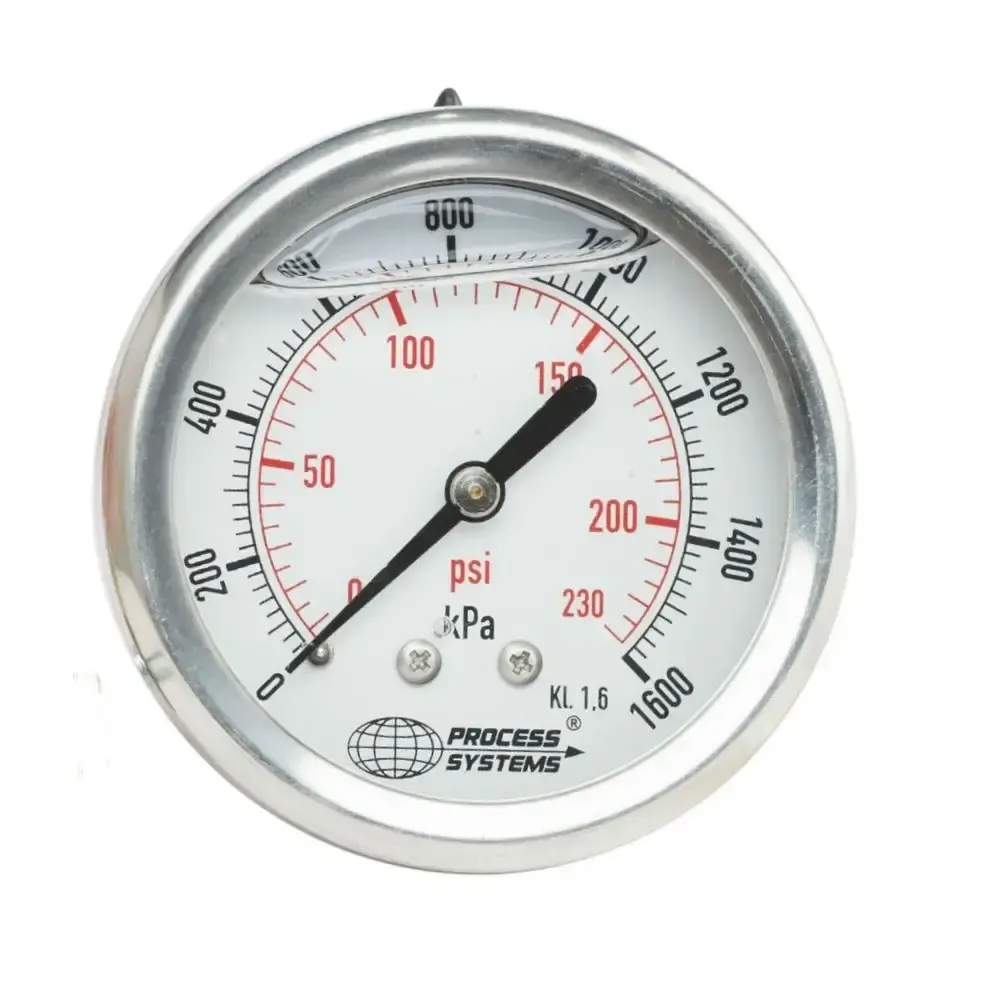

100mm Full Stainless Steel Liquid Filled Rear Entry Gauge

From $104.50

Inc GST
In Stock
Make an Enquiry

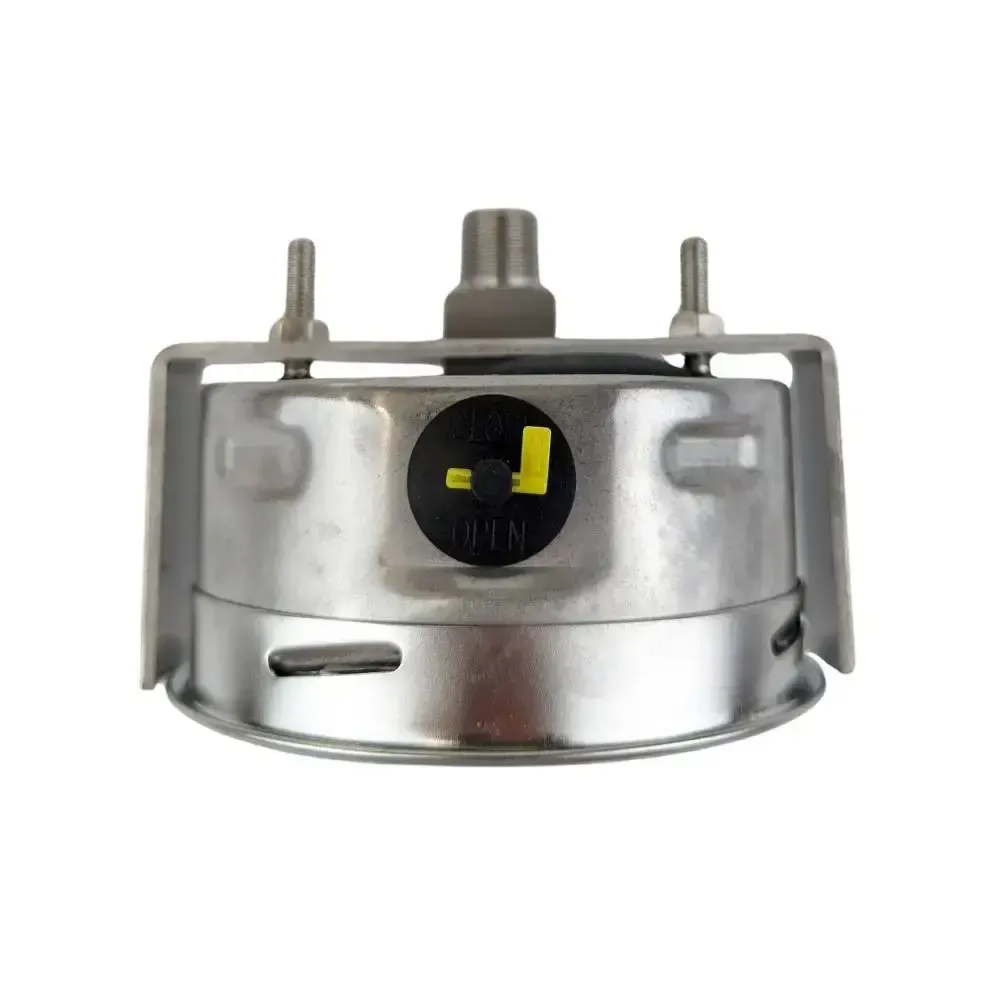

Full Stainless Steel 100mm glycerine filled pressure gauge with stainless steel internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.0% of full scale. Operating temp of -20°C to 60°C. For use on compatable gases and liquids. Comes with removeable panel mount bracket to give panel mounting option.

Model Range
GAU100RS~1000 0 to 1000 kpa (0 to 140 PSI)
GAU100RS~1600 0 to 1600 kpa (0 to 230 PSI)

Size 100mm (4")
Accuracy +/- 1.0%
Range Depends upon model
Work Pressure 3/4 of full scale
Fluctuating pressure 2/3 of full scale
Short Time Pressure Full Scale
Operating Temperature -10°C to 60°C
Media Compatible gases and liquids
Housing 316 Stainless Steel Case with Bayonnet Bezel
Window Polycarbonate
Liquid Filled Glycerine
Bourdon Tube 316 Stainless Steel
Movement 316 Stainless Steel
Connection 316 Stainless Steel
Thread 3/8" BSPT
Scale Dual Scale Kpa/Psi

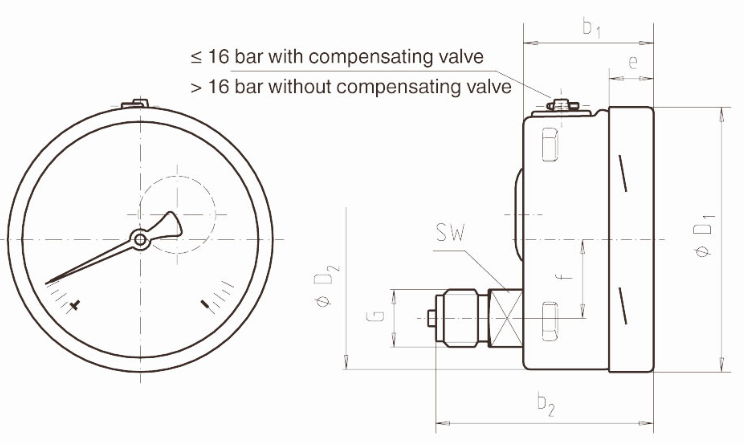

100mm Full Stainless Steel Back Mount Pressure Gauge

a b b1 b2 D1 D2 e f G SW
15.5 49.5 49.5 83 101 99 17.5 30 1/2" 22

All dimensions in mm unless shown otherwise.

Pressure Range 0 kpa to 1600 kpa
Body 316 Stainless Steel
Function Dual Scale Kpa/PSI glycerine filled pressure gauge
Connection 3/8" BSPT Rear Entry
Factory Accredited CE, ISO 9001, TUV

.
.
