Visual Boiler Level Gauges – Understanding Types and Maintenance

When people are performing high-risk jobs, they must always be aware of safety issues; every second counts. Visual boiler level gauges are more than just indicators; they're an essential part of keeping the boiler safe and running efficiently, which helps prevent accidents from happening and reduces the potential for downtime. Operators need to understand these level gauges' capabilities and maintenance requirements because the ability to visually monitor steam boiler water levels can be the difference between a safe successful operation and failure.

This article will cover the three most common but important gauge glass types and the essential maintenance steps.

About Visual Boiler Level Gauges

Visual boiler level gauges provide real-time insights into your steam boiler's water level. When these level gauges are installed and maintained correctly they offer precise, instant water level information so the boiler operator can maintain optimal boiler performance. At a glance, potential low water and high water levels can be identified, often prior to any electronic alarm function being realised.

Identifying a low water level event is particularly important, as it can result in boiler tube damage from overheating and potentially a catastrophic boiler failure.

As you read through, you will understand how visual boiler level gauges can transform your boiler management practices and why choosing the right level gauges provider like Hawleys - Engineering Solutions is crucial for your success.

Understanding Boiler Level Gauges

Boiler level gauges are essential tools that let you visually monitor the water level inside your boiler. When looking at the sight glass, you can see the water level in the boiler at any given time. The working principle of sight glass is relatively simple. It uses a principle of water displacement, where the water level in the sight glass changes as the water level in the boiler changes. Simple yet important, for a quick understanding of what is going on inside the steam boiler to help maintain the boiler operation within the correct design range.

Safety of the Systems and Visual Gauges

Accurate monitoring of your steam boiler's water levels is a critical safety measure. It can prevent boiler downtime, damage or even total catastrophic system failure. A steam boiler is a high-temperature, high-pressure vessel, where negligence can result in an explosion and may cause damage to property and in the worst case, loss of life.

As an example, if the water level drops too low, the boiler may overheat, leading to severe damage, such as cracked pressure vessels or ruptured tubes. As a result of this overheating the boiler’s metal components can weaken, warp, or even melt. If this happens, it will eventually result in leaks, explosions, or complete system shutdowns.

Conversely, excessively high water levels can lead to water carryover into the steam lines. It can cause water hammer that can result in noise and damage to the steam piping system and connected equipment.

After becoming aware of all of this, you might consider that you need to keep the boiler levels within safe operating limits. Utilising reliable boiler level gauges will assist with the successful operation of the boiler. The gauges provide the necessary visual information to help prevent both low-water and overfill scenarios.

There are a number of different types of Steam Boiler Level Gauges each with its own unique features and benefits, understanding which level gauge type will work best with your boiler now becomes relevant.

In the upcoming section, you can learn about different boiler level gauges and their fundamental safety features to reduce risks and enhance operational stability.

Types of Boiler Level Gauges

As discussed, boiler level gauges play an essential role in maintaining accurate and safe boiler operation. However, the choice of gauge depends on the boiler’s operational parameters, such as the pressure and the temperature conditions.

Among the commonly used types are:

1. Borosilicate Round Glass-Tube Gauges
2. Reflex Level Gauge Glass
3. Transparent Level Gauge Glass

Each gauge type is engineered by Hawleys Engineering Solutions in accordance with all relevant standards and regulations.

Let us help you learn more about each type, including the technical specifications and fittings that can be used with them.

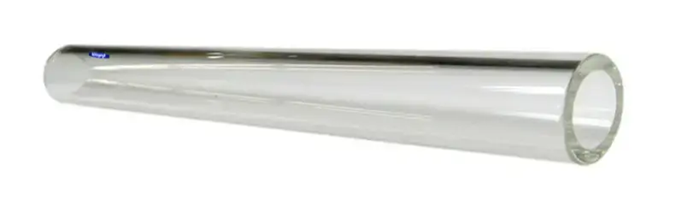

Borosilicate Round Glass-Tube Gauges

Compared to general glass, borosilicate glass is known for its exceptional thermal resistance, chemical stability, and mechanical strength. When used as a round glass tube gauge in boilers, it offers a clear and highly durable window into the boiler’s internal water level. Its material properties help it to withstand significant temperature and pressure fluctuations. This further ensures long-term, reliable service.

Key Features of Borosilicate Round Glass-Tube Gauges

The glass gauges made of borosilicate perform outstandingly in various demanding applications. Its high thermal shock resistance guarantees it can withstand sudden and extreme temperature fluctuations without compromising its structural integrity. In addition to this, it also boasts excellent chemical durability. The resistance to corrosion from steam and water minerals helps it maintain exceptional clarity for a long time before performing a cleaning action. Furthermore, the inherent transparency of borosilicate glass provides unobstructed visibility, allowing for direct visual confirmation of the water level at all times.

Specification	Details
Size	20mm or 25 mm Flanged
Mount	Top and Bottom
Orientation	Easily changeable to left or right
Suits	Borosilicate Gauge Glass
Body Material	Bronze or 316L Stainless Steel
Pressure	Depends upon the mount & glass
Temperature	0°C to 260°C depending on mount & glass

Common Applications

Borosilicate glass is particularly suited for lower pressure boilers which are most commonly used.

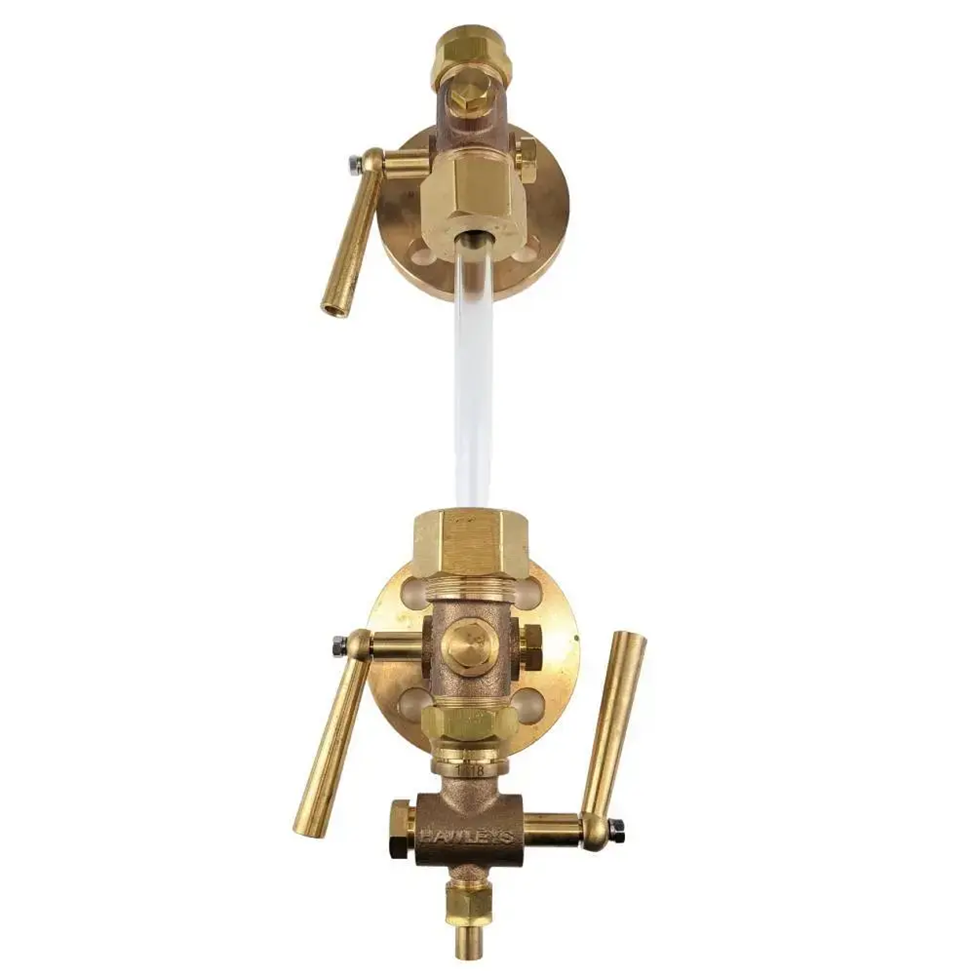

Compatible Fittings

When finding compatible fittings for borosilicate gauge glass installations, Hawleys Engineering Solution has designed and manufactured it to meet AS 1271-1997 section 5. This ensures adherence to recognised industry standards. These fittings incorporate a self-closing isolation ball valve, which limits water loss during a gauge glass rupture without fully isolating the gauge. This essential compliance feature enables proper blow-down procedures and meets the standard’s controlled seat engagement criteria.

Materials & Components

These mountings are constructed with either a robust bronze body or Stainless Steel and flanged connections to offer straightforward installation. The graphite packing sleeves and stainless-steel spindles provide reliable sealing and extended service life, while compatibility with AB12 Klinger spares streamlines the replacement process. The setup accommodates 3/4" outside diameter borosilicate gauge glass or smaller sizes with rubber cone adapters.

The gauge glass must be sourced and cut separately to the required length.

Maintenance & Versatility

Maintenance is simplified by the graphite packing sleeve’s quick renewal capability, eliminating the need to disassemble the gauge assembly fully. Additionally, the unit’s design facilitates interchangeable left & right and proper configurations by simply adjusting the position of tail nuts on the drain and top cap.

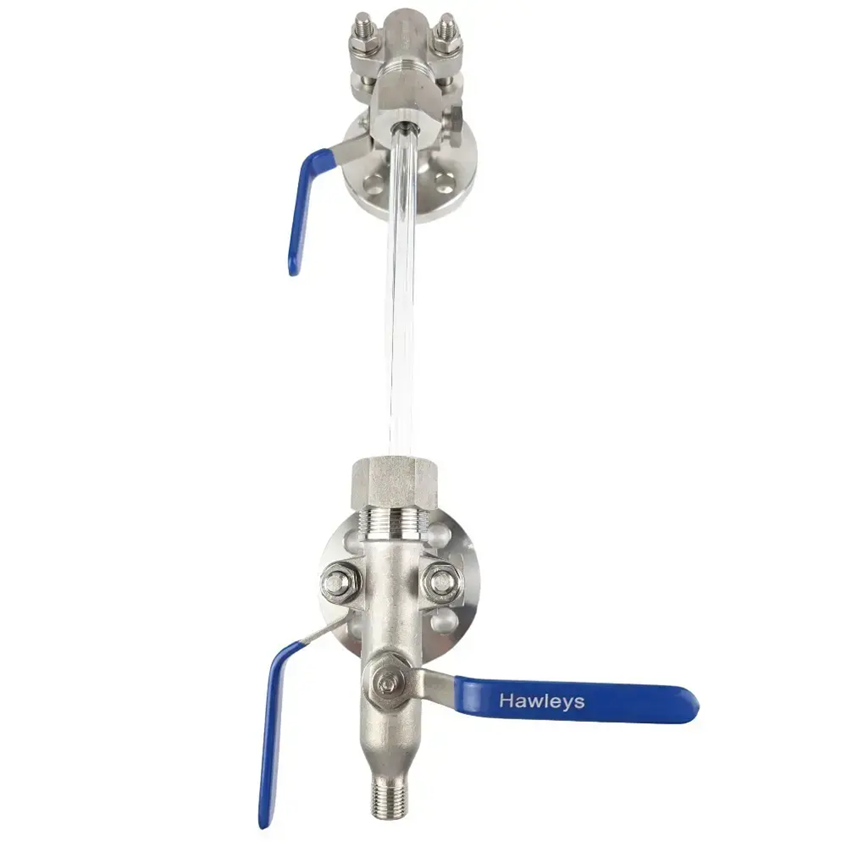

These flanged mount sets ensure a secure, durable, and maintenance-friendly setup for borosilicate round glass-tube gauges, ideal for boiler systems where longevity and reliability are paramount.

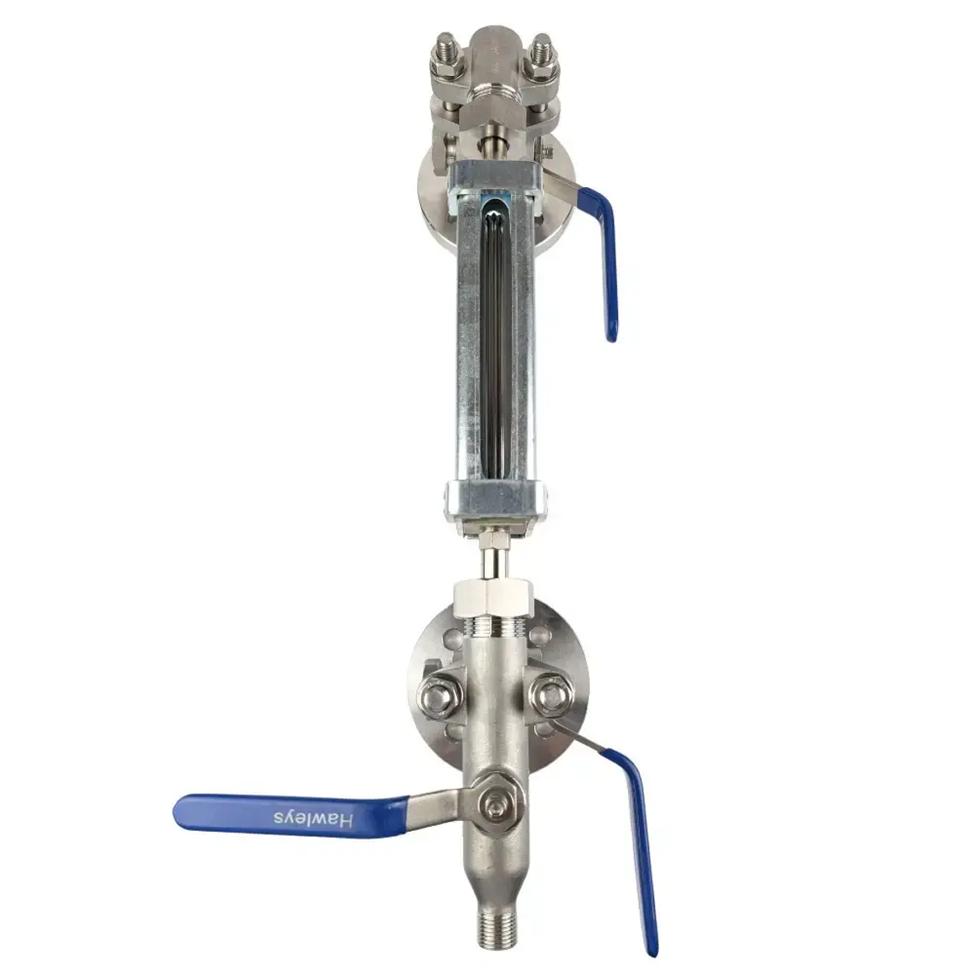

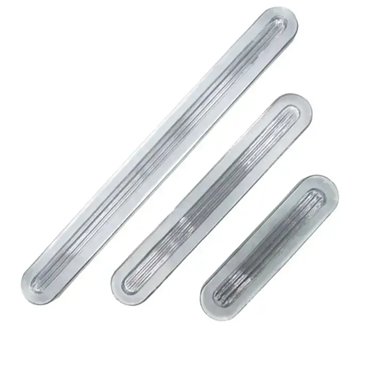

Reflex Level Gauge Glass

Reflex gauges are another type of glass gauge with a prism-like design to enhance the contrast between the liquid and the vapour spaces. It makes the water level appear darker (or more defined) against a lighter background. This unique optical property allows operators to distinguish liquid levels more efficiently without requiring an additional light source or colouring agent.

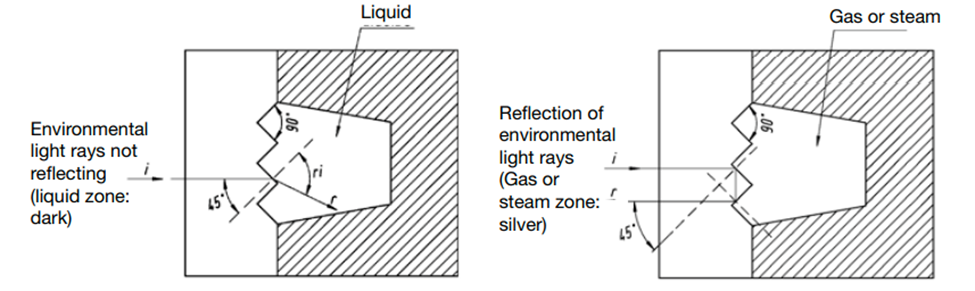

The following diagrams illustrate the refractive principles upon which these Reflex Level Gauges operate.

Key Features of Reflex Gauge Glasses

Reflex gauge glasses offer several key advantages over other glass gauges, making them an excellent choice for specific applications. Their enhanced readability, provided by a prism effect, dramatically improves the visibility of the liquid level. In addition, these gauges are typically engineered to handle higher pressures and temperatures than simple tubular glasses. It extends their suitability across a broader range of operating conditions. Furthermore, their flat profile and durable construction enhance longevity and simplify cleaning and maintenance.

Specification	Details
Size	25 mm Flanged
Mount	Top and Bottom
Orientation	Easily changeable to left or right
Suits	Reflex & Transparent
Body Material	316L Stainless Steel
Pressure	40 Bar
Temperature	0°C to 260°C

Common Applications of Reflex Gauge Glasses

Reflex gauge glasses are particularly well-suited for high-pressure industrial boilers, steam drums, and process vessels, where their enhanced readability and robust construction can withstand challenging operating conditions. They excel in environments where quick, error-free water level reading is critical.

There are specific applications where this style of gauge is not suitable, such as:

• Applications where the interface or the separation between the liquid and gas media needs to be observed.
• Applications where the colour of the liquid needs to be observed.
• Applications where the media is corrosive or a solvent.

For these applications, it is recommended to use a Transparent Level Gauge and, in the case of the corrosive or solvent media, a combination of a Transparent Level Gauge and a Mica Shield to protect the glass.

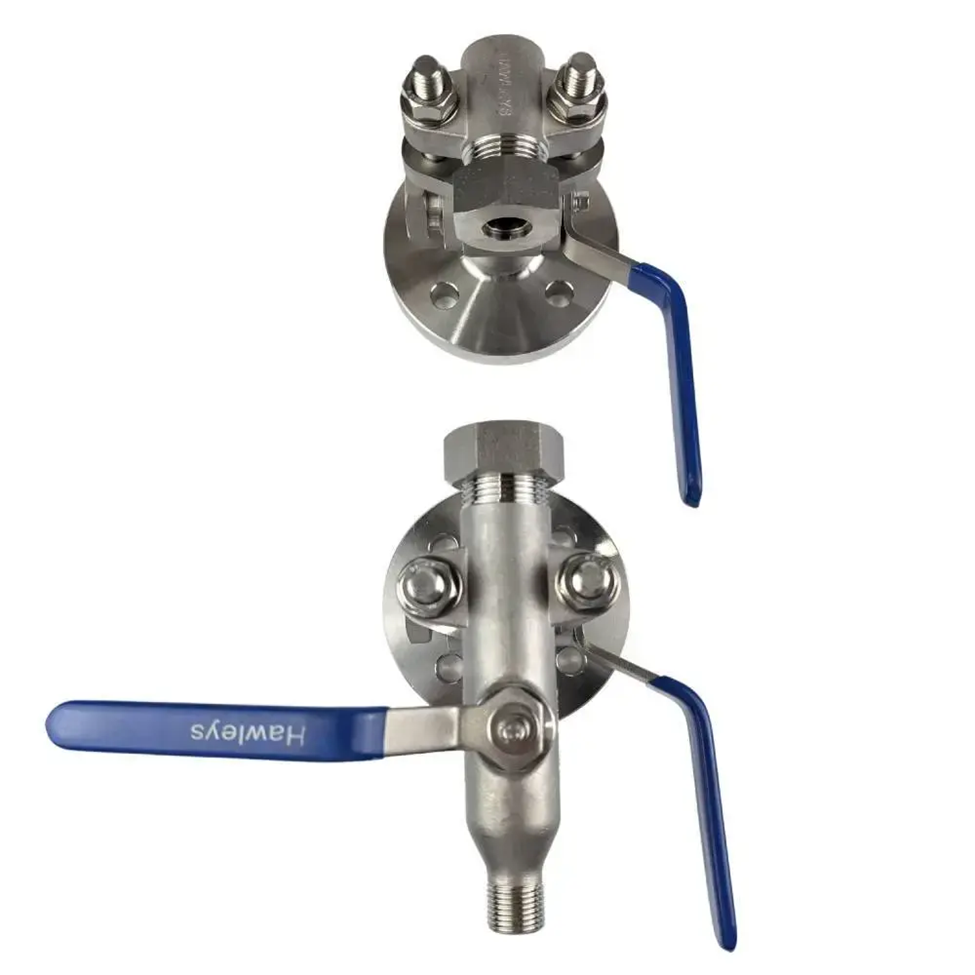

Compatible Fittings

Flanged 316L stainless steel gauge cocks are engineered to provide robust and reliable installation options for high-pressure reflex gauge assemblies. The low-carbon 316L stainless steel construction ensures exceptional corrosion resistance, while flanged ends offer a secure and easily managed fitting method.

Operation & Maintenance of the Mounting and Gauge

These gauge cocks operate with a simple 90-degree motion for immediate opening and closing, minimising complexity and ensuring uninterrupted service. Maintenance requirements are significantly reduced with minimal moving parts and easily replaceable packing sleeves, lowering both downtime and costs.

Interchangeability & Compatibility

Designed for versatility, the valves can be easily converted from right-hand to left-hand operation. Also, they are fully compatible with 16mm end tubes, which are common in high-pressure reflex gauge assemblies. With these stainless-steel gauge cocks, reflex gauges can be securely integrated into high-pressure boiler systems, ensuring quick shut-off capability and simplified maintenance.

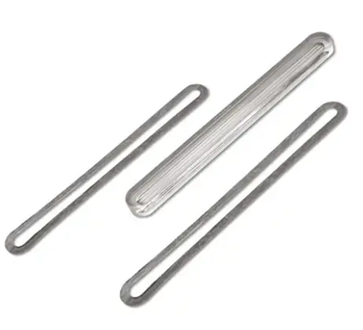

Transparent Level Gauge Glass

Unlike reflex glass, transparent gauge glass does not rely on prismatic effects. Instead, it provides a direct, clear view of both the water and the steam spaces. The liquid level is observed against the contrasting background using two transparent glass plates.

Key Features

Transparent flat glass level gauges directly visualise the water and steam phases. Operators can assess water quality at a glance by examining clarity, colour, and potential impurities. Their versatility is further enhanced when paired with an illuminator if the light conditions are poor. In addition, depending on the specific combination of glass and metal housing, they are suitable for numerous industrial applications.

Common Applications

Transparent flat glass level gauges are particularly valuable in high-purity boiler applications, where maintaining stringent water quality standards is paramount. By enabling close observation of both water and steam phases, they allow operators to accurately monitor clarity, colour, and impurities present in the system. As a result, these gauges also excel in scenarios where distinguishing and analysing both water and steam levels are essential.

Specification	Details
Size	25 mm Flanged
Mount	Top and Bottom
Orientation	Easily changeable to left or right
Body Material	316L Stainless Steel
Pressure	40 Bar
Temperature	0°C to 260°C

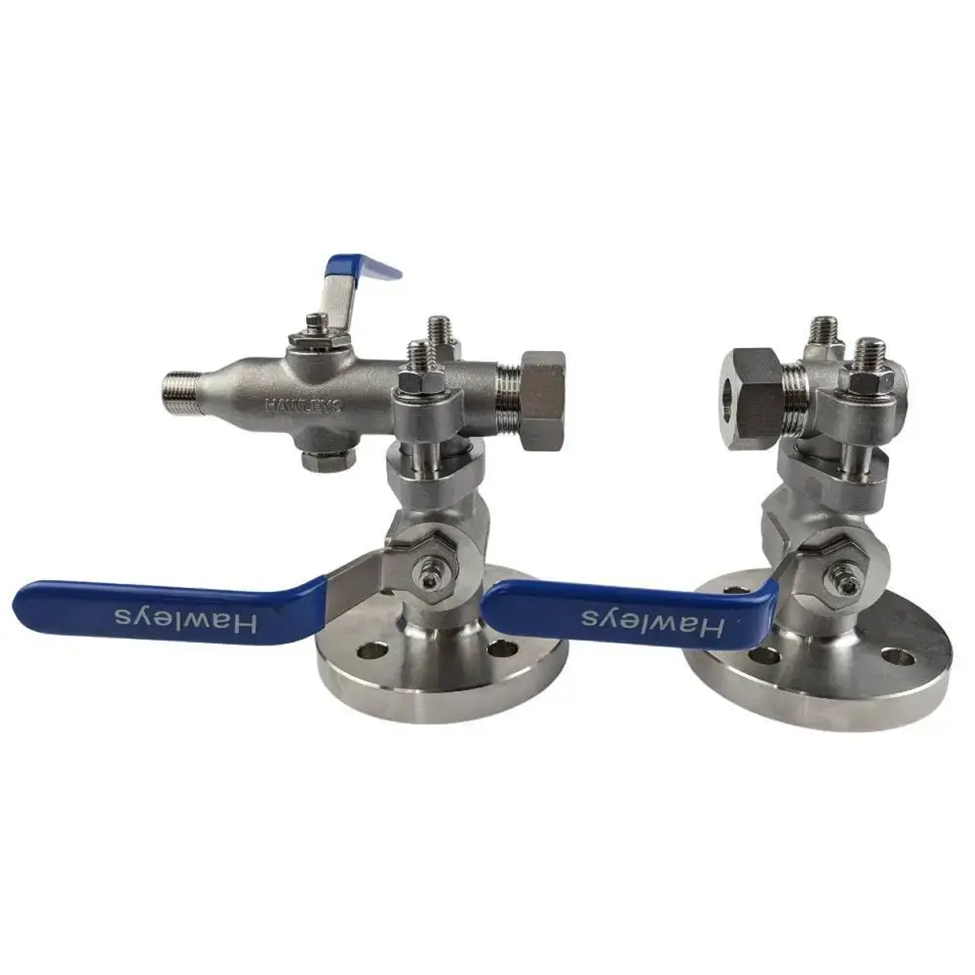

Compatible Fittings

Flanged 316L stainless steel gauge cocks designed for transparent gauges provide robust resistance to corrosion and scaling, ensuring reliable long-term performance. Their flanged construction offers a secure, leak-resistant mounting method on boilers, helping maintain system integrity under varying conditions.

Operation & Maintenance

With a straightforward 90-degree valve operation, these gauge cocks offer rapid response to any fluctuations in the system. Their maintenance is also simplified, as the only worn-out component is packing sleeves that can be easily replaced. These fittings help operators maintain a clear, unobstructed view of boiler water levels, which is crucial for applications where water clarity and interface observation are essential.

Maintenance of Glass Gauges

Industries must prioritise boiler operations' integrity. The routine inspection and maintenance of boiler-level gauge glasses are essential components of this maintenance. In this regard, the following details will explain the importance of consistent monitoring and timely replacement of gauge glasses to ensure a boiler's safe and efficient operation.

Daily Inspection is Essential

It is essential to check the gauge glasses daily while the boiler usually runs. Because these glass parts show you how much water is in the steam drum, they must be clear and solid. Your regular checks will help you find any flaws, like scratches, chips, or other damage that you can see that might make the gauge glass less useful.

The Importance of Clean Gauge Glasses

A clean and well-maintained gauge glass ensures accurate water level readings. Dirty or stained glasses can lead to false readings that can mislead operators about the water level. That is why regular cleaning is non-negotiable to maintain the integrity of the visual monitoring system.

Preventing Catastrophic Failures

Under the pressure of the boiler, damaged gauge glasses can become much weaker, which increases the chance of a catastrophic failure. It is essential to fix any damage immediately because even minor flaws can cause big problems. You should never try to use a boiler with broken gauge glass because not having a safe way to see how much water is actually in the boiler can be dangerous.

Effective Inspection Techniques

Put a light source in the back if you want to look at the gauge glass. This method can find flaws because any flaws will reflect the light and look different each time. This is very important; if you can't see the water level clearly, you must replace the glass immediately. Don't use existing glass again to ensure the highest level of safety and dependability.

Routine Maintenance and Record-Keeping

Implementing routine inspections and maintaining detailed records of the gauge glass's condition is a part of the preventive maintenance strategy. The record of replacement history can streamline maintenance schedules and allow you to make replacements before failures occur.

Safety Over Convenience

While replacing a faulty gauge glass may seem inconvenient, it is a small price to pay for the safety and reliability of boiler operations. Otherwise, operating without a clear visual indication of the water level increases the risk of severe accidents resulting in equipment damage and injury to personnel.

Reliable Solutions from Hawley’s Engineering

Hawley’s Engineering Solutions understands the critical nature of gauge glass maintenance. With ample stock of various types of gauge glass and the capability to cut them to size, they ensure that businesses and individuals have access to the right components for their specific boiler applications. Partnering with a reliable supplier like Hawley’s Engineering Solutions guarantees that your boiler maintenance needs are met with quality and precision.

Choosing the Right Level Gauge and Provider

Selecting the correct boiler level gauge and compatible fittings is critical to achieving a safe, efficient, and long-lasting boiler operation. Factors such as operating pressure, temperature ranges, desired visual clarity, and maintenance requirements all influence the ideal choice.

Moreover, working with a reputable solutions provider like Hawleys - Engineering Solutions ensures you have access to:

• Professional consultation to select the optimal gauge type for your specific boiler.
• Ensure that the products meet industry standards (e.g., AS 1271-1997) and safety regulations.
• Ready availability of packing sleeves, spindles, and glasses ensures that maintenance and repairs are simple and swift.
• Ability to tailor the gauge and fittings to your facility's unique requirements.

By understanding the different types of boiler level gauges, such as borosilicate round glass-tube gauges, reflex level gauges, and transparent level gauges, along with the technical details of their mounts, cocks, and fittings, you can make informed decisions. With the right equipment and reliable support, these visual indicators can become your most valuable ally in safely, efficiently, and cost-effectively managing boiler operations. Moreover, following the critical maintenance steps, you can ensure that your system operates within optimal and safe range.
